Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DG6500SE
- Rated Voltage:
- 120, 220V, 120/240V
- Rated Current:
- 12V/8.3A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50HZ/60HZ
- type:
- 5KVA diesel generator price
- structure:
- silent diesel generator
- color:
- optional
- phase:
- single
- noise:
- 68-72
- rated power:
- 5kva
- brand:
- Hiearns
- OEM:
- available
- Certificate:
- CE, ISO
- Warranty:
- 1 YEAR
Supply Ability
- Supply Ability:
- 100 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- carton with wooden plate
- Port
- FOB SHANHGAI
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 >50 Est. Time(days) 15 20 To be negotiated

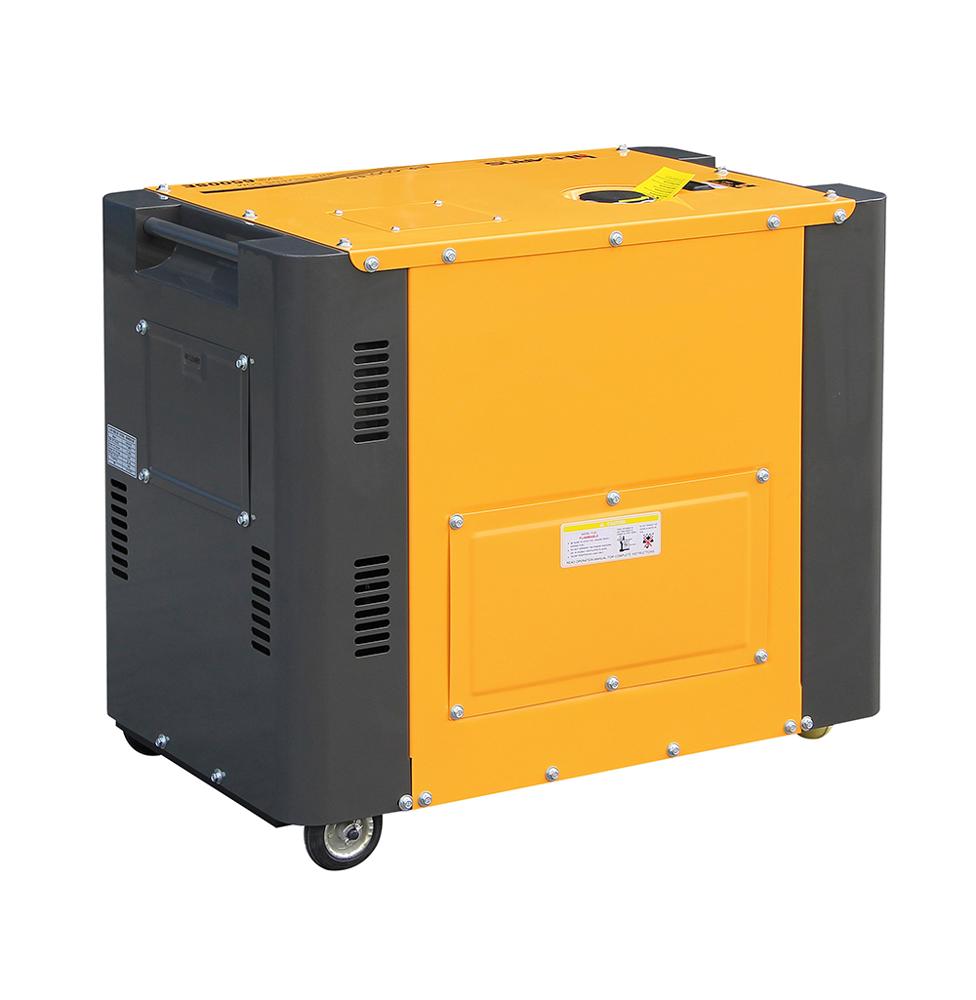

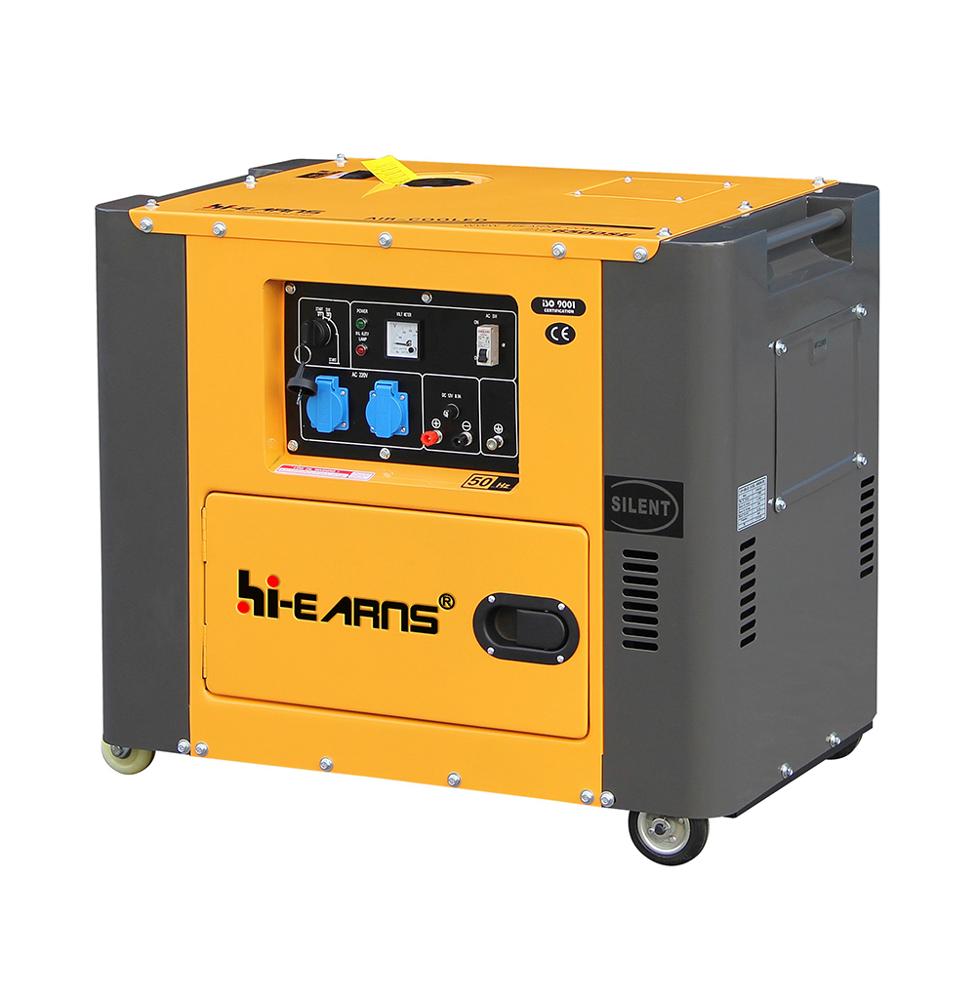

5KVA single cylinder silent diesel generator price DG6500SE
| GENERATOR | Model | DG6500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5.0 | 5.5 | |
| Rated output(kw) | 4.6 | 5.0 | |
| Rated. AC voltage(v) | 120, 220, 230, 240, 120/240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86× 72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 950× 560× 760 | |
| Net weight(kg) | 155 | ||
| 20FT | 72 | ||
diesel generator
