Home > Products > 40KVA water cooled popular three phase diesel generator

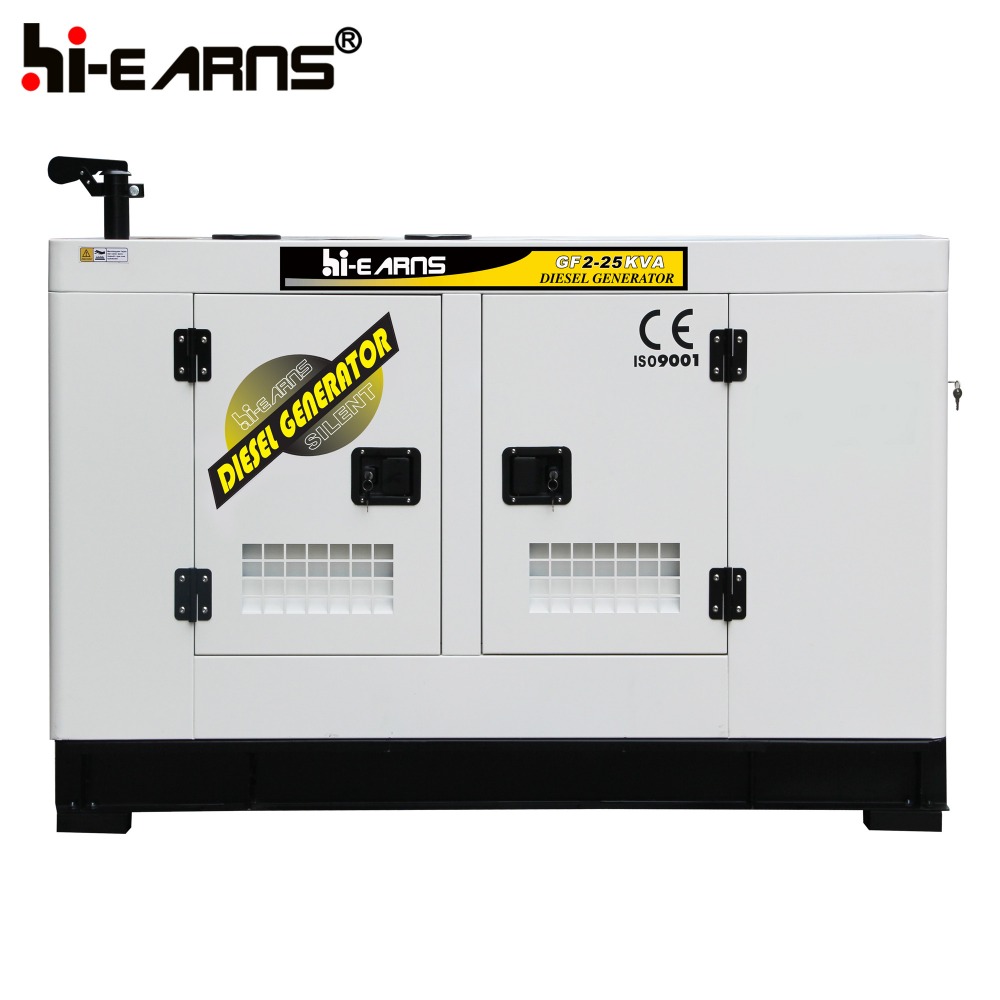

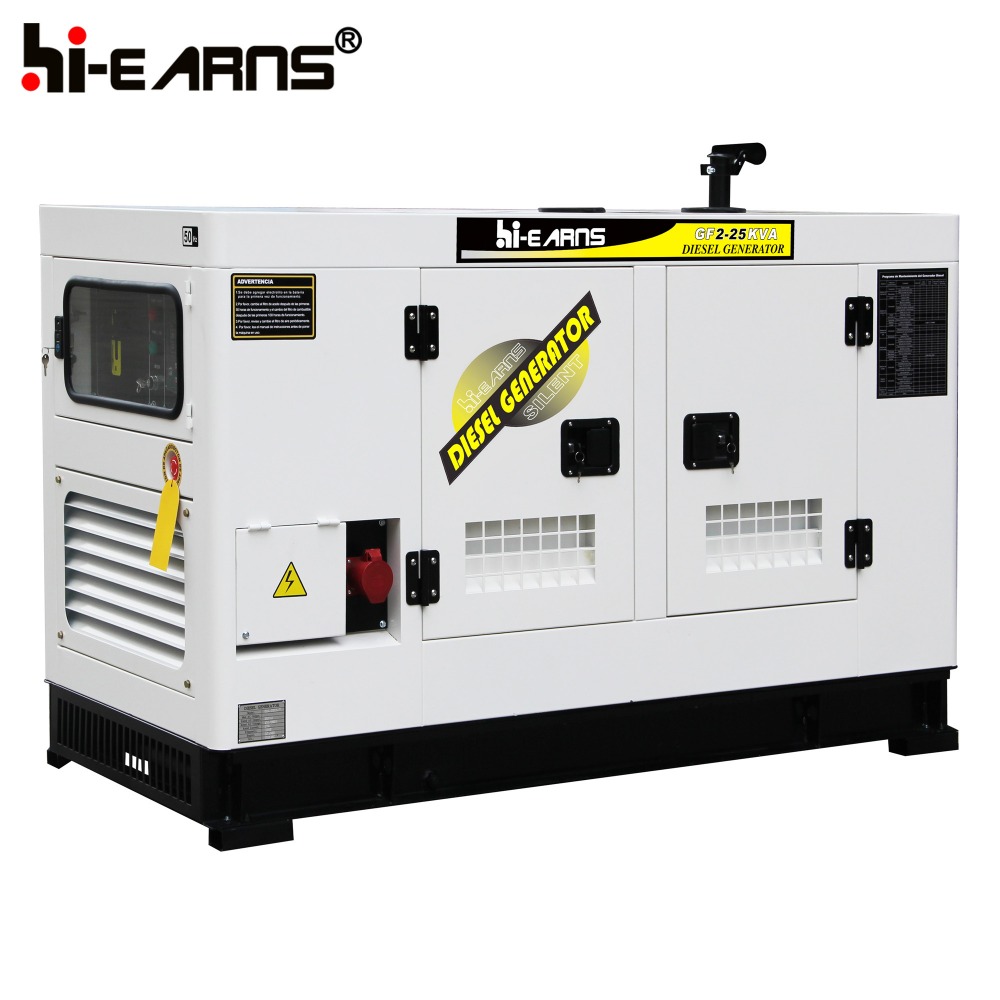

40KVA water cooled popular three phase diesel generator
Click on the image to view the original image
Product： views：640KVA water cooled popular three phase diesel generator
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:36
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF2-30KW
Rated Power:
40KVA
Output Type:
AC Three Phase
Rated Voltage:
220/380,230/400
Rated Current:
53A
Speed:
1500rpm/1800rpm
Frequency:
50hz/60hz
Canopy:
Silent canopy
Engine:
Quanchai engine
Alternator:
Stamford Brushless Alternator
Fuel tank:
Full bottom fuel tank
Certificate:
CE/ISO9001
Controller:
Smartgen
Warranty:
One Year
Control panel:
Digital panel
Cooling Type:
Water cooled
Color:
Yellow, white
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1.Packing way: Carton with plastic film.
2.Payment way: If less $10000, 100%T/T payment in advance.
If more $10000, 30% T/T deposit in advance, 70% T/T balance before shipment.
3.Producing day: 15-25days.
Port
Shanghai
Lead Time:
25days to 30days

40KVA diesel generator set



MODEL GF2 - 40KVA
Standby Power(50HZ )33KW / 41KVA
Prime Power(50HZ )30KW / 38KVA
ENGINE DATA
Manufacturer/Model:DCEC Cummins 4BT3.9-G1,4-cycle
Air Intake System:Turbo
Fuel System:A type fuel pump
Cylinder Arrangement:4 in line
Displacement:3.9L
Bore and Stroke: 102×120(mm)
Compression Ratio:16.5:1
Rated RPM:1500rpm
Max.Standby Power at Rated RPM:         40KW / 54.4HP
Governor Type:RSV Mechanical(Std) / Electronic(Optional)
Exhaust System
Exhaust Gas Flow:6.48m3/min
Exhaust Temperature:487°C
Max Back Pressure:10kPa
Air Intake System
Max Intake Restriction: 6.35kPa
Buring Capacity:2.69m3/min
Intake Flow:146m3/min
Fuel System
100%(Prime Power) Load:214 g/Kw.h
75%(Prime Power) Load:223 g/Kw.h
75%(Prime Power) Load:244 g/Kw.h
Oil System
Total Oil Capacity:11L
Oil Consumption:≤4g/kwh
Engine Oil Tank Capacity:9.5L
Oil Pressure at Rated RPM:345kPa
Cooling System
Total Coolant Capacity:21L
Thermostat:82-95°C
Max Water Temperature:104°C
Open Type Soundproof Type
Overall Size:1800(mm)×750(mm)×1400(mm)Overall Size:2270(mm)×1000(mm)×1450(mm)
Weight:893kgWeight:1350kg





Advantages

♦ Economic and practical products from hi-earns,reliable performance.

♦ Choose hi-earns,choose a rest assured.

♦ Advanced production lines and test rooms.

♦ Complete system of IQC.

♦ Perfect QCP.





IQC

♦ Strict spare parts IQC system,to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.
