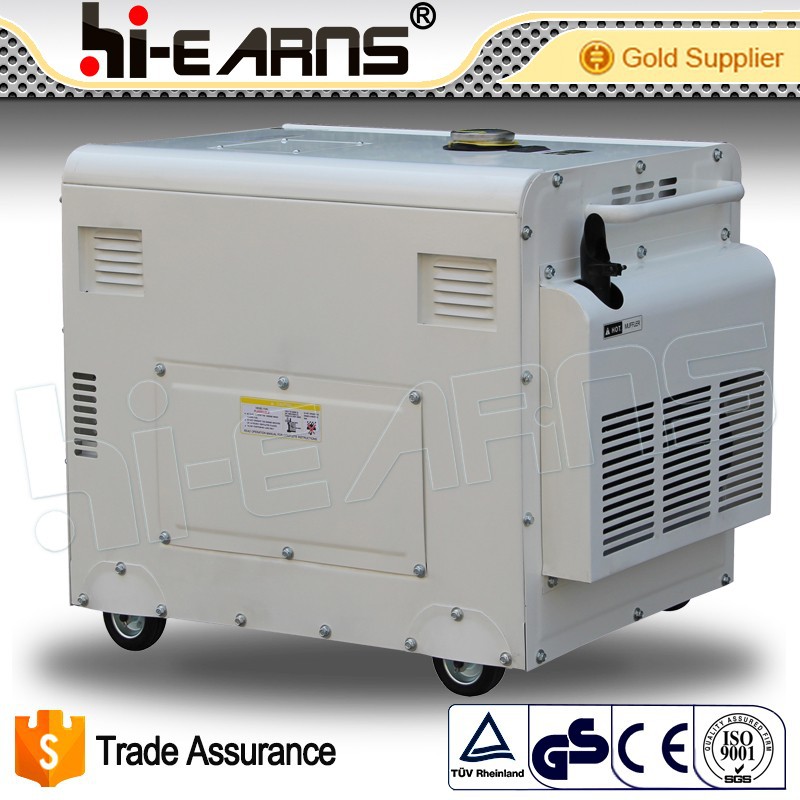

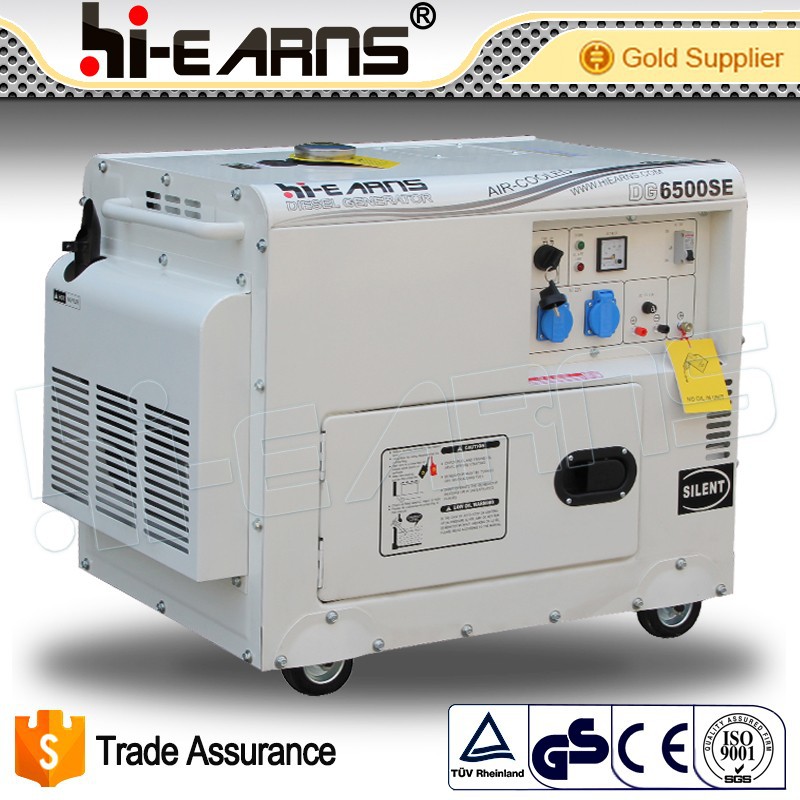

4.5kva single phase silent diesel generator for sale
DG6500SE model: With 10 HP HR186FA diesel engine and 100% copper alternator ensure a 4.6KW rated output, and 5KW max. output!
| GENERATOR | Model | DG6500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5 | 5.5 | |
| Rated output(kw) | 4.6 | 5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86× 72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 950× 560× 710 | |
| Net weight(kg) | 155 | ||
| 20FT | 72 | ||
♦ Strict and Accurate incoming raw material quality control systemd(IQC), ensure the engine running in the best condition.
♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;
♦ Flow card ro record each details carefully;
♦ From the engine to generator, we all use 7 layer corrugated carton packing, plywood pallet, Ensure a portable and safety transport!
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
