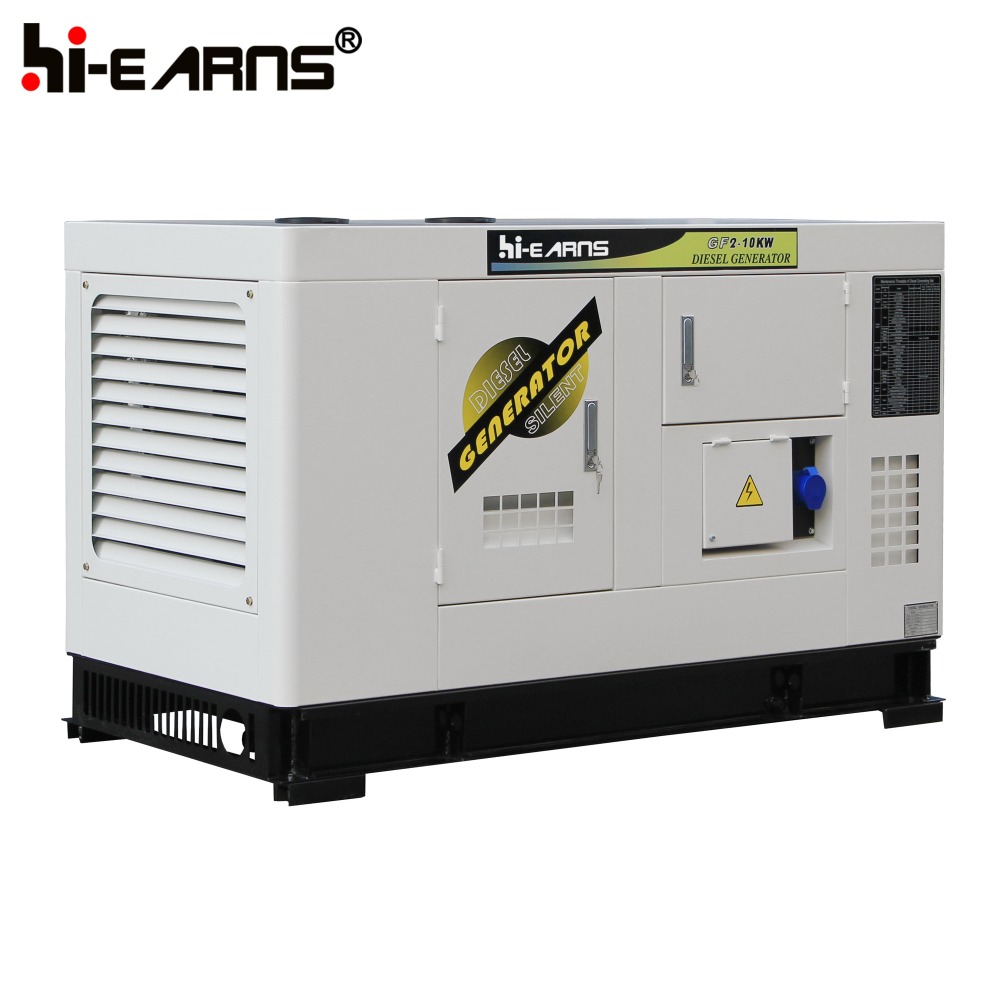

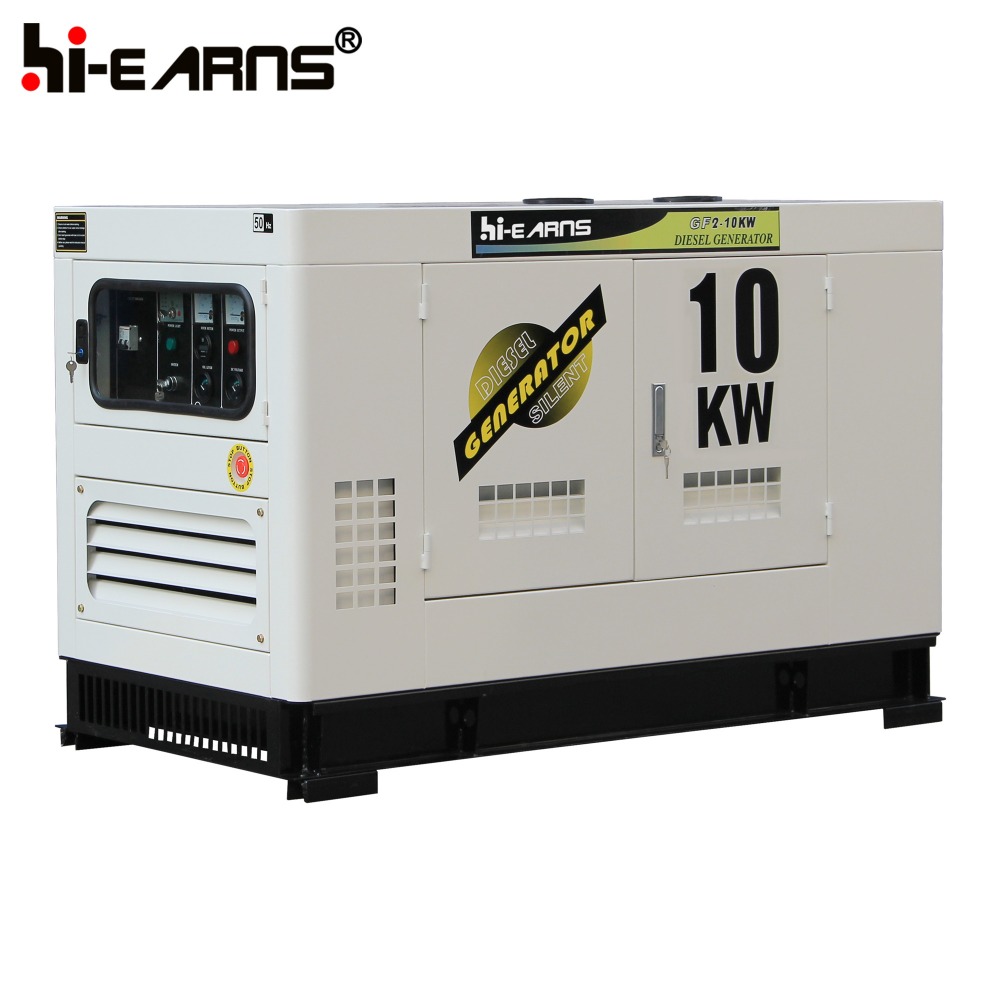

silent diesel generator set 10KW
| Standby Power | 11KW / 13.75KVA |
| Prime Power | 10KW / 12KVA |
| Model | QC480D |
| Cylinder Number | 3 |
| Bore×Stroke(mm) | 80×90 |
| Displacement(L) | 1.809 |
| Rated RPM(r/min) | 1500 |
| Rated Speed Regulation % | ≤5 |
| Rated Fuel Consumption(g/kW·h) | ≤249 |
| Cylinder Head Type | Dry type |
| Diesel Generator Type | Direct line,Water-cooled,Four stroke |
| Intake Type | Natually-Aspirated |
| Combustion Chamber Type | Direct Injection |
| Lubricating System | Pressure,Split,Complex |
| Flywheel Cover Specification | SAE4# |
| Flywheel Specification | SAE7.5″ |
| Exhaust Fan Diameter(mm) | φ410 |
| Flywheel Teeth Number | 115 |
| Add Oil Capacity | 4L |
| Voltage (V) | 380/220 |
| Frequency (HZ) | 50 |
| Insulation Class | S |
| Rated Current (A) | 19 |
| Phase | 3 |
| Altitude | ≤1000m |
| Power Factor | 0.8 |
| Voltage Regulation,Stead State | ≤±1% |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting |
| AVR | SX460 |
| Environment Temperature (°c) | 40 |
| Exciter Type | Brushless,self-exciting |
| Protection Grade | IP23 |
| Silent Type"s Dimension Length × Width × Height (mm) | 1800×850×1100 |
| Silent Type"s Net Weight(Kg) | 620 |
| Silent Type"s 20FT Loading Quantity | 12PCS |
♦ Economic and practical products from hi-earns,reliable performance.
♦ Choose hi-earns,choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system,to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packagine for products.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
