Home > Products > Water-cooled diesel generator Set(GF2-50KVA)

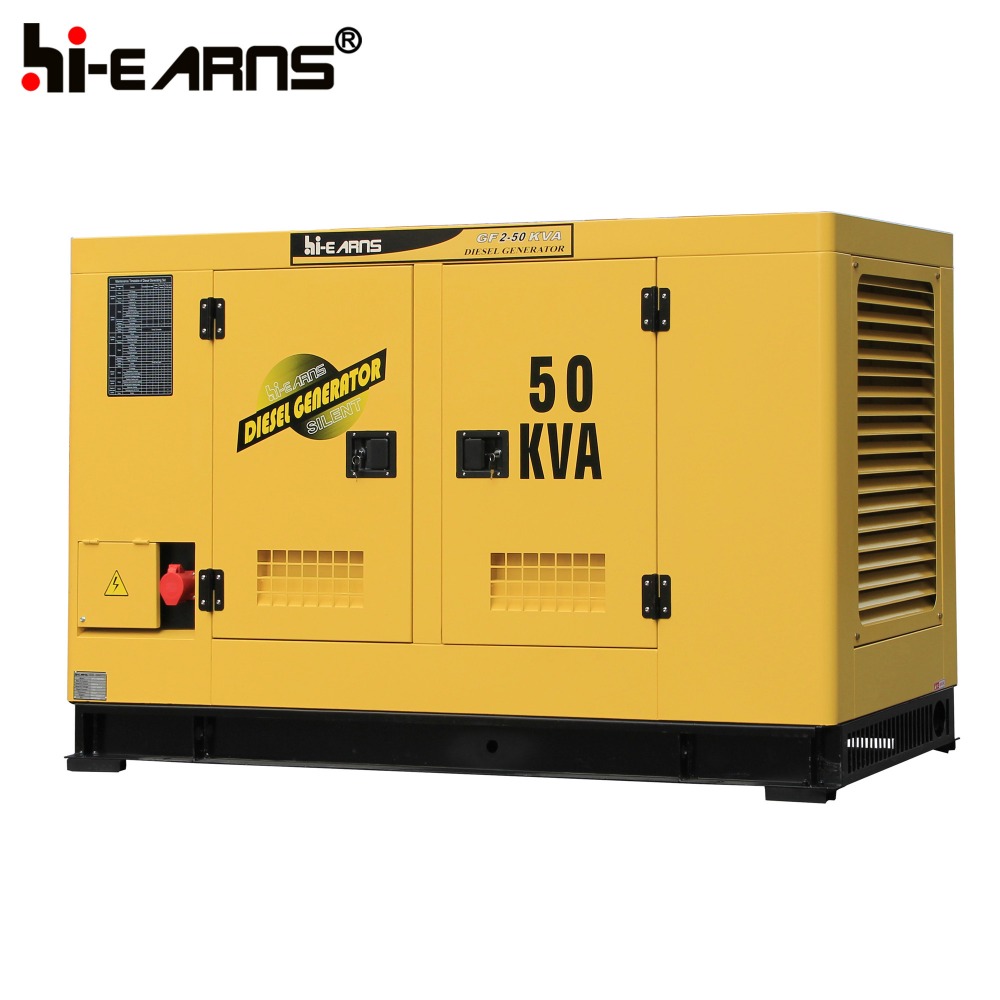

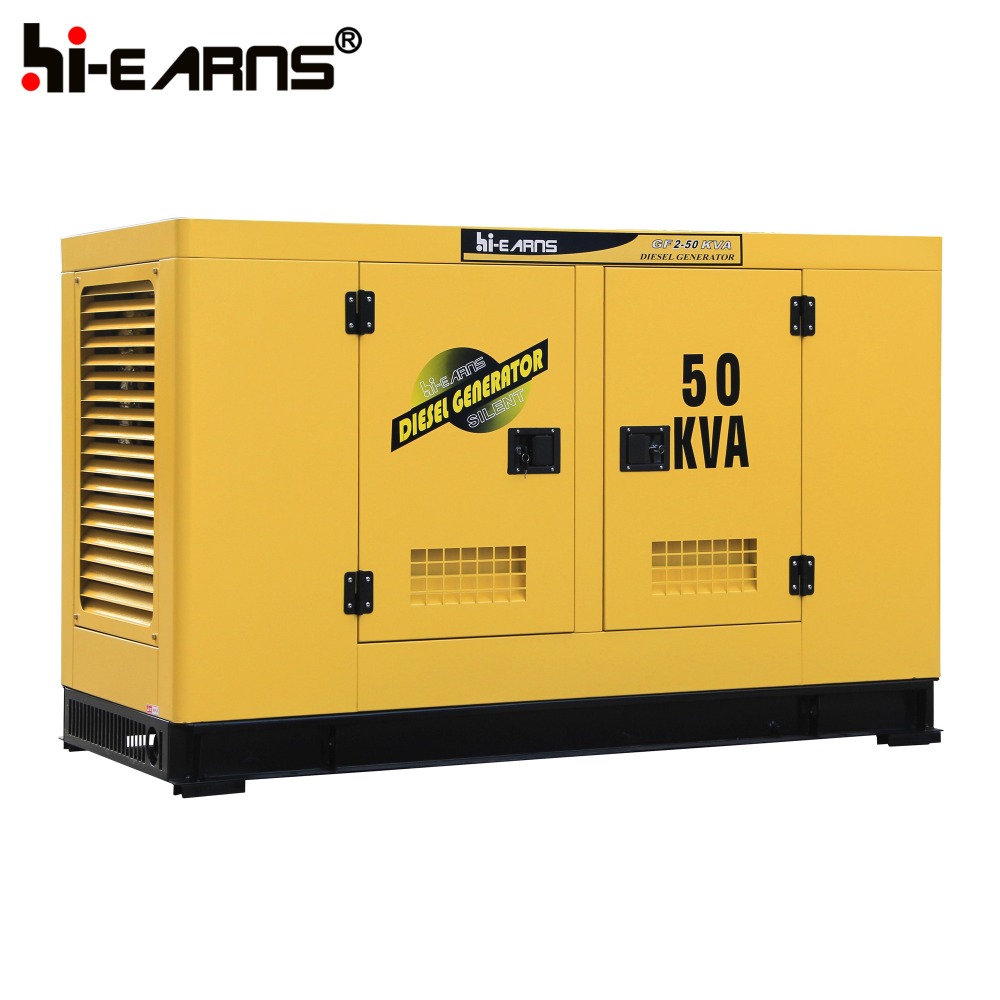

Water-cooled diesel generator Set(GF2-50KVA)
Click on the image to view the original image
Product： views：4Water-cooled diesel generator Set(GF2-50KVA)
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:37
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF2-50KVA
Rated Power:
40KW
Output Type:
AC Three Phase
Rated Voltage:
220/380
Rated Current:
75
Speed:
1500rpm/1800rpm
Frequency:
50/60HZ
Engine:
Cummins engine
Alternator:
Stamford Brushless Alternator
type:
portable,convenient
Warranty:
1 Year
Certificate:
CE/ISO9001
Control panel:
Deepsea / ComAp / Harsen / Smartgen 6110
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
iron frame packing
Port
Shanghai
Lead Time:
25days to 30days

Water-cooled diesel generator Set(GF2-50KVA)


ModelGF2-50KVA
Standby power(50HZ)42KW/52KVA
Prime power(50HZ)40KW/50KVA
Voltage(V)220/380V
Phase3
P.F(COSφ)      0.8
Standby Amps(A)69
Engine typeDCEC Cummins 4BT3.9-G2, 4-stroke
Air intake systemturbo
Fuel system

AD type fuel pump

Fuel consumption(g/kw.h)

≤ 216

Cylinder arrangement

4 in line

Displacement3.9L
Bore x Stroke102 x 120(mm)
Compression Ratio16.5:1
Rated RPM1500rpm
Max.Standby Power at Rated RPM65KW/88.4HP
Governor TypeElectronic
Max Water Temperature104 degree celsius
Alternator Data
Number of Phase3
Connecting Type3 Phase and 4 Wires, "Y" type connecting
Number of Bearing1
Power Factor0.8 Lag
Protection GradeIP23
Altitude≤ 1000m
Exciter TypeBrushless, self-exciting
Insulation Class,Temperature RiseH/H
Telephone Influence Factor(TIF)<50
THF
Our Services

♦ With all the advantages described above, so we DARE to supply 1 year warranty!

♦ Low price spare parts provided beyond warranty period.

♦ If you find one even more products match what you need, So do not hesitate to contact us by each of followed type:

Simon Yang

♦ Mobile/WhatsApp: +86-13775105526

♦ E-mail: server-wm1@ hiearns.com

♦ SKYPE: ysdsimon

♦ TradeManager: cn200048131

♦ WeChat: SimonMrYang

♦ QQ: 568238531

<2%

Voltage Regulation, Steady State≤±1%Alternator Capacity60KVAAlternator Efficiencies88.80%Air cooling Flow0.216m3/sOverall Size2.4x1.0x1.45(m)Weight1450kg
