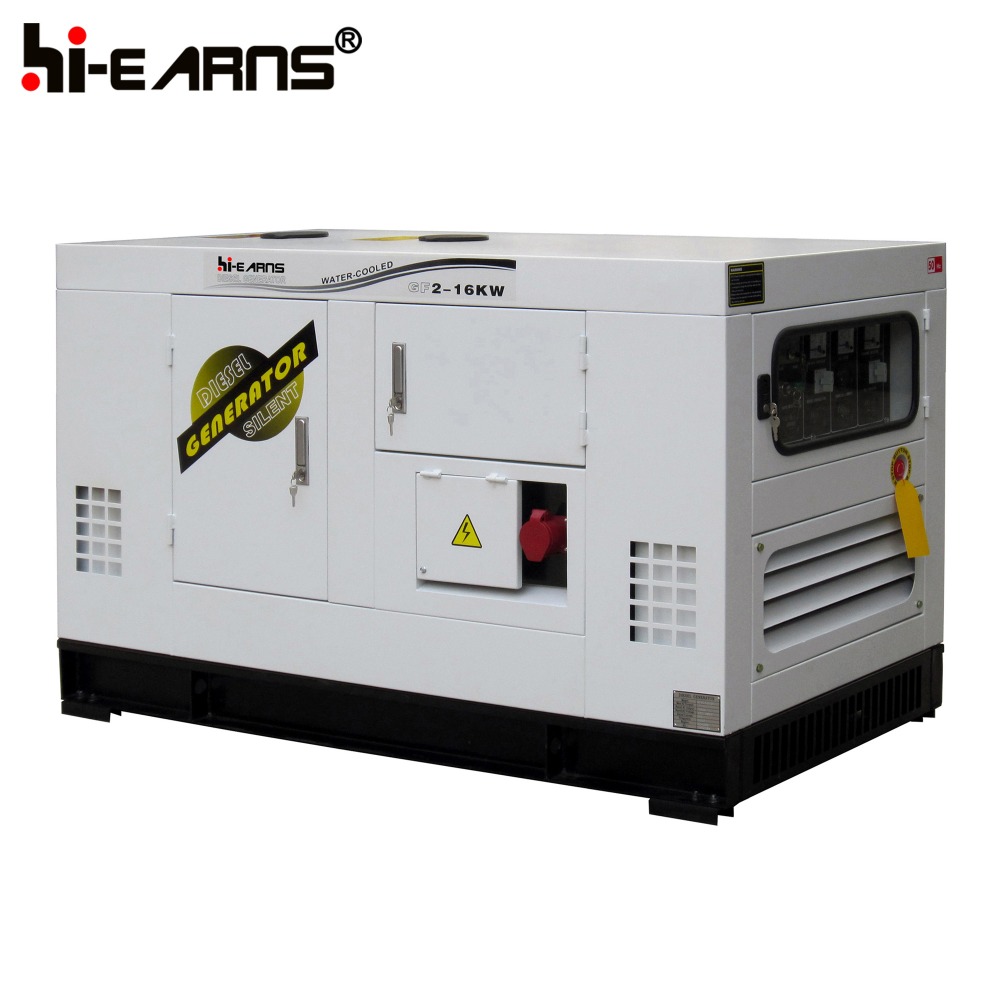

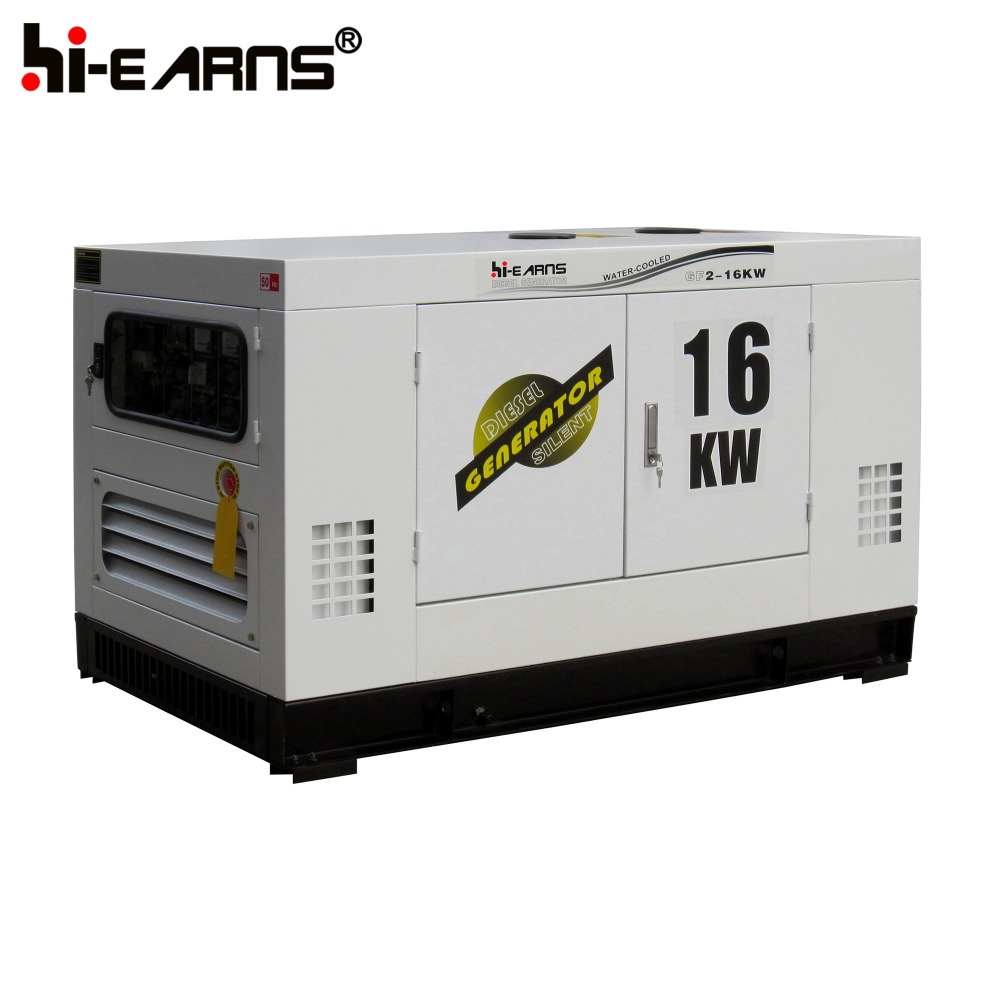

Water-cooled diesel generation (GF2-16KW)

Click on the image to view the original image

Product：	views：4Water-cooled diesel generation (GF2-16KW)
Branch：	hiearns
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:37

Product Details

Overview

Quick Details

Supply Ability

Packaging & Delivery

Water-cooled diesel generation (GF2-16KW)

Standby Power	16.2KW / 20KVA
Prime Power	15KW / 19KVA
Model	QC490D
Cylinder Number	4
Bore×Stroke(mm)	90×105
Displacement(L)	2.672
Rated RPM(r/min)	1500
Rated Speed Regulation %	≤5
Rated Fuel Consumption(g/kW·h)	≤243
Cylinder Head Type	Wet type
Diesel Generator Type	Direct line,Water-cooled,Four stroke
Intake Type	Natually-Aspirated
Combustion Chamber Type	Direct Injection
Lubricating System	Pressure,Split,Complex
Flywheel Cover Specification	SAE4#
Flywheel Specification	SAE7.5″
Exhaust Fan Diameter(mm)	φ410
Flywheel Teeth Number	120
Add Oil Capacity	6.5L
Voltage (V)	380/220
Frequency (HZ)	50
Insulation Class	H
Rated Current (A)	28
Phase	3
Altitude	≤1000m
Power Factor	0.8
Voltage Regulation,Stead State	≤±1%
Connecting Type	3 Phase and 4 Wires,"Y" type connecting
AVR	SX460
Environment Temperature (°c)	40
Exciter Type	Brushless,self-exciting
Protection Grade	IP23
Silent Type"s Dimension Length × Width × Height (mm)	1950×850×1150
Silent Type"s Net Weight(Kg)	706
Silent Type"s 20FT Loading Quantity	12PCS

IQC

♦ Strict and Accurate incoming raw material quality control systemd(IQC), ensure the engine running in the best condition.
