Home > Products > 20KW Water-cooled diesel generation used generator

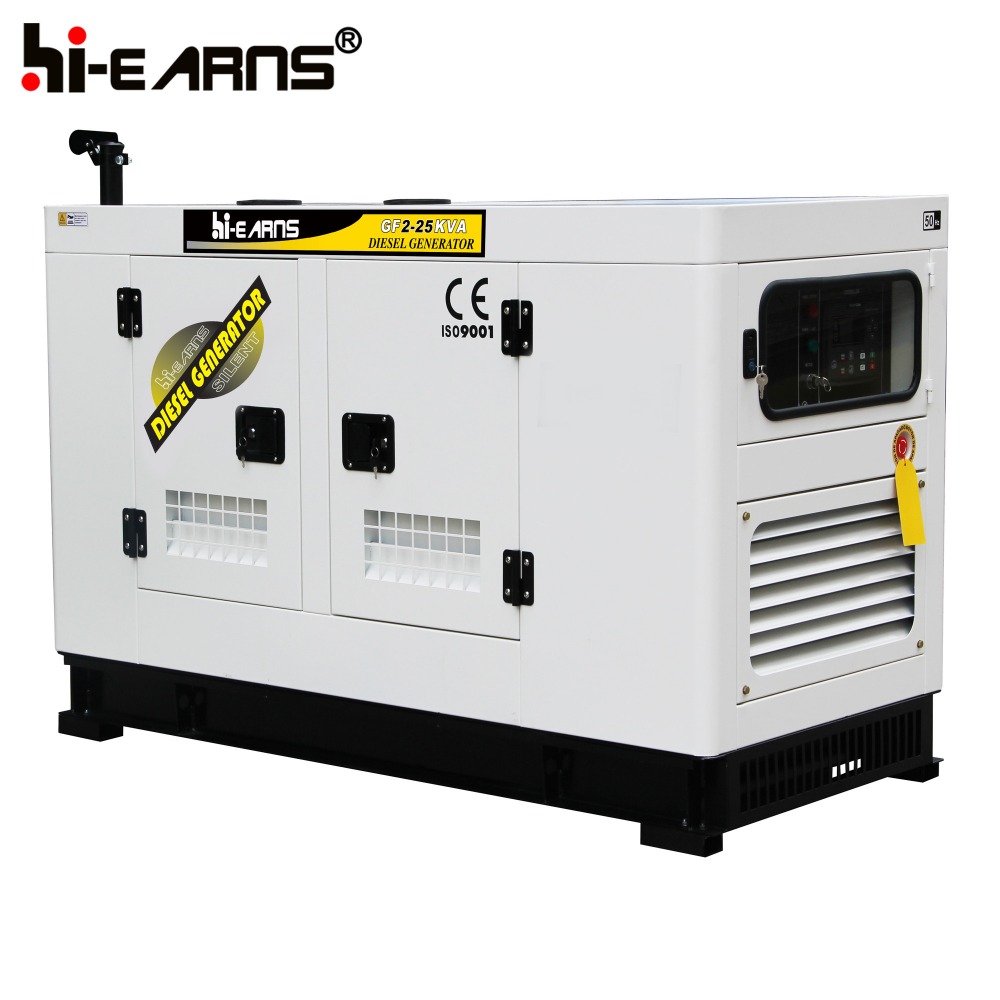

20KW Water-cooled diesel generation used generator
Click on the image to view the original image
Product： views：420KW Water-cooled diesel generation used generator
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:37
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF2-20KW
Rated Power:
20KW
Output Type:
AC Three Phase
Rated Voltage:
220V/380V
Rated Current:
38A
Speed:
1500RPM
Frequency:
50HZ
Generator model:
20KW used generator
engine model:
Cummins 4B3.9-G1
alternator:
100% copper Copy-Stamford brushless
Noise level:
70DB
Control system:
Digital panel control
Certificate:
CE/ISO9001
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
iron frame,dimmension:2200mm*1300mm*1450mm
Port
shanghai
Lead Time:
25 days after receiving the deposit

20KW Water-cooled diesel generation used generator



♦GF2-24KW model: With Quanchai 4102D water-cooled diesel engine and 100% Kaijili alternator ensure a 30KVA output, and 32kva max. output!



♦With SmartGen or Deepsea Digital control pannel ensure easy operation.

MODEL   GF- 20KW
Standby Power(50HZ ) 22KW / 28KVA
Prime Power(50HZ )20KW / 25KVA
ENGINE DATA
Manufacturer/Model:DCEC Cummins 4B3.9-G1,4-cycle
Air Intake System: Air natural cooled
Fuel System:A model fuel pump
Cylinder Arrangement:4 in line
Displacement:3.9L
Bore and Stroke: 102×120(mm)
Compression Ratio:16.5:1
Rated RPM:1500rpm
Max.Standby Power at Rated RPM:            27KW / 36.7HP
Governor Type:RSV Mechanical(Std) / Electronic(Optional)
Exhaust System
Exhaust Gas Flow:4.27m3/min
Exhaust Temperature:410°C
Max Back Pressure:10kPa
Air Intake System
Max Intake Restriction: 5kPa
Buring Capacity:1.98m3/min
Intake Flow:136m3/min
Fuel System
100%(Prime Power) Load:228 g/Kw.h
75%(Prime Power) Load:229 g/Kw.h
75%(Prime Power) Load:240 g/Kw.h
Oil System
Total Oil Capacity:11L
Oil Consumption:≤4g/kwh
Engine Oil Tank Capacity:9.5L
Oil Pressure at Rated RPM:345kPa
Cooling System
Total Coolant Capacity:21L
Thermostat:82-95°C
Max Water Temperature:104°C
Open Type Soundproof Type
Overall Size:1800(mm)×750(mm)×1350(mm)   Overall Size:2200(mm)×1000(mm)×1450(mm)
Weight:876kgWeight:1300kg



IQC

♦ Strict and Accurate incoming raw material quality control systemd(IQC), ensure the engine running in the best condition.









Our Services

♦ With all the advantages described above, so we DARE to supply 1 year warranty!

♦ Low price spare parts provided beyond warranty period.

♦ If you find one even more products match what you need, So do not hesitate to contact us by each of followed type:



Simon Yang



♦ Mobile/WhatsApp: +86-13775105526

♦ E-mail: server-wm1@ hiearns.com

♦ SKYPE: ysdsimon

♦ TradeManager: cn200048131

♦ WeChat: SimonMrYang

♦ QQ: 568238531
