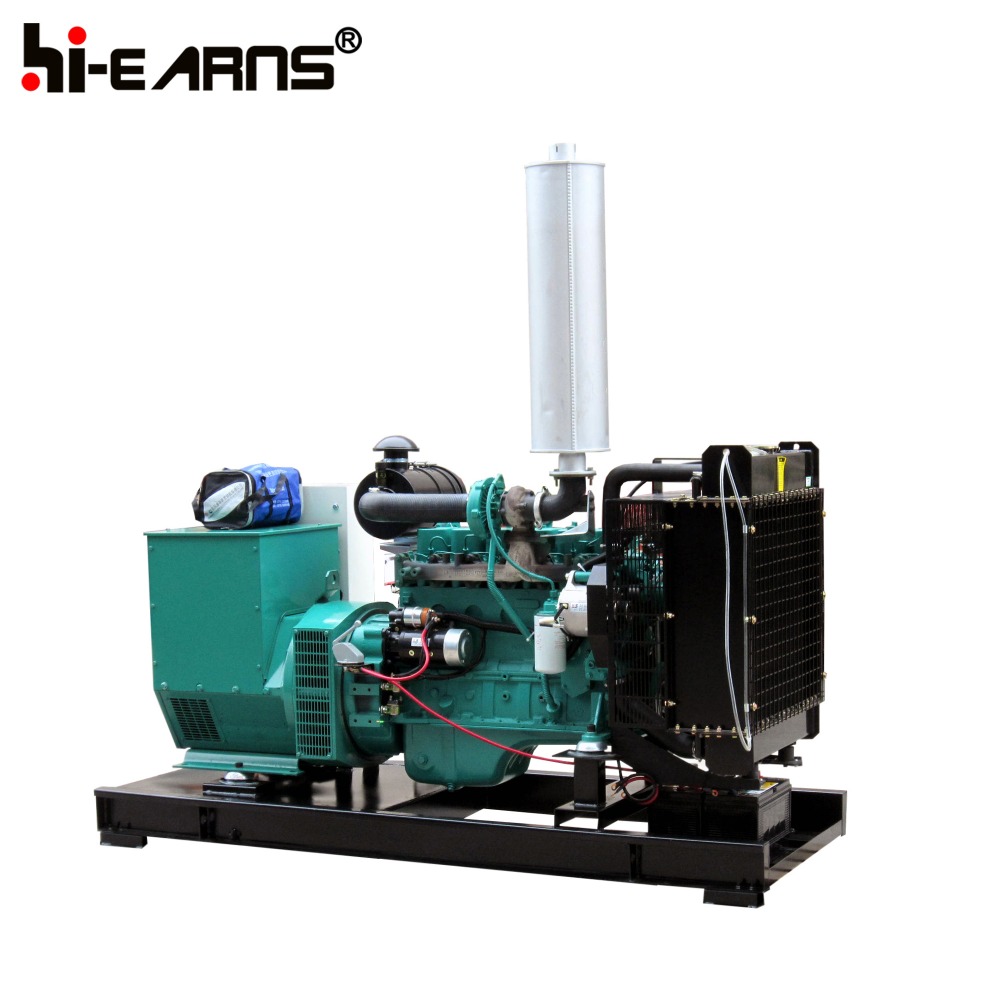

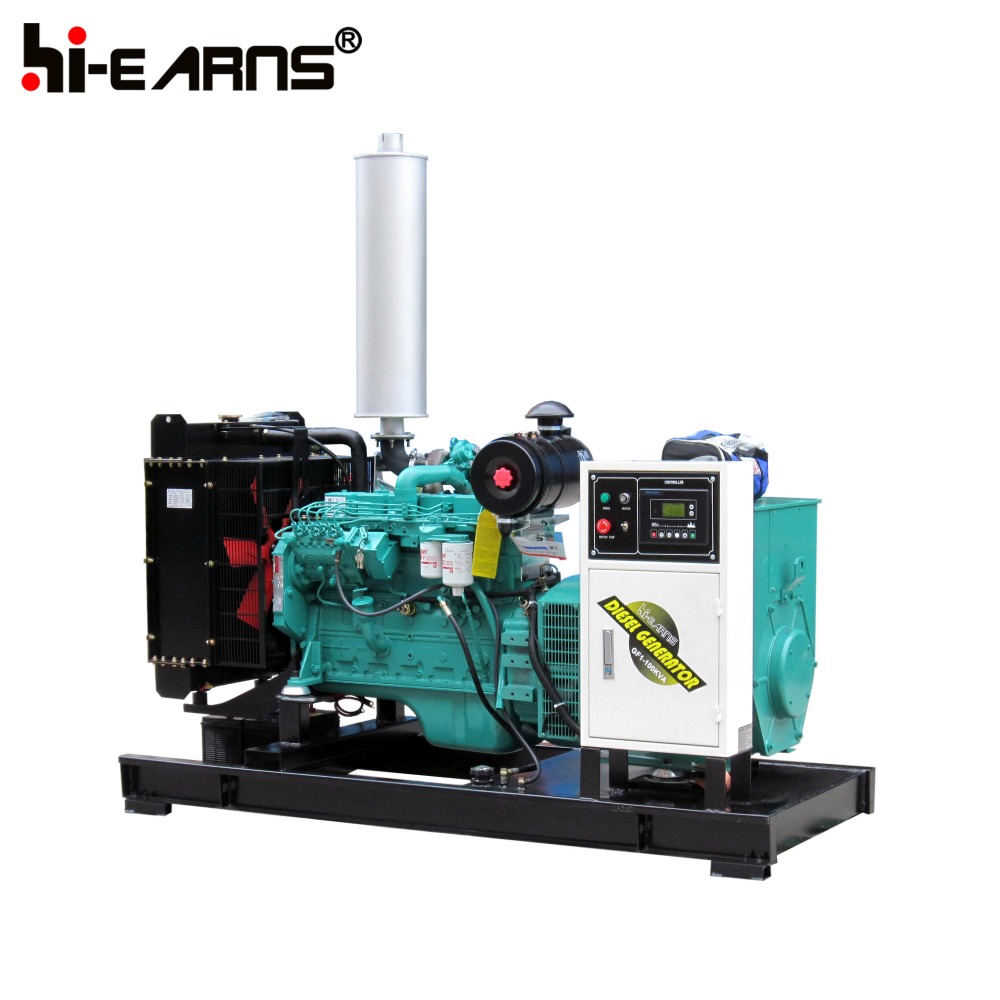

100KVA 50HZ 380V 400V water cooled open type diesel generator

Click on the image to view the original image

Product：	views：3100KVA 50HZ 380V 400V water cooled open type diesel generator
Branch：	Hi-earns
Type：	Silent/super silent/open
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:37

Product Details

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Model Number:: GF1-100KVA

Rated Power:: 80KW100KVA

Output Type:: AC Three Phase

Rated Voltage:: 220/380,230/400,240/415V

Rated Current:: 152A

Speed:: 1500/1800RPM

Frequency:: 50HZ/60HZ

Color:: Yellow/Green/White/Green/Red/Orange/Blue

Warranty:: One year

Panel:: Common/digital/ATS

Type:: Silent/super silent/open

Design:: New

Noise:: 80-85dB

Power factor:: 0.8

Phase:: three

Engine type:: Six cylinder four stroke

Price:: More competitive

Supply Ability

Supply Ability:: 50 Set/Sets per Day

Packaging & Delivery

Packaging Details: 1.PACKAGE METHOD:
Wooden with plastic films or bubble wrap with plastic film and wooden plate.
2.DELIVERY TIME:25days.
3.WARRANTY:One year.

Port: shanghai

Lead Time:: 25days

https://www.alibaba.com/product-detail/100KVA-50HZ-380V-400V-water-cooled_1834957043.html?spm=a2747.manage.list.115.6d7571d2sNiZ38GF1-100KVA open type Water-cooled Cummins diesel generator

Model	GF1-100KVA
Standby power(50HZ)	87KW/109KVA
Prime power(50HZ)	80KW/100KVA
Voltage(V)	220/380,230/400,240/415V
Phase	3
P.F(COSφ)	0.8
Standby Amps(A)	165
Engine type	DCEC Cummins 6BT5.9-G1/G2, 4-stroke
Air intake system	turbo
Fuel system	A/AD type fuel pump
Fuel consumption(g/kw.h)	≤ 214
Cylinder arrangement	6 in line
Displacement	5.9L
Bore x Stroke	102 x 120(mm)
Compression Ratio	17.5:1
Rated RPM	1500rpm
Max.Standby Power at Rated RPM	92KW/125HP
Governor Type	RSV Mechanical(Std)/Electronic(optional)
Max Water Temperature	104 degree celsius
Alternator Data
Number of Phase	3
Connecting Type	3 Phase and 4 Wires, "Y" type connecting
Number of Bearing	1
Power Factor	0.8 Lag
Protection Grade	IP23
Altitude	≤ 1000m
Exciter Type	Brushless, self-exciting
Insulation Class,Temperature Rise	H/H
Telephone Influence Factor(TIF)	<50
THF	<2%
Voltage Regulation, Steady State	≤±1%
Alternator Capacity	100KVA
Alternator Efficiencies	90.4%
Air cooling Flow	0.514m3/s
Overall Size	2.7x1.1x1.5(m)
Weight	1900kg

Automatic Workshop

♦ Modern workshops have advanced production lines and professional knowledge of assembly.

♦ Flow card to record each details carefully.

♦ Test engine at least twice before ex-factory.

Our Services

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.

Packaging & Shipping

♦ Strong packaging to ensure safty during transportation.

♦ 7 layer corrugated carton or plywood box packagine for products.
