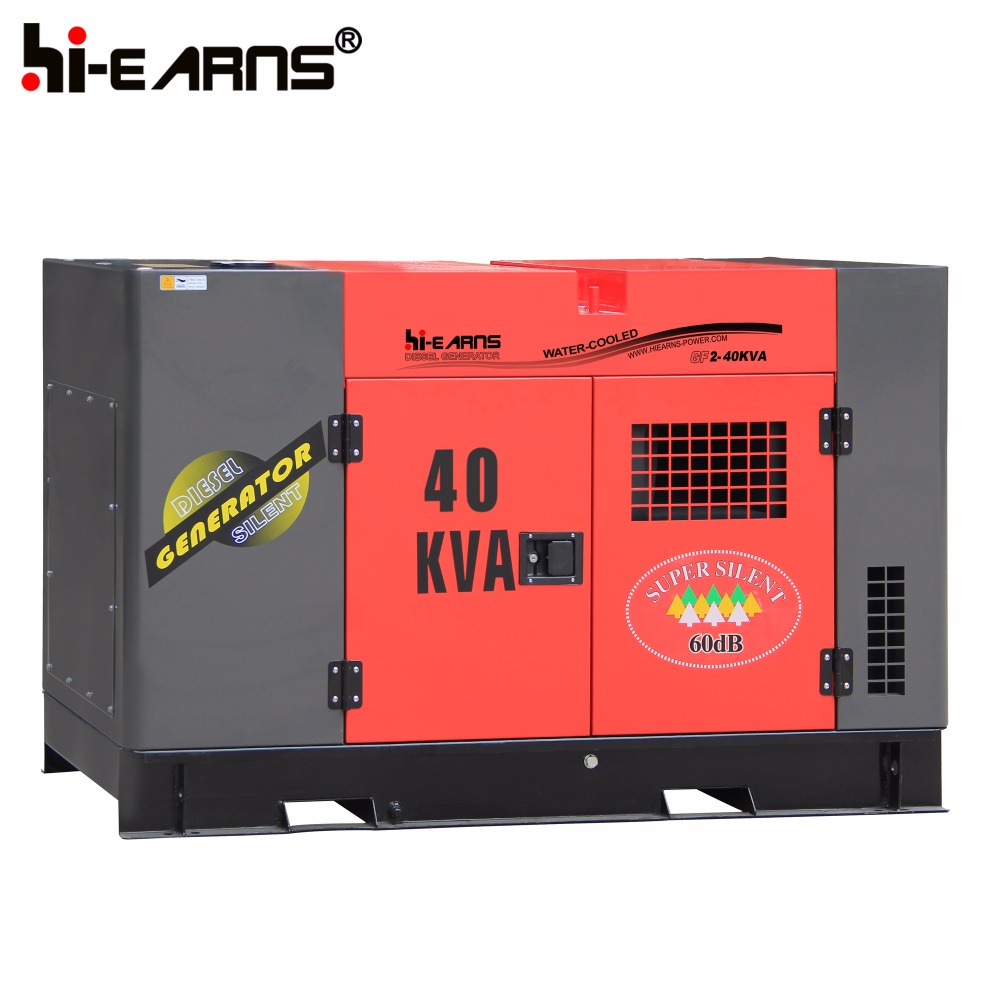

30KW Chinese factory diesel generator
| MODEL | GF2 - 40KVA | |||||
| Standby Power(50HZ ) | 33KW / 41KVA | |||||
| Prime Power(50HZ ) | 30KW / 38KVA | |||||
| ENGINE DATA | ||||||
| Manufacturer/Model: | DCEC Cummins 4BT3.9-G1,4-cycle | |||||
| Air Intake System: | Turbo | |||||
| Fuel System: | A type fuel pump | |||||
| Cylinder Arrangement: | 4 in line | |||||
| Displacement: | 3.9L | |||||
| Bore and Stroke: | 102×120(mm) | |||||
| Compression Ratio: | 16.5:1 | |||||
| Rated RPM: | 1500rpm | |||||
| Max.Standby Power at Rated RPM: | 40KW / 54.4HP | |||||
| Governor Type: | RSV Mechanical(Std) / Electronic(Optional) | |||||
| Exhaust System | ||||||
| Exhaust Gas Flow: | 6.48m3/min | |||||
| Exhaust Temperature: | 487°C | |||||
| Max Back Pressure: | 10kPa | |||||
| Air Intake System | ||||||
| Max Intake Restriction: | 6.35kPa | |||||
| Buring Capacity: | 2.69m3/min | |||||
| Intake Flow: | 146m3/min | |||||
| Fuel System | ||||||
| 100%(Prime Power) Load: | 214 g/Kw.h | |||||
| 75%(Prime Power) Load: | 223 g/Kw.h | |||||
| 75%(Prime Power) Load: | 244 g/Kw.h | |||||
| Oil System | ||||||
| Total Oil Capacity: | 11L | |||||
| Oil Consumption: | ≤4g/kwh | |||||
| Engine Oil Tank Capacity: | 9.5L | |||||
| Oil Pressure at Rated RPM: | 345kPa | |||||
| Cooling System | ||||||
| Total Coolant Capacity: | 21L | |||||
| Thermostat: | 82-95°C | |||||
| Max Water Temperature: | 104°C | |||||
| Open Type | Soundproof Type | |||||
| Overall Size:1800(mm)×750(mm)×1400(mm) | Overall Size:2270(mm)×1000(mm)×1450(mm) | |||||
| Weight:893kg | Weight:1350kg | |||||
