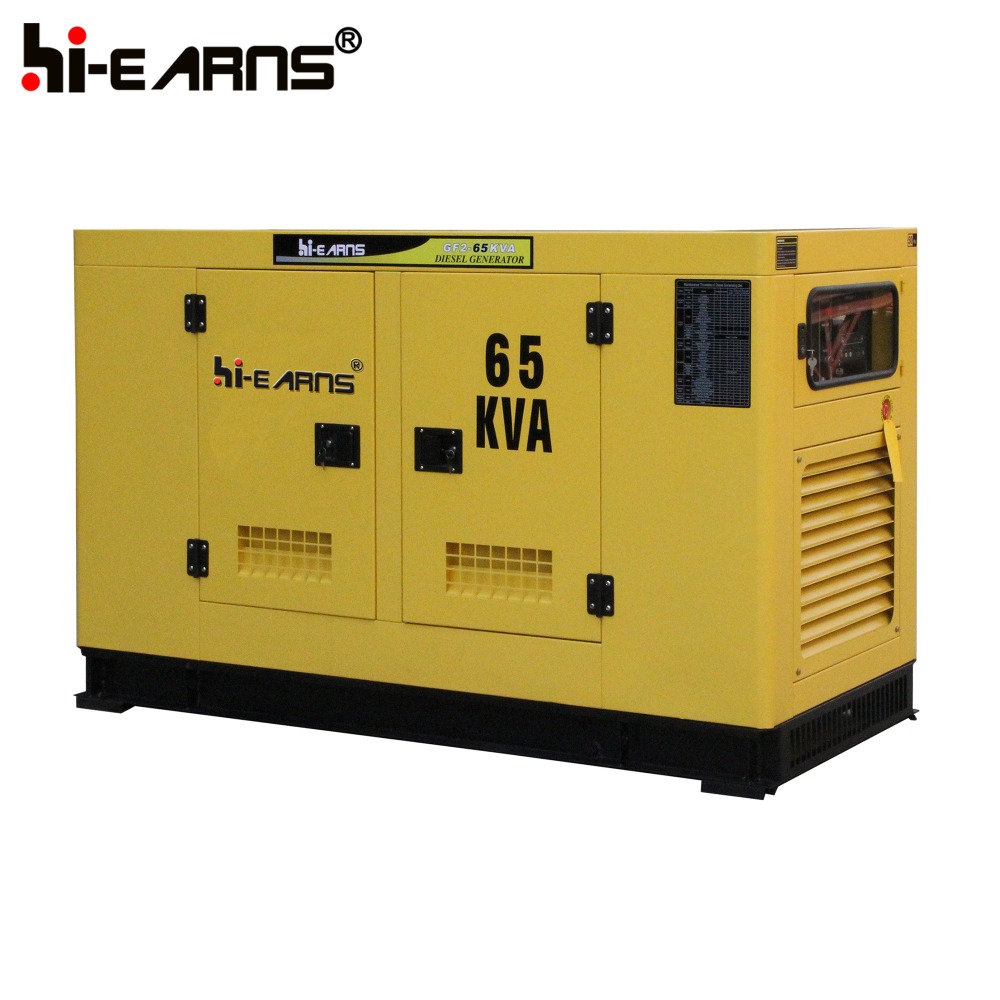

GF2-65KVA Water-cooled silent type diesel generator set
| MODEL | GF2 - 65KVA | |||||
| Standby Power(50HZ ) | 54KW / 68KVA | |||||
| Prime Power(50HZ ) | 50KW / 63KVA | |||||
| ENGINE DATA | ||||||
| Manufacturer/Model: | Yuchai Engine YC4D90Z-D20 | |||||
| Air Intake System: | Pressurize | |||||
| Cylinder Arrangement: | 4 in line | |||||
| Bore and Stroke: | 108×115(mm) | |||||
| Rated RPM: | 1500rpm | |||||
| Governor Type: | RSV Mechanical(Std) | |||||
| Alternator Data | ||||||
| Power Factor | 0.8 Lag | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| exhaust Air Temperature | ≤600 | |||||
| Altitude | ≤1000m | |||||
| Connecting Type | 40 | |||||
| Ignite sequence | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Rated Speed Regulation | 1-3-4-2 | |||||
| Open Type | Open Type Soundproof Type | |||||
| Overall Size:2(m)×0.82(m)×1.16(m) | Overall Size:2.21(m)×1(m)×1.43(m) | |||||
| Weight:980kg | Weight:1150kg | |||||
♦ Economic and practical products from hi-earns,reliable performance.
♦ Choose hi-earns,choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system,to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packagine for products.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
How to come to Hi-earns?
♦ Line 1:TAXI
Shanghai International Airport(Pudong)
Cost(USD):85
Time:2.5 hours
♦Line 2:High speed rail
Shanghai Hongqiao railway station---Changzhou railway station
Cost(USD):20
Time:1 hour
♦ With all the technical advantages,we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
HI-EARNS ALWAYS PROVIDE THE BEST,WE LISTEND TO YOUR NEEDS.
