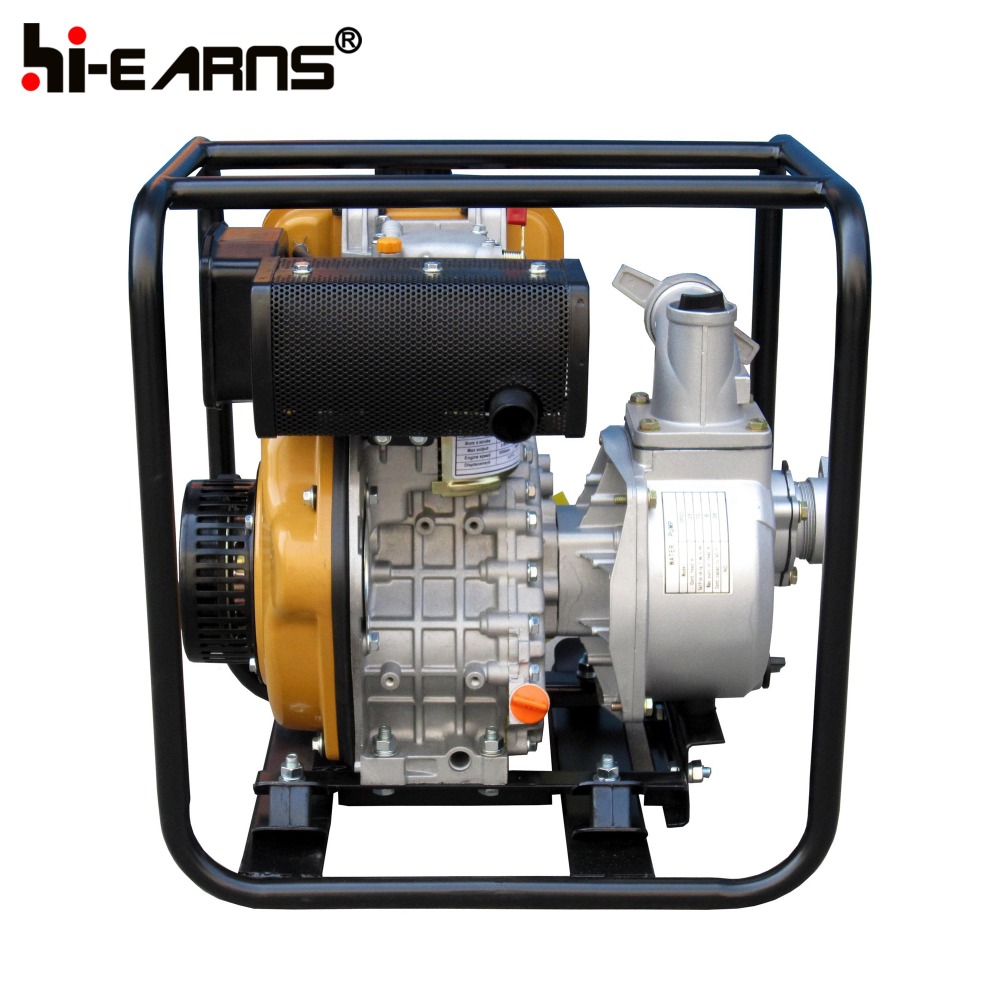

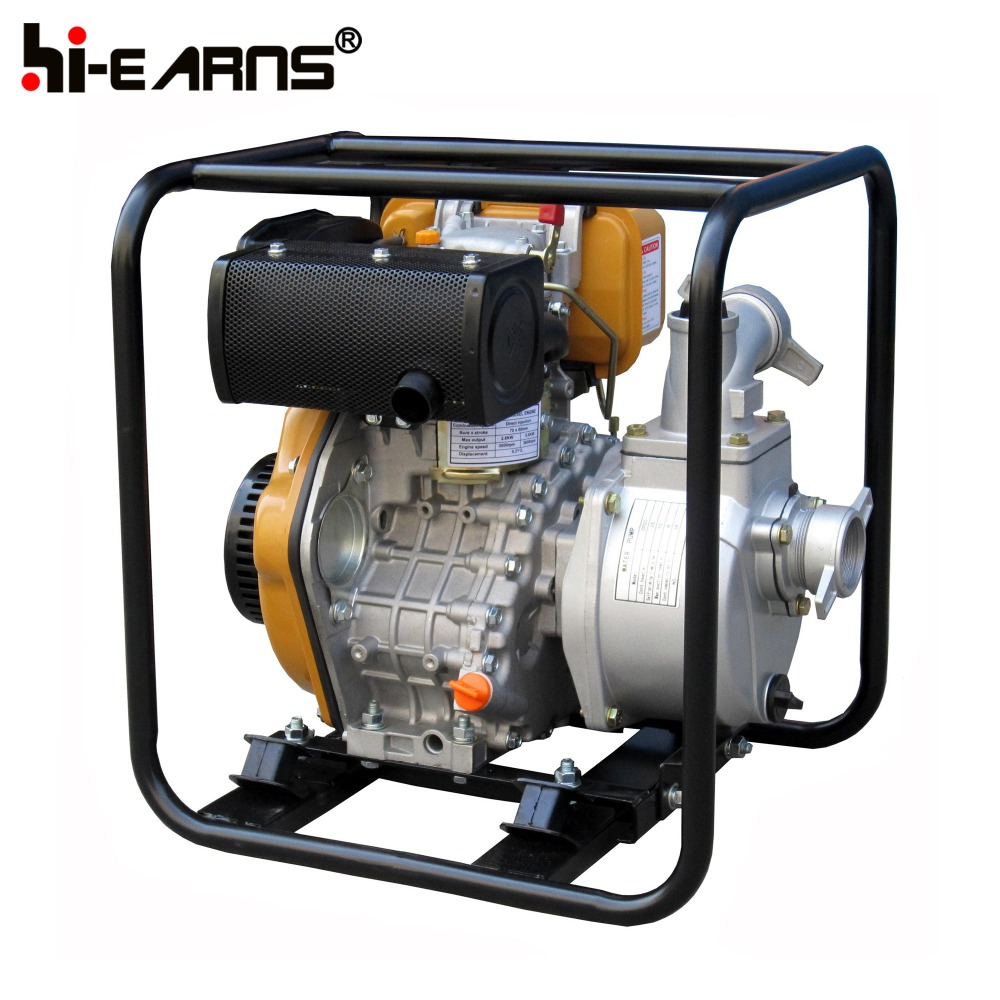

Diesel water pump Recoil start Robin Yellow Color (DP20)
| WATER PUMP | Model | DP20 | |
| Suction,discharge port diameter[mm(in)] | 50(2"") | ||
| Cont.head(m) | 26 | ||
| Self-priming time(s/4m) | 70 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 36 | ||
| ENGINE | Engine model | HR170F | |
| Speed(rpm) | 3600 | ||
| Type | 86×72 | ||
| Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 211 | ||
Bore*stroke(mm) | 70*55 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 2.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 475×400×515 | |
| Net weight(kg) | 35 | ||
| 20FT | 180 | ||
♦ Economic and practical products from hi-earns,reliable performance.
♦ Choose hi-earns,choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system,to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packagine for products.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
How to come to Hi-earns?
♦ Line 1:TAXI
Shanghai International Airport(Pudong)
Cost(USD):85
Time:2.5 hours
♦Line 2:High speed rail
Shanghai Hongqiao railway station---Changzhou railway station
Cost(USD):20
Time:1 hour
♦ With all the technical advantages,we promise customer one year warranty.
