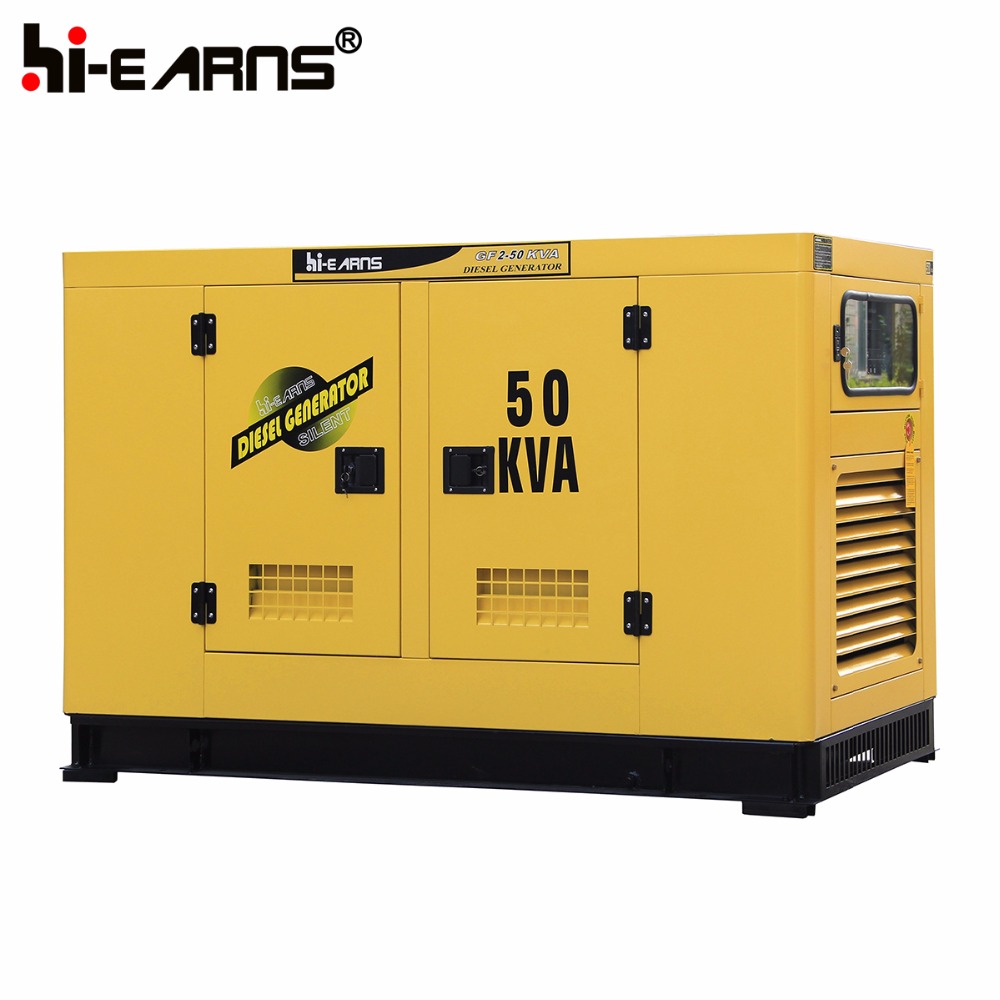

40KW 50 KVA Water cooled silent type diesel generator set GF2-50KVA
| Genset Model | WEIFANG HUADONG ENGINE TACHNICAL DATA | |
| Genset Model | GF2-40KW | |
| Engine Data | Engine Model | R4105D |
| Engine Type | Four stroke,Water-cooled,Direct line,Turbo type | |
| Rated Output | 40KW / 50KVA | |
| Max. Output | 43KW / 54KVA | |
| Voltage (V) | 380/220 | |
| Current (A) | 75 | |
| Frequency (HZ) | 50 | |
| Rated RPM (r/min) | 1500 | |
| Cooling System | Forced Water-cooled | |
| Fuel Consumption (≤g/kw.h) | ≤231 | |
| Compression Ratio | 17:01 | |
| Bore×Stroke (mm) | 105X125 | |
| Displacement (L) | 4.33 | |
| Start Method | Electric Start | |
| Alternator Data | Power Factor | 0.8 Lag |
| Insulation Class | H | |
| Lubricating System | Pressure,Split,Complex | |
| exhaust Air Temperature (°C) | ≤600 | |
| Altitude | ≤1000m | |
| Environment Temperature (°C) | 40 | |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |
| Ignite sequence | 1-3-4-2 | |
| Intake Type | pressurize | |
| Rated Speed Regulation % | ≤±1% | |
| Phase | 3 | |
| Dimension | Silent Type"s Net Weight(kg) | 860 |
| Silent Type"s Dimension Length × Width × Height (mm) | 2150×950×1290 | |
| Silent Type"s 20FT Loading Quantity | 6PCS | |
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
8.Our logo or OEM
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
