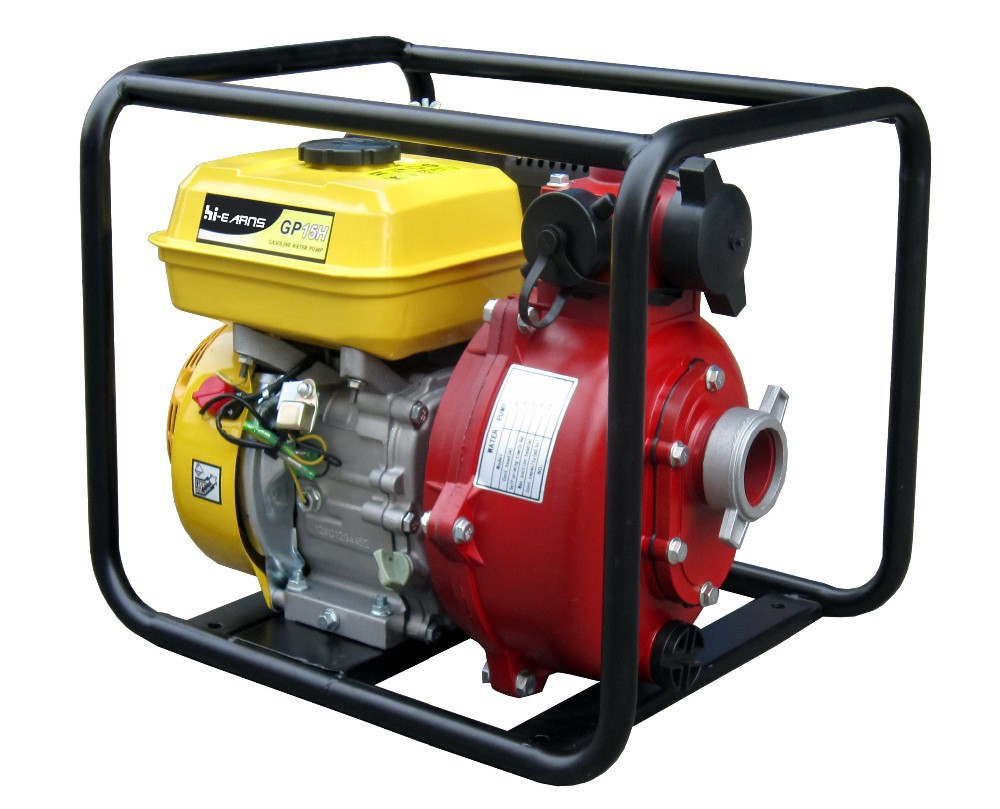

gasoline water pump(GP15H)
| WATER PUMP | Model | GP15H | |
| Suction,discharge port diameter[mm(in)] | 40(1.5"") | ||
| Cont.head(m) | 60 | ||
| Self-priming time(s/4m) | 30 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 18 | ||
| ENGINE | Engine model | HR200 | |
| Speed(rpm) | 3600 | ||
| Type | 4-stroke air-cooled OHV gasoline engine | ||
Displacement(cc) | 196 | ||
Bore*stroke(mm) | 68*54 | ||
Starting system | Recoil | ||
| Fuel tank capacity(L) | 3.6 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 525×410×445 | |
| Net weight(kg) | 46 | ||
| 20FT | 120 | ||
♦ Economic and practical products from hi-earns,reliable performance.
♦ Choose hi-earns,choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system,to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packagine for products.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
How to come to Hi-earns?
♦ Line 1:TAXI
Shanghai International Airport(Pudong)
Cost(USD):85
Time:2.5 hours
♦Line 2:High speed rail
Shanghai Hongqiao railway station---Changzhou railway station
Cost(USD):20
Time:1 hour
♦ With all the technical advantages,we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
HI-EARNS ALWAYS PROVIDE THE BEST,WE LISTEND TO YOUR NEEDS.
Any time you need us,we are here!
Amy Chang
♦ Mobile: +86-13328178882
♦ E-mail: hiearns1@ vip.163.com
♦ TradeManager: cn200034502
♦ WeChat: HR13328178882
♦ QQ: 3598810587
