- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG8500SE
- Rated Voltage:
- 220V
- Rated Current:
- 27.27A
- Speed:
- 3000rmp/3600rmp
- Frequency:
- 50hz/60hz
- generator:
- portable silent diesel generator 8KVA
- panel:
- digital control panel
- color:
- optional
- Alternator:
- 100% copper wire SENCI
- Engine model:
- 192FC
- Engine Brand:
- Made by ourselves
- Warranty:
- 12 Months
- Noise level:
- 68-72dB
- Fuel tank:
- 16L
- Engine type:
- 4-stroke Air-cooled Diesel Engine
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 95X56X76 cm
- Single gross weight:
- 165.0 kg
- Package Type:
- Carton packing with plywood pallet

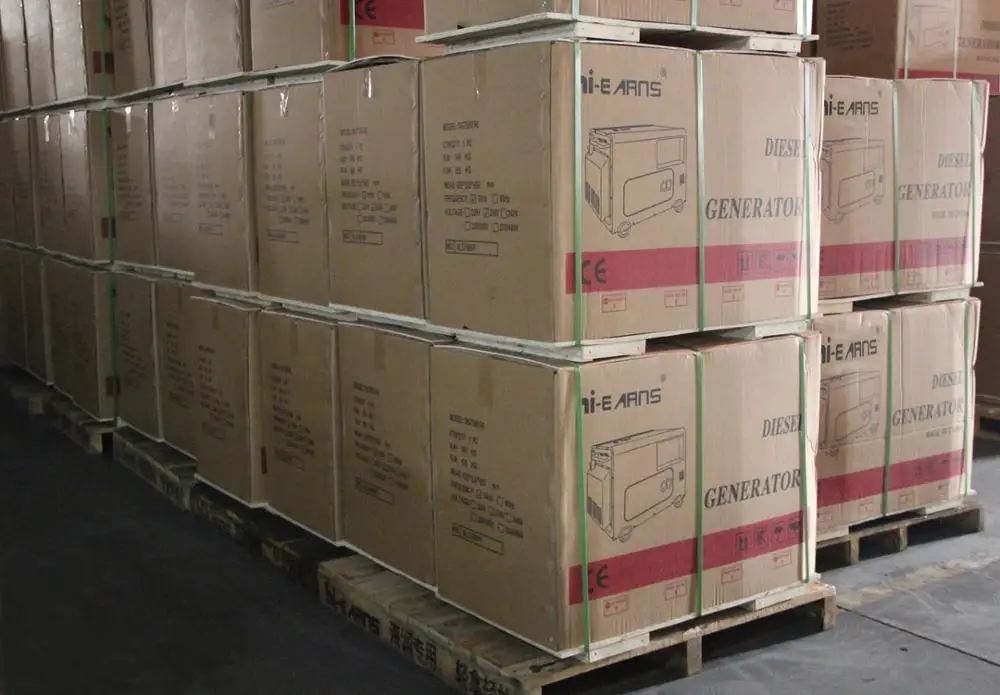

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 20 >20 Est. Time(days) 15 25 To be negotiated

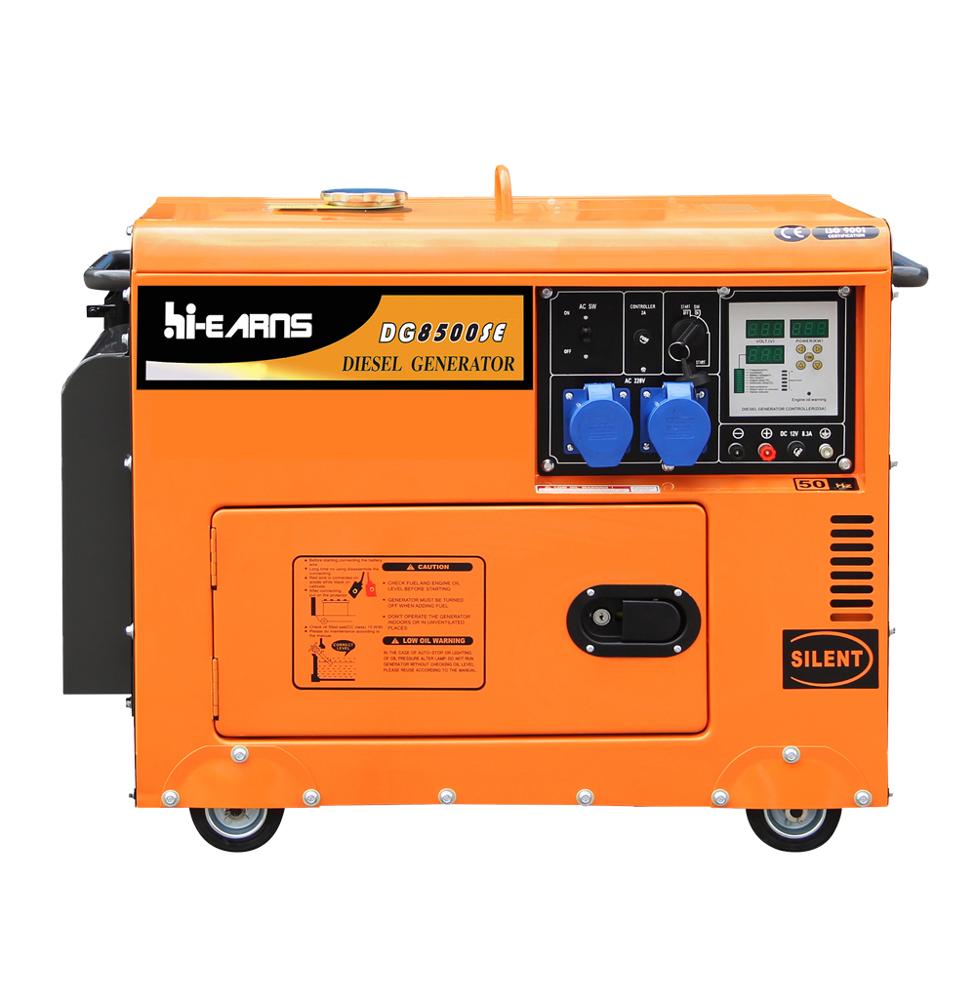

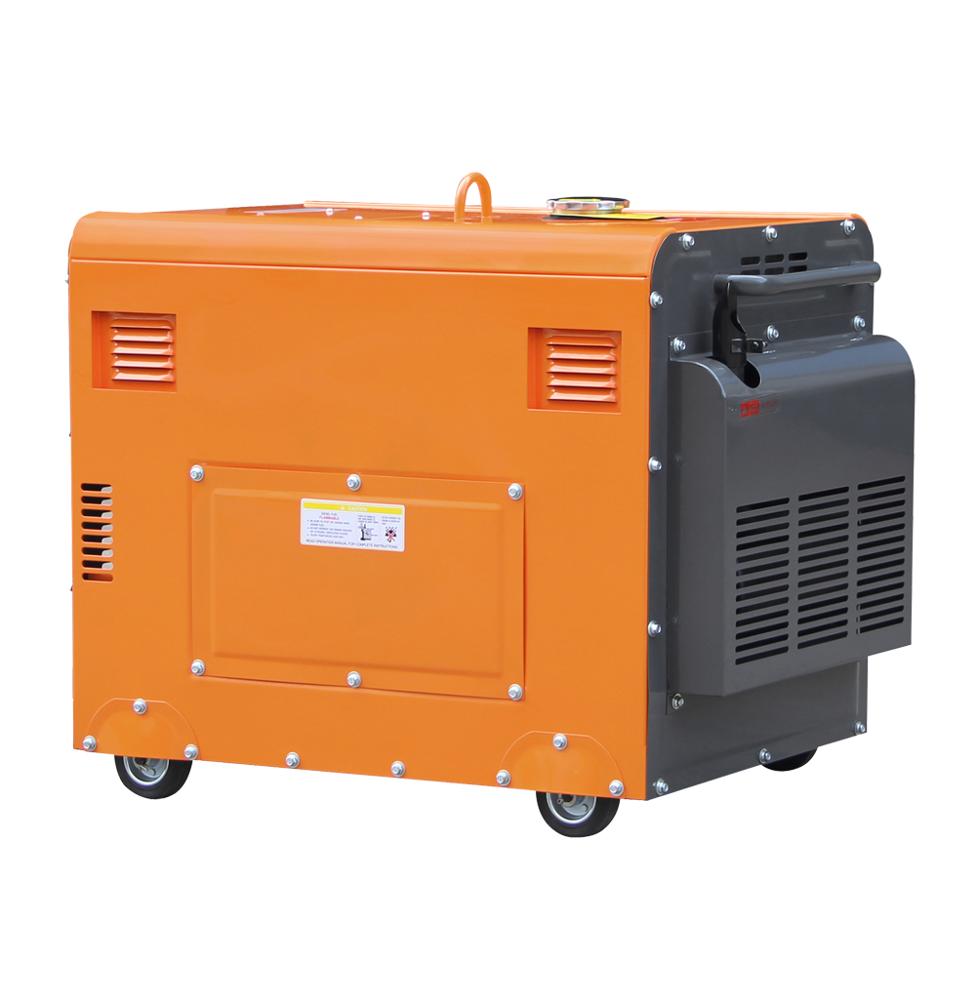

6KW digital diesel generator portable silent diesel generator 8KVA
♦DG8500SE model: With 14 HP HR192FB air cooled diesel engine and 100% copper wire SENCI alternator ensure a 6KW rated output, and 6.5KW max. output! diesel generator
♦Electric start with 30AH battery; Silent canopy with 4 wheels ensure easy moving; Best designed muffler; portable model for home use!
♦Also have open frame model DG8000E, the noise maybe little bigger, and the price can have a discount!
♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap.
| GENERATOR | Model | DG8500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 6.5 | 7 | |
| Rated output(kw) | 6 | 6.5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR192FB | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 92× 75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 950× 560× 710 | |
| Net weight(kg) | 155 | ||
| 20FT | 72 | ||
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
