Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi earns
- Model Number:
- DP60E
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- Irrigation
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- type:
- centrifugal pump
- engine:
- 192FB
- color:
- optional
- max. suction head:
- 6m
- cont. head:
- 15m
- self-priming time:
- 20s/4m
- engine speed:
- 3200rpm
- engine type:
- single cylinder,vertical,4 stroke air cooled diesel engine
- displacement:
- 498cc
- bore*stroke:
- 92*75 mm
- Theory:
- Centrifugal Pump
- Standard or Nonstandard:
- Standard
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 78X54X84 cm
- Single gross weight:
- 140.0 kg
- Package Type:
- carton box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 11 - 50 >50 Est. Time(days) 15 20 To be negotiated

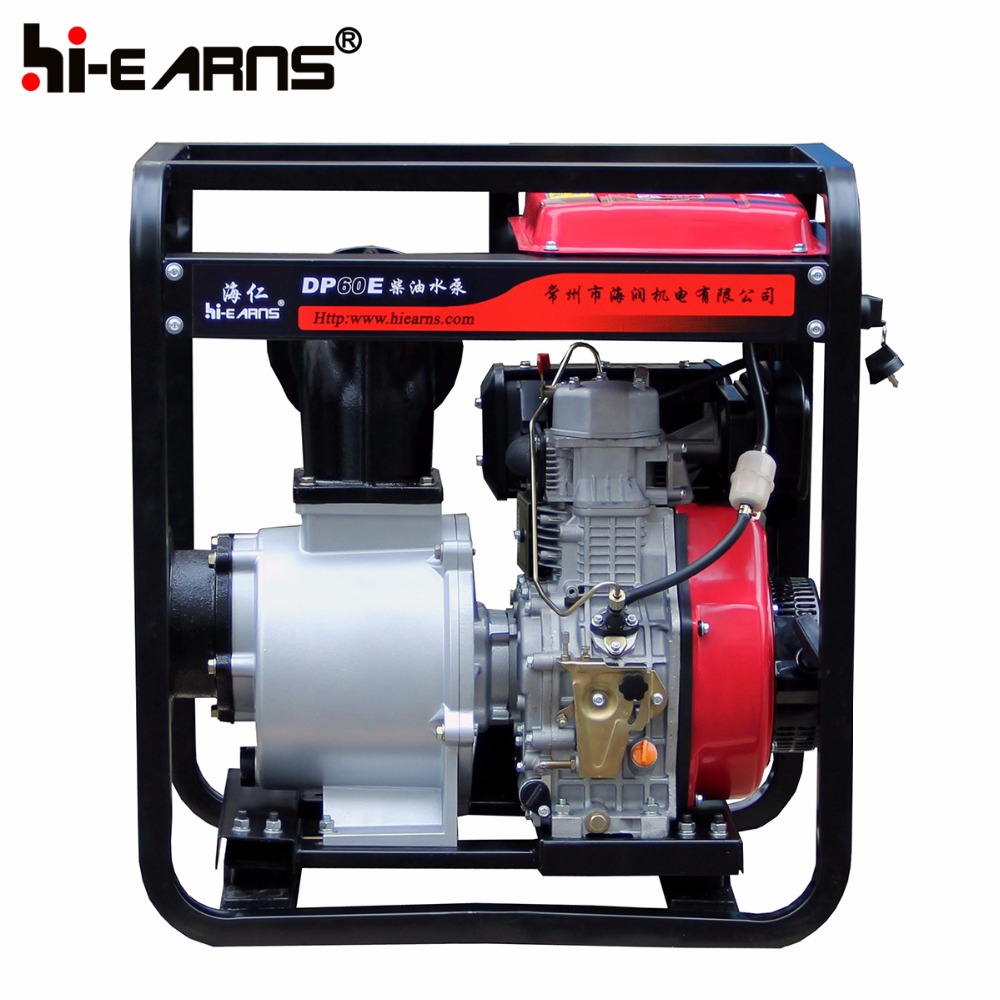

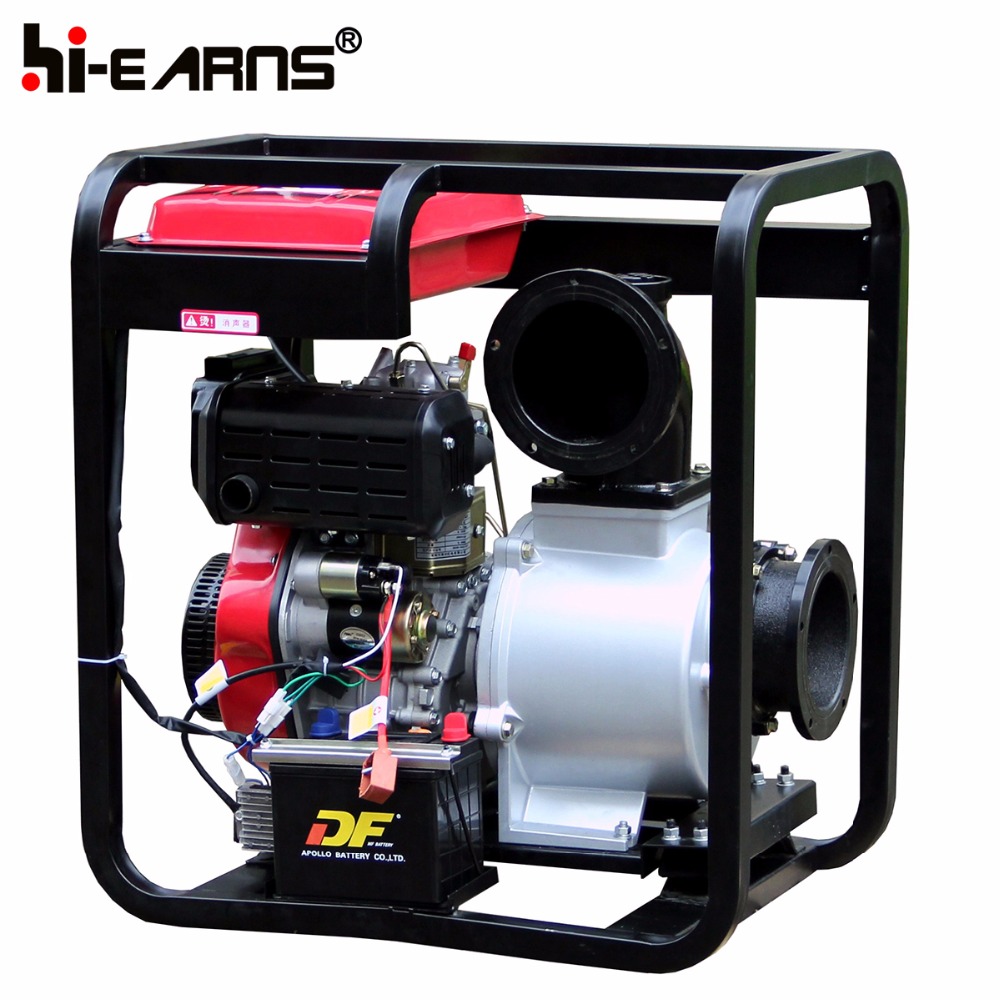

6 inch diesel water pump electric centrifugal pump
| WATER PUMP | Model | DP60E | |
| Suction,discharge port diameter[mm(in)] | 150(6") | ||
| Cont.head(m) | 15 | ||
| Self-priming time(s/4m) | 200 | ||
| Max suction head(m) | 6 | ||
| Cont.capacity(m³/hr) | 180 | ||
| ENGINE | Engine model | HR192FB | |
| Speed(rpm) | 3200 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 498 | ||
Bore*stroke(mm) | 92*75 | ||
Starting system | Electric | ||
| Fuel tank capacity(L) | 12.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 790×560×870 | |
| Net weight(kg) | 120 | ||
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
