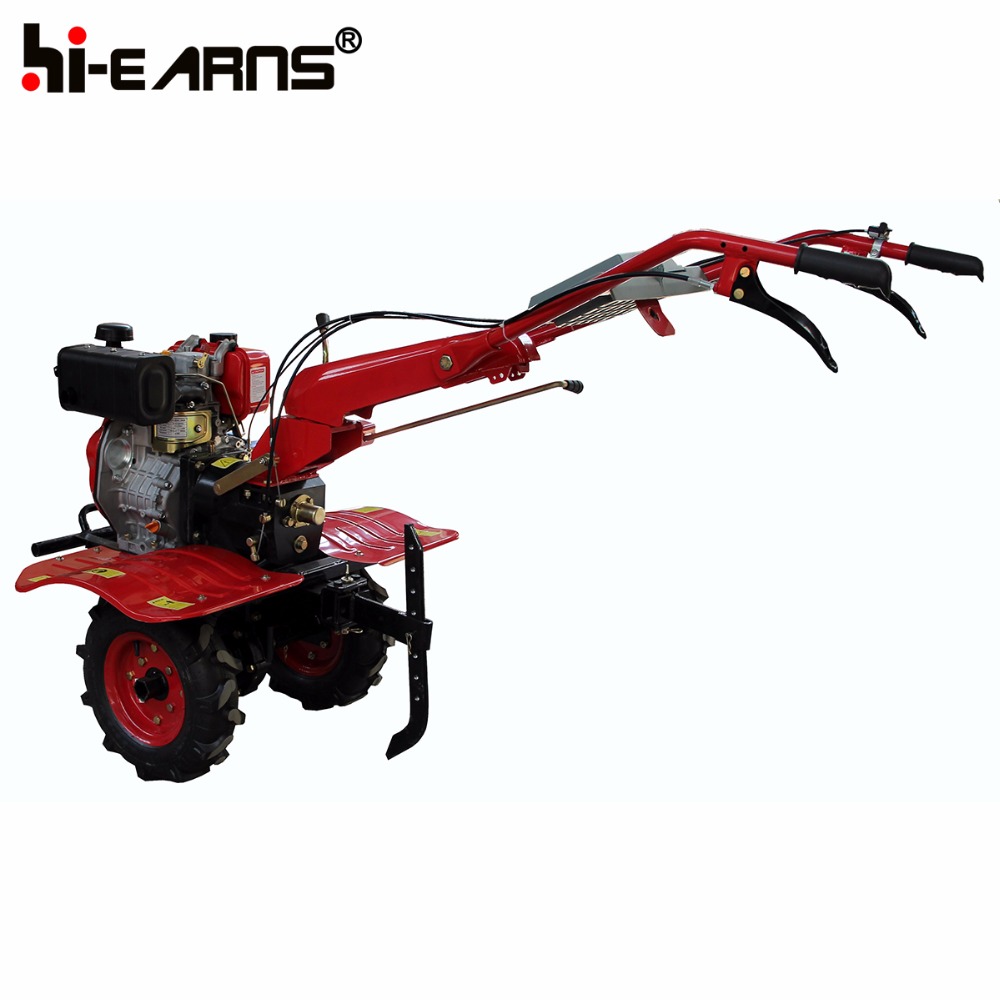

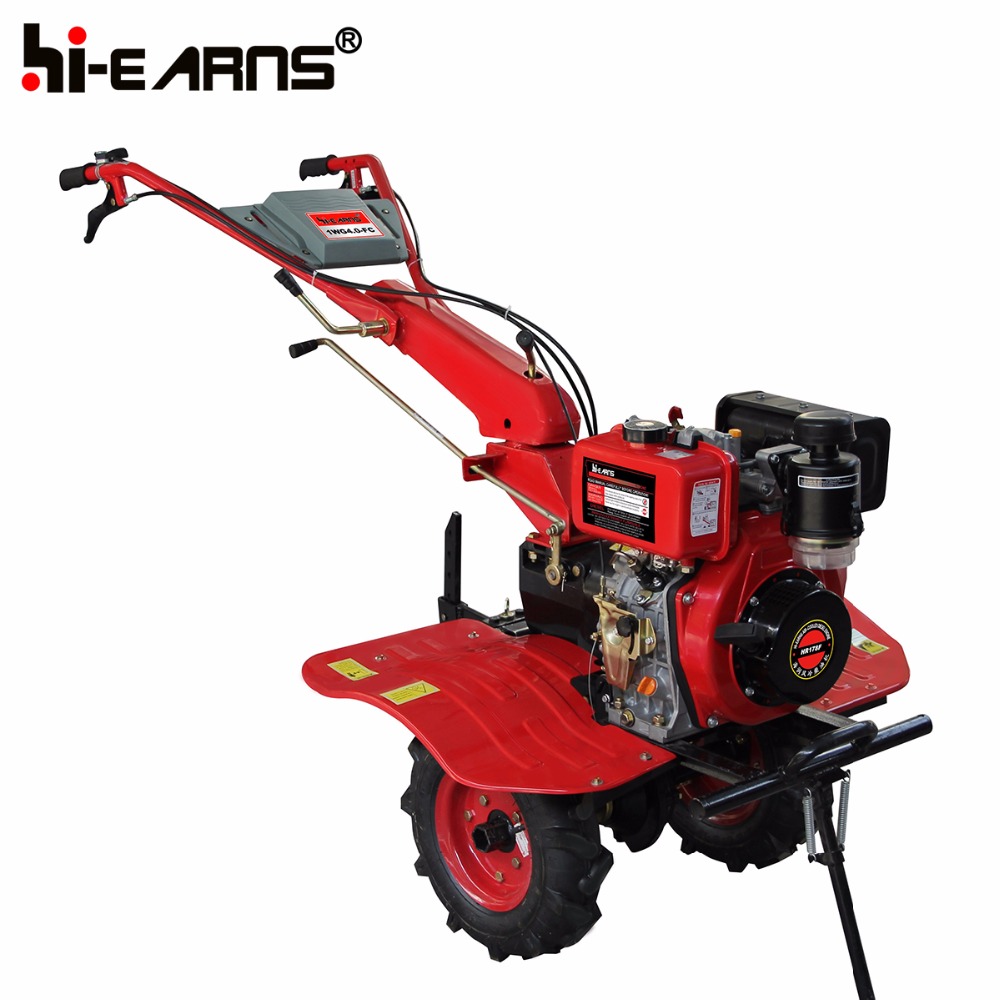

Rotary farm machinery agriculture tiller 1WG4.0-FC
1WG4.0-FC SPECIFICATION | ||||
| Item | Unit | Standard | |
1 | Engine | Model | / | 178F |
Rated power | KW | 4 | ||
Engine speed | r/min | 3600 | ||
2 | Power tiller | M.T | mm | 1210*690*1030 |
Weight | kg | 125 | ||
Displacement | ml | 406 | ||
Working width | cm | 105 | ||
Working depth | cm | ≥10 | ||
Working speed | m/s | 0.1-0.3 | ||
Hour production | hm²/h·m | ≥0.04 | ||
Fuel consumption | kg/hm² | ≤1.6 | ||
Drive way | / | Gear | ||
Connection method | / | Direct coupled gearbox | ||
3 | Roll turning | Designed speed | r/min | First Gear:115;Second Gear:137 |
Blade diameter | mm | 180 | ||
Total number | Piece | 24 | ||
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
