- Warranty:
- 1 Year
- Power Type:
- Diesel
- Dimension(L*W*H):
- 1210X690X1030mm
- Applicable Industries:
- Building Material Shops, Manufacturing Plant, Farms, Construction works
- Condition:
- New
- Type:
- Farm Cultivator
- Certification:
- ISO9001-2015
- Use:
- farm using
- Place of Origin:
- Jiangsu, China
- Brand Name:
- hiearns
- Weight:
- 115kgs
- After-sales Service Provided:
- Video technical support
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Air filter:
- Oil bath
- Noise:
- Low level
- Fuel tank:
- 5.5L
- Fuel pump:
- Best quality
- Displacement:
- 296cc
- Engine speed:
- 3600rpm
- Starting system:
- Recoil or electric
- Shaft type:
- Spline shaft
- Engine model:
- HR178F
- Supply Ability:
- 200 Piece/Pieces per Day
- Packaging Details
- Wooden box, packed in parts
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 10 15 To be negotiated

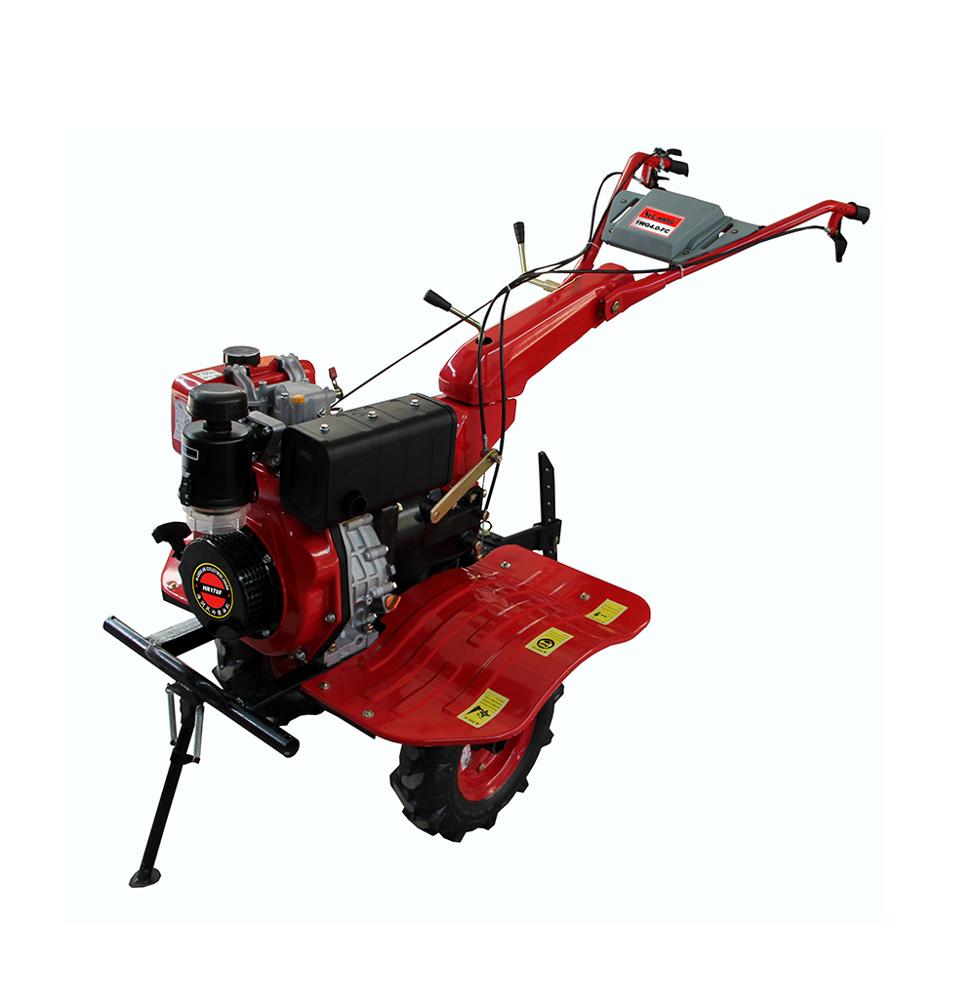

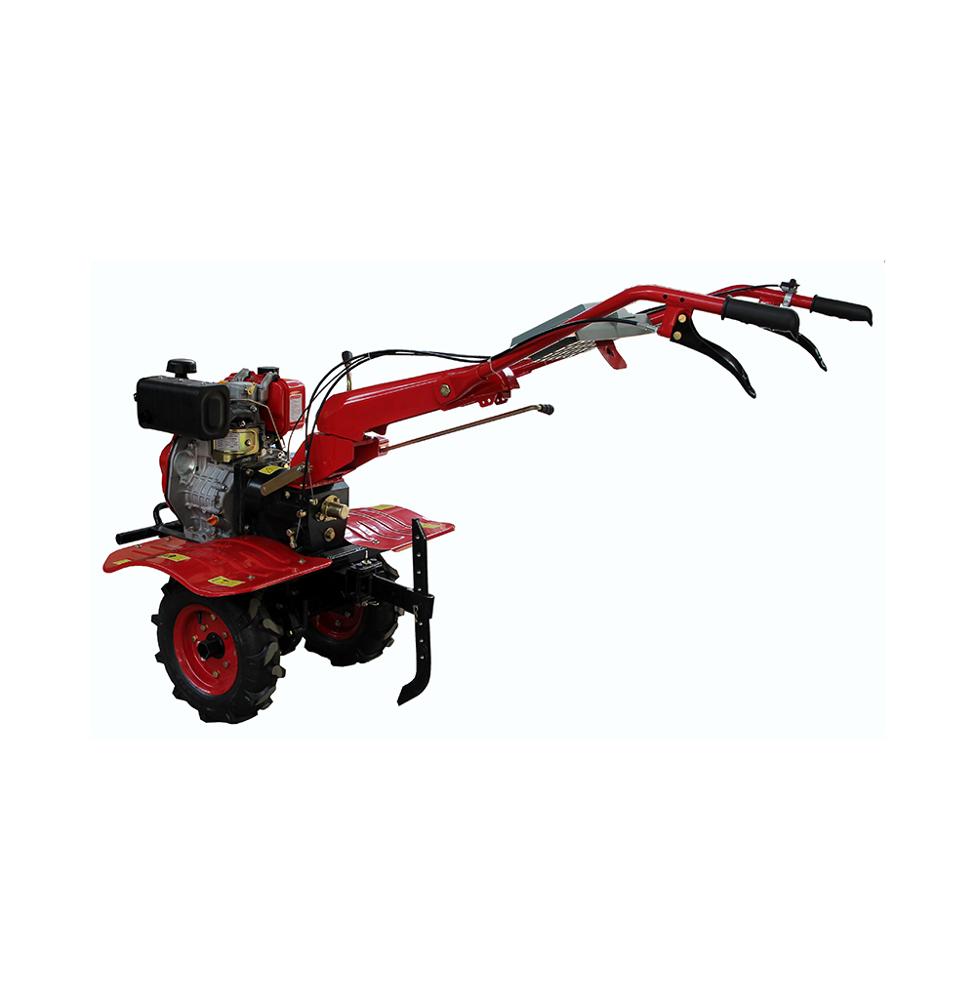

Agriculture Machine tiller air cooled diesel engine 178F
1WG4.0-FC SPECIFICATION | ||||
No | Item | Unit | Standard | |
1 | Engine | Model | / | 178F |
Rated power | KW | 4 | ||
Engine speed | r/min | 3600 | ||
2 | Power tiller | M.T | mm | 1210*690*1030 |
Weight | kg | 115 | ||
Displacement | ml | 296 | ||
Working width | cm | 105 | ||
Working depth | cm | ≥10 | ||
Working speed | m/s | 0.1-0.3 | ||
Hour production | hm²/h·m | ≥0.04 | ||
Fuel consumption | kg/hm² | ≤25.0 | ||
Drive way | / | Gear | ||
Connection method | / | Direct coupled gearbox | ||
3 | Roll turning | Designed speed | r/min | First Gear:115;Second Gear:137 |
Blade diameter | mm | 180 | ||
Total number | Pcs | 24 | ||
