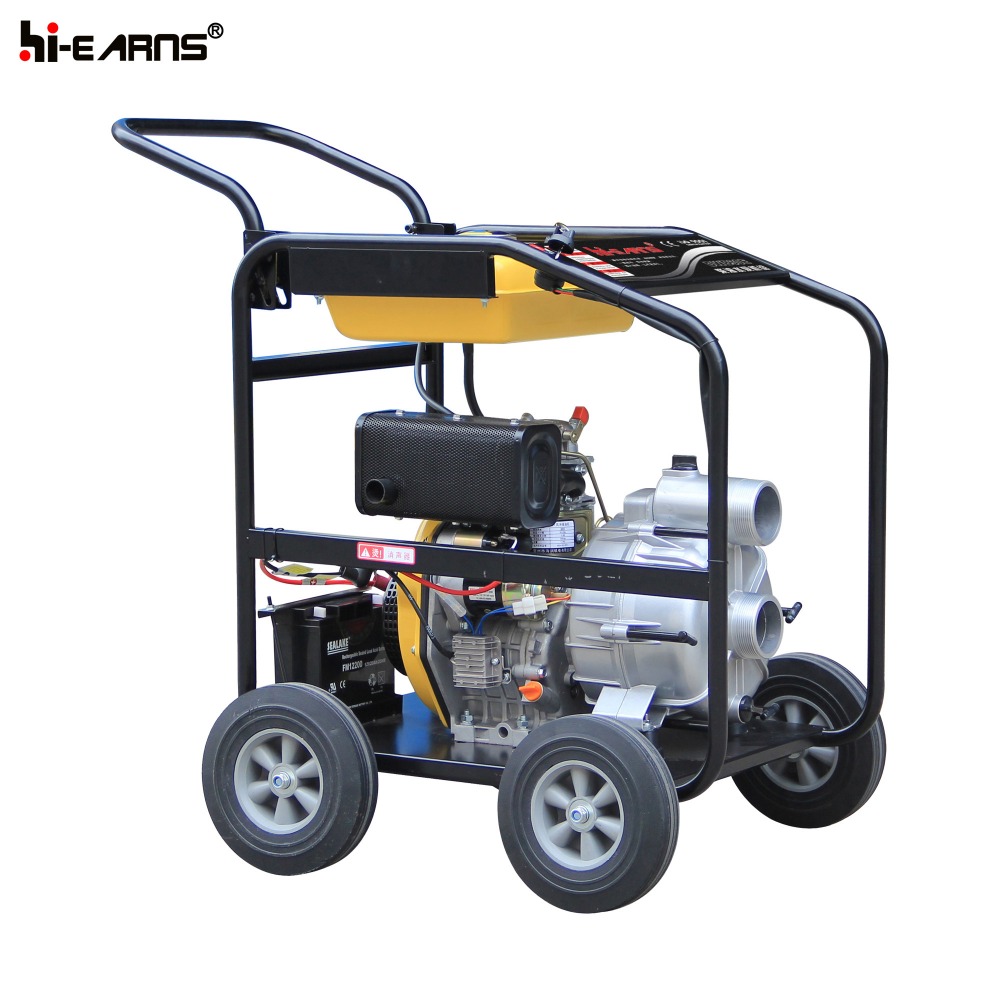

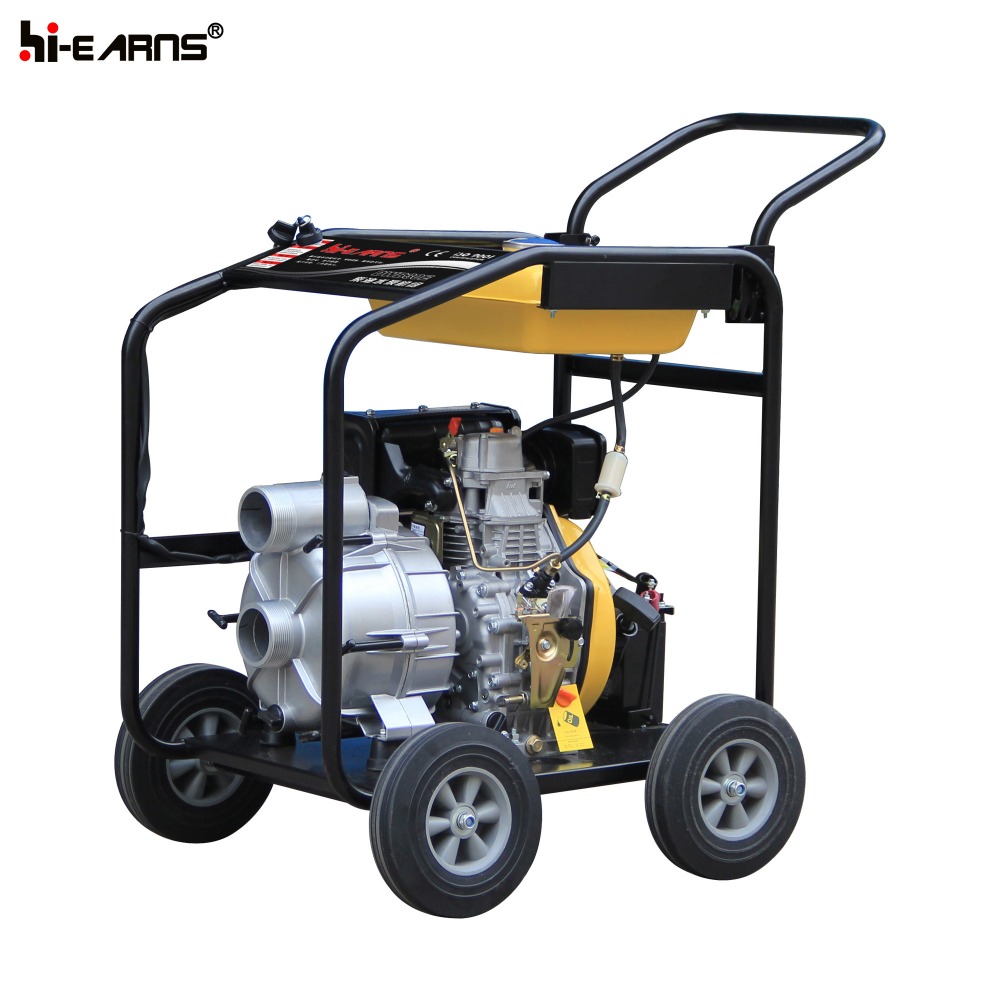

3 inch electric starting trash diesel water pump
Related Products
| WATER PUMP | Model | DWB30 | |
| Suction,discharge port diameter[mm(in)] | 80(3"") | ||
| Cont.head(m) | 25 | ||
| Self-priming time(s/4m) | 120 | ||
| Max suction head(m) | 7 | ||
| Cont.capacity(m³/hr) | 45 | ||
| ENGINE | Engine model | HR178F | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 295 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 296 | ||
Bore*stroke(mm) | 78*62 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 3.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 815×530×660 | |
| Net weight(kg) | 92 | ||
| 20FT | 84 | ||
Diesel water pump
What we offer
Hi-earns & Service
Our Services
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
♦ If you find one even more products match what you need, So do not hesitate to contact us by each of followed type:
