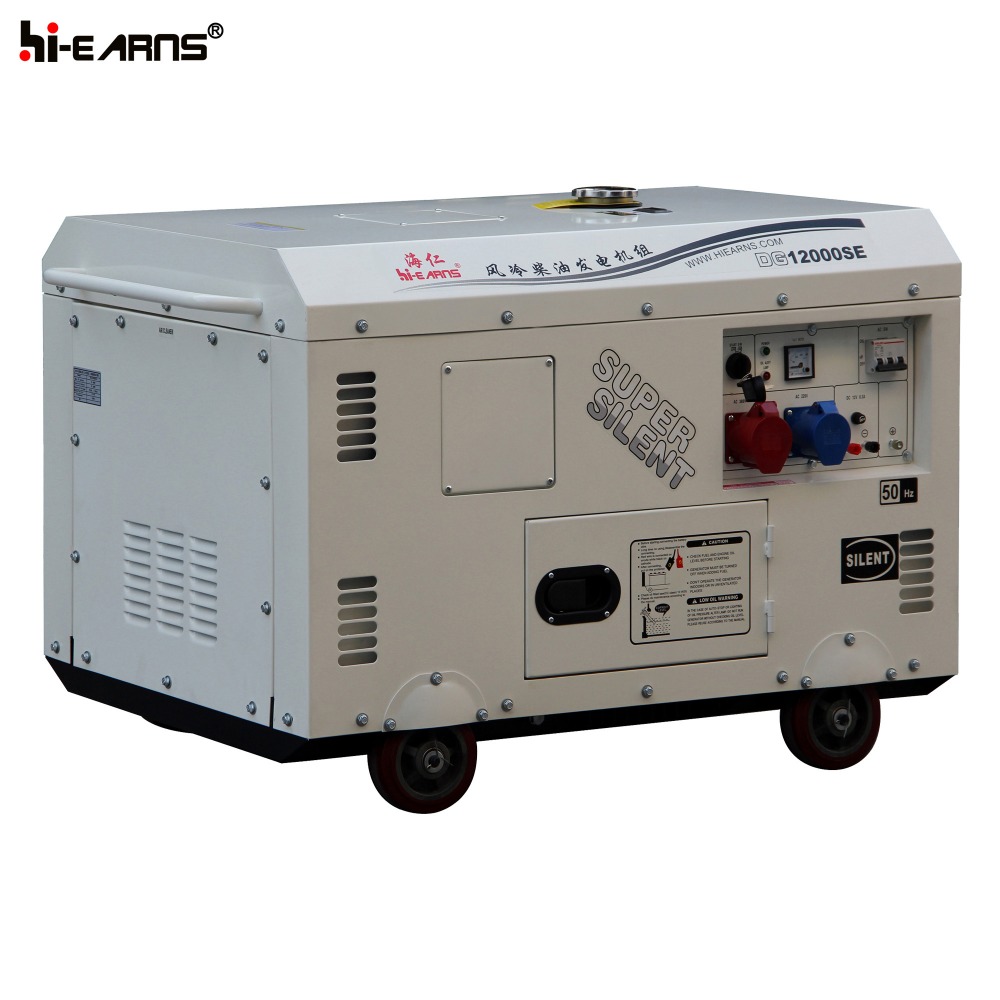

10KVA DC circuit breaker silent white canopy diesel generator
♦DG12000SE model: With 18HP 2V86F two-cylinder diesel engine and 100% copper wire KETE alternator ensure a 8.5KVA rated output and 9KVA max. output.
♦Silent model with 4 wheesl ensure easy moving, 9KVA output, best choice for home use!
| GENERATOR | Model | DG12000SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 9 | 9.5 | |
| Rated output(kw) | 8.5 | 9 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase or Three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 86 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 9.4 | 8.4 | |
| ENGINE | Model | 2V86 | |
| Engine type | Two-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86× 72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.7 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | no | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 1230× 750× 840 | |
| Net weight(kg) | 265 | ||
| 20FT | 26 | ||
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
