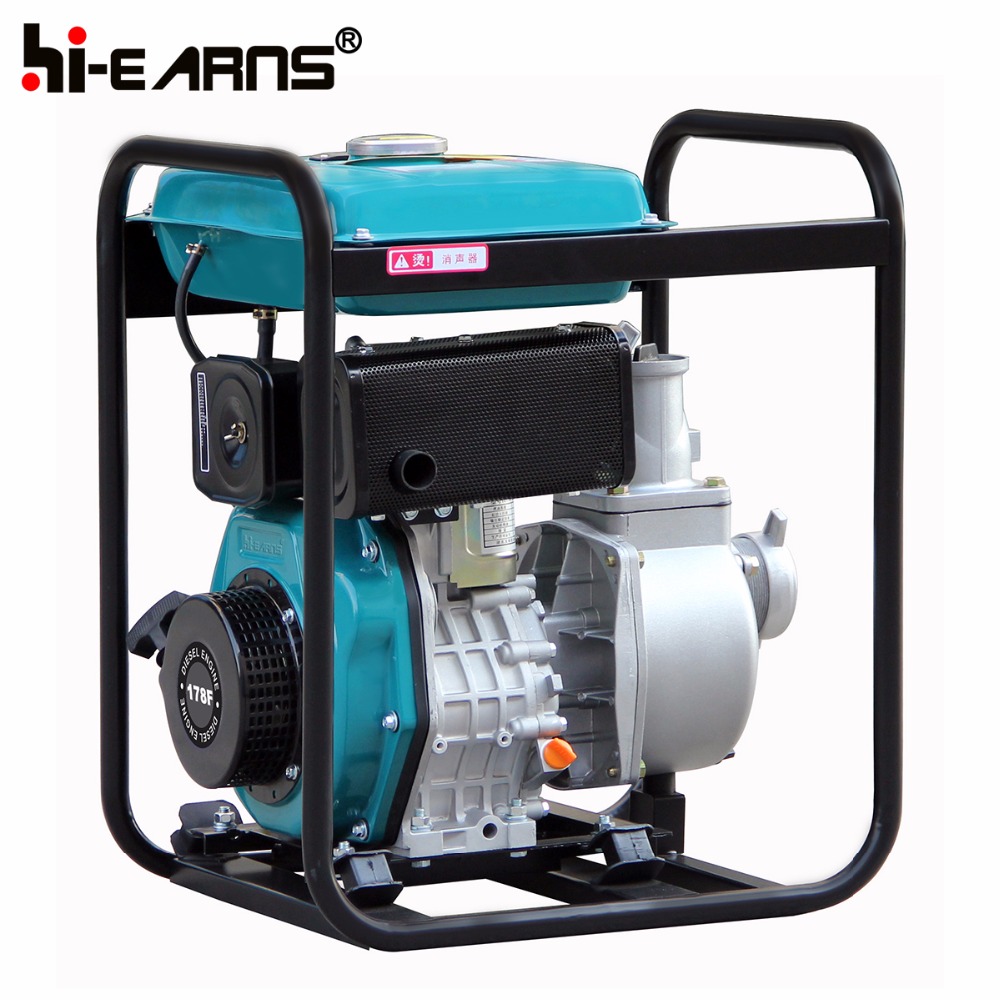

3 inch centrifugal water pumps DP30
| WATER PUMP | Model | DP30 | |
| Suction,discharge port diameter[mm(in)] | 80(3"") | ||
| Cont.head(m) | 28 | ||
| Self-priming time(s/4m) | 120 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 50 | ||
| ENGINE | Engine model | HR178F | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 295 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 296 | ||
Bore*stroke(mm) | 78*62 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 3.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 560×465×565 | |
| Net weight(kg) | 47 | ||
| 20FT | 192 | ||
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
1.We actively attend every internal and international fair to show our products.
2.Our sales network covers all over the world,
we are looking forward to cooperating with you.
3.Any time you need us, we are here!
