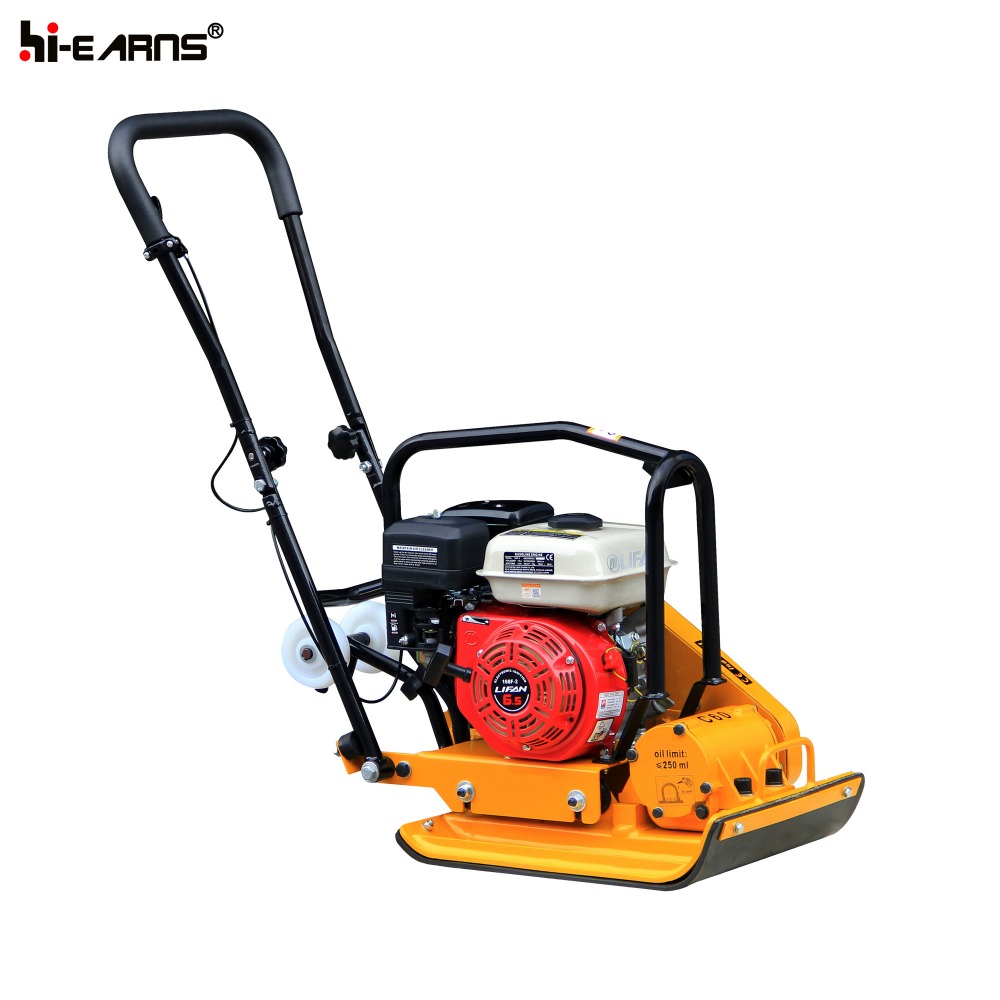

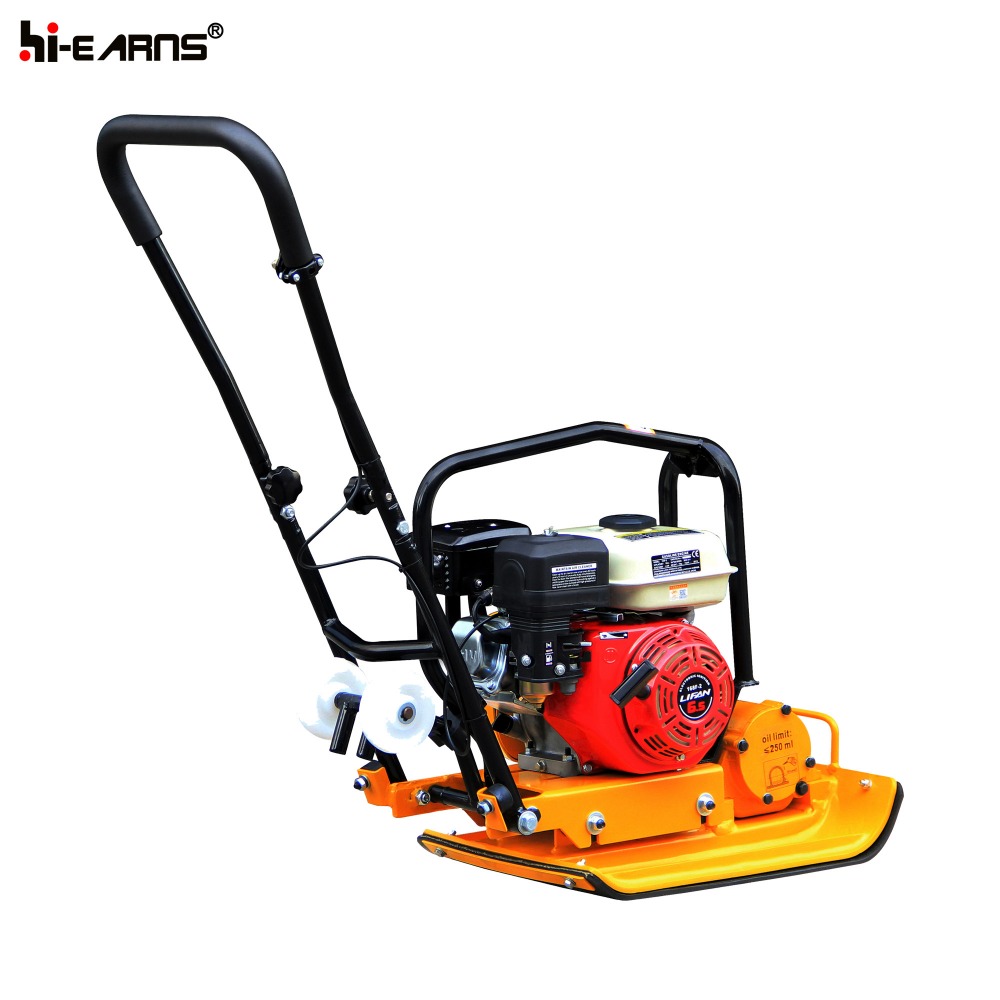

Road makeing machine vibrating plate compactor
♦Water tank and wheeles are optional, the plate compactore machine can work more efficiency;
♦ Recoil and Electric start are optional ensure easy start!
| model | HRC60 | |||
| engine | Robin EY20 | Honda GX160 | Diesel 170F | Chinese Gasoline Engine 168F |
| power(hp) | 5 | 5 | 4 | 5.5 |
| operation weight(kgs) | 61 | 62 | 65 | 62 |
| frequency(vpm) | 5400 | |||
| centrifugal force(kn) | 10.5 | |||
| compaction force(cm) | 20 | |||
| travel speed(cm/s) | 40 | |||
| efficiency(m²/hr) | 450 | |||
| plate size(cm) | 50*36 | |||
| dimensions(cm) | 108*40*80 | |||
♦ Strict and Accurate incoming raw material quality control systemd(IQC), ensure the engine running in the best condition.
♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;
♦ Flow card ro record each details carefully;
♦ From the engine to generator, we all use 7 layer corrugated carton packing, plywood pallet, Ensure a portable and safety transport!
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
