Home > Products > 188FA model air-cooled 12HP diesel engine

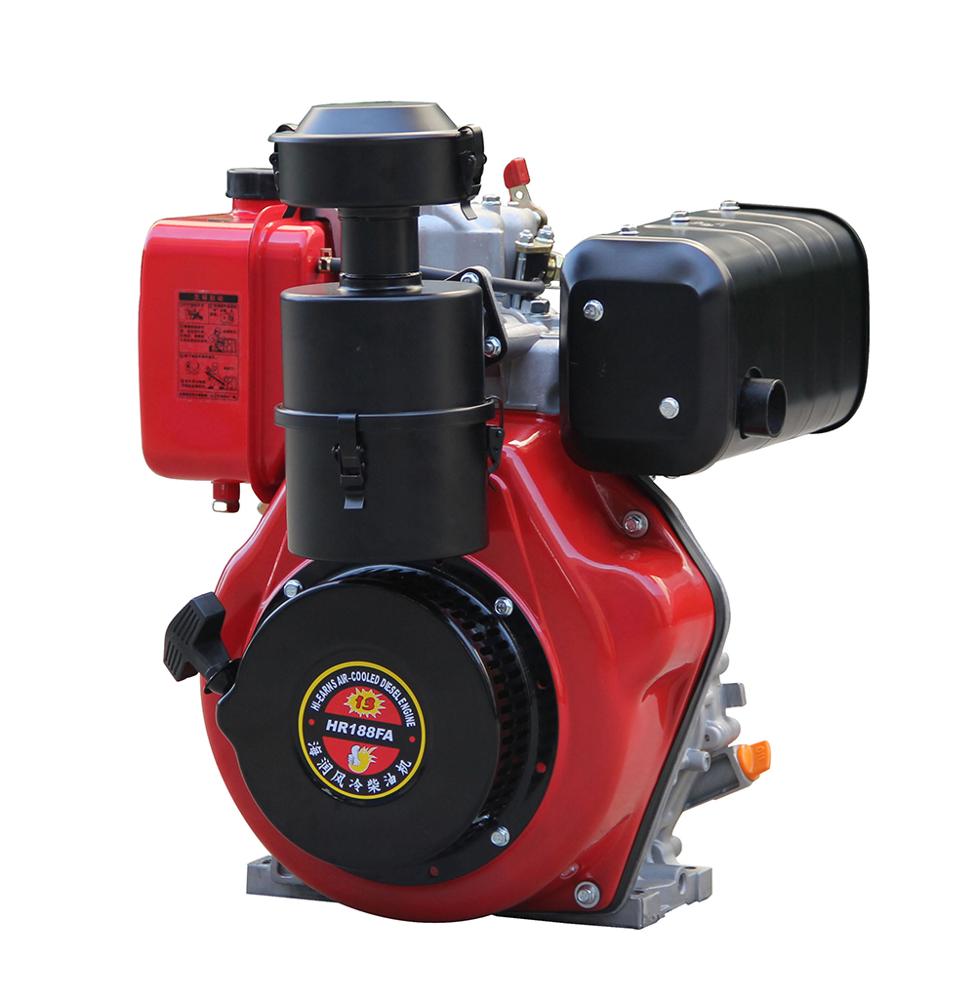

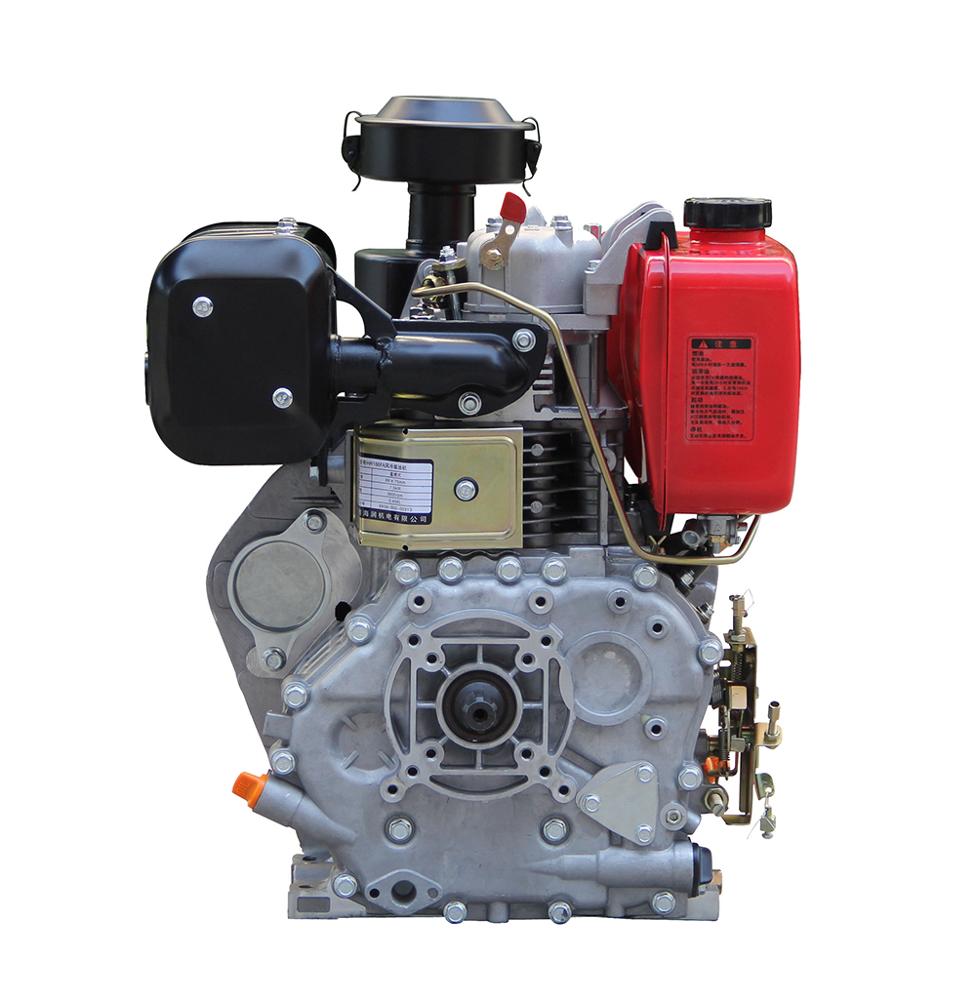

188FA model air-cooled 12HP diesel engine
Click on the image to view the original image
Product： views：38188FA model air-cooled 12HP diesel engine
Branch： Hi-earns
Size： 49X43X51 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:37
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
recoil start
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Dimension(L*W*H):
417*470*494
Weight:
55KG
Certification:
CE, ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Engine power:
12HP diesel engine
Engine type:
Vertical, air-cooled, single cylinder
Output type:
Spline shaft
Displacement:
456cc
Starting system:
Recoil & Electric start
BORE*STROKE:
88x75

Packaging & Delivery

Selling Units:
Single item
Single package size:
49X43X51 cm
Single gross weight:
51.0 kg
Package Type:
carton
Lead Time:
Quantity(Set)1 - 1011 - 25>25
Est. Time(days)715To be negotiated
Video Description



188FA model air-cooled 12HP diesel engine



Related Products

HR188FA model: 12HP rated output, Air-cooled 4-stroke small diesel engine.



Keyway shaft, spline shaft, camshaft and so on output type are optional.



Recoil or Electric start also optional ensure easy starting.



ModelHR188FA
Bore×stroke(mm)88×75
Displacement(cc)438
Engine speed(rpm)30003600
Max.output(kw)7.58.0
Continuous output(kw )      7.07.5
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L)5.5
Rube oil capacity(L)1.65
Dimension(mm)417×470×494
Net weight(kg)

45/51

Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
