Home > Products > 188FA single cylinder Italian type 12HP diesel engine

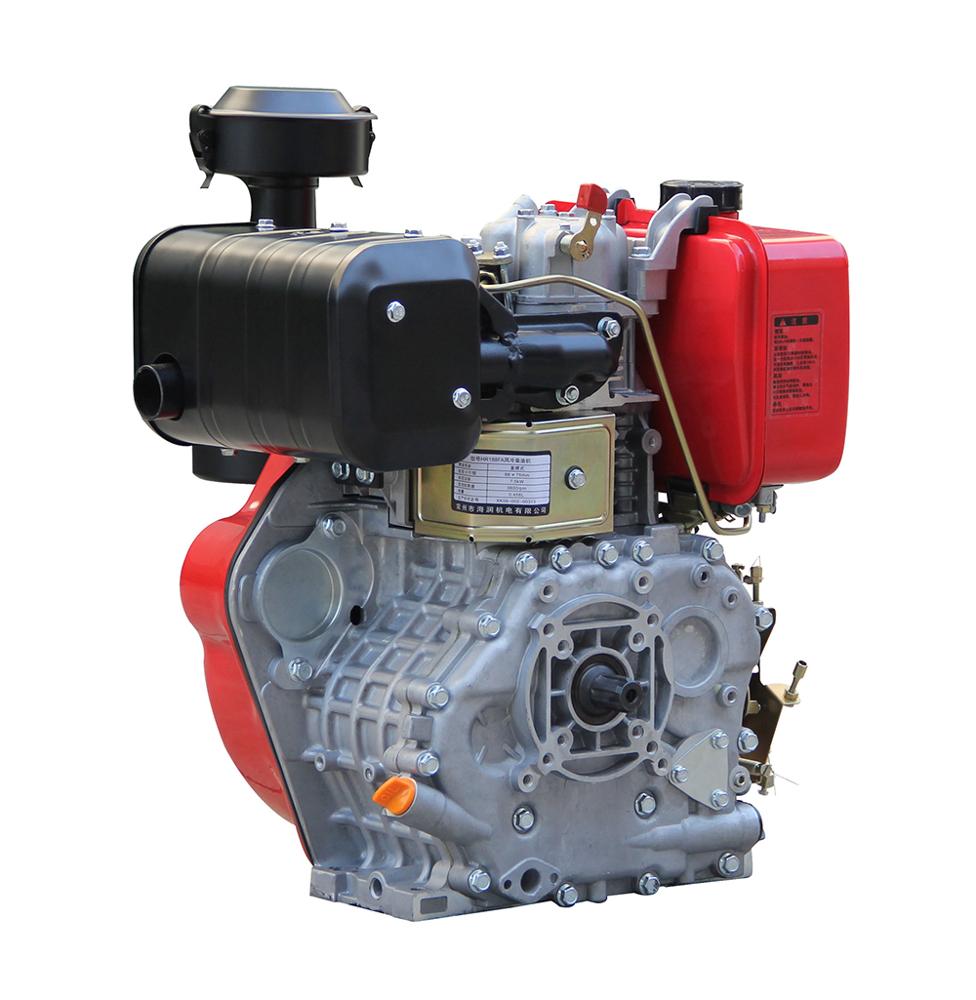

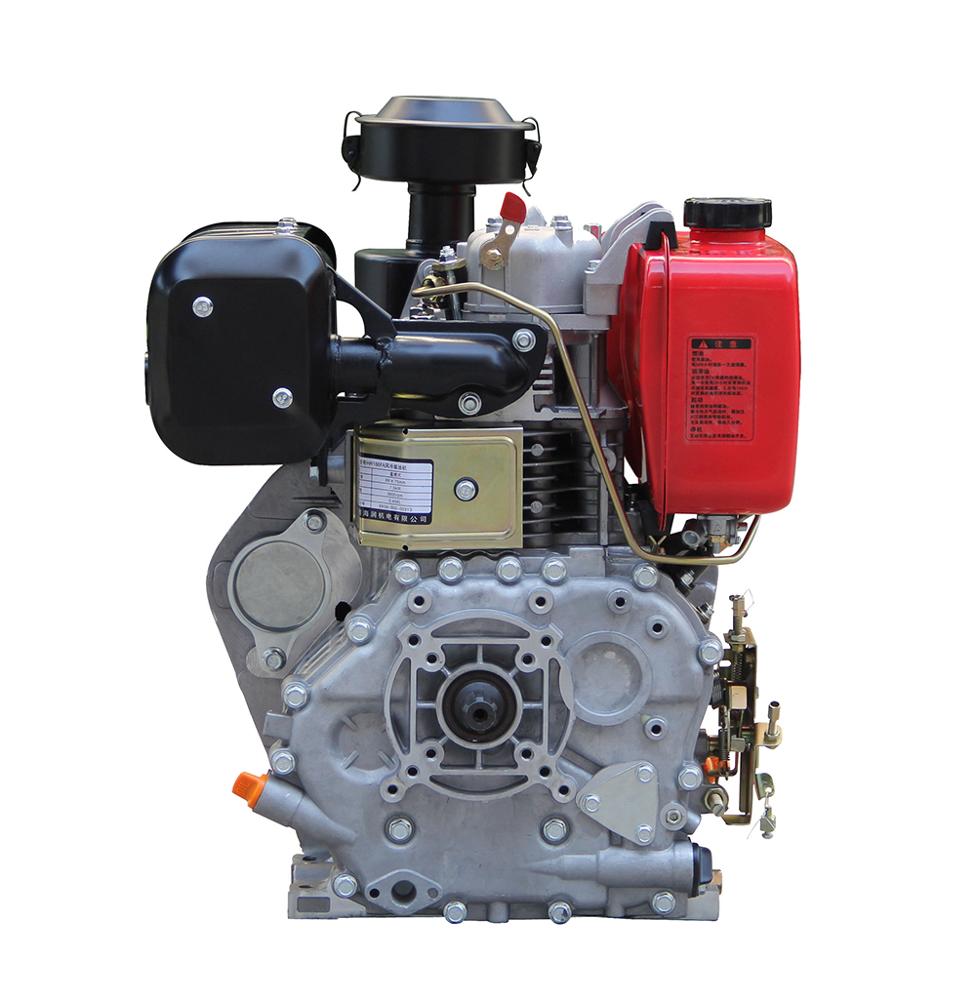

188FA single cylinder Italian type 12HP diesel engine
Click on the image to view the original image
Product： views：4188FA single cylinder Italian type 12HP diesel engine
Branch： Hi-earns
Type： Italy type
Size： 49X42X51 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:37
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
Electric start
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Dimension(L*W*H):
417*470*494
Weight:
55KG
Certification:
CE, ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
color:
optional
engine power:
12HP
Engine type:
Air-cooled 4-stroke
Displacement:
456cc
Starting system:
Recoil & Electric Start
Type:
Italy type
BORE*STROKE:
88x75mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
49X42X51 cm
Single gross weight:
51.0 kg
Package Type:
carton PACKING
Lead Time:
Quantity(Set)1 - 1011 - 25>25
Est. Time(days)1520To be negotiated
Video Description
Related Products

188FA single cylinder Italian type 12HP diesel engine



HR188FA model: 12HP rated output, Air-cooled 4-stroke small diesel engine.



Keyway shaft, spline shaft, camshaft and so on output type are optional.



Recoil or Electric start also optional ensure easy starting.ensuretor



ModelHR188FA
Bore×stroke(mm)88×75
Displacement(cc)438
Engine speed(rpm)30003600
Max.output(kw)7.58.0
Continuous output(kw )      7.07.5
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L)5.5
Rube oil capacity(L)1.65
Dimension(mm)417×470×494
Net weight(kg)45/51
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
