Click on the image to view the original image
- Warranty:
- One year
- Power Type:
- Diesel
- Dimension(L*W*H):
- 1210X690X1030mm
- Applicable Industries:
- Building Material Shops, Farms, Construction works
- Condition:
- New
- Type:
- Farm Cultivator
- Certification:
- CE ISO
- Use:
- farm use
- Place of Origin:
- Jiangsu, China
- Brand Name:
- hiearns
- Weight:
- 130kg
- After-sales Service Provided:
- Free spare parts, Video technical support
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Noise:
- Low level
- Air filter:
- Oil bath
- Fuel tank:
- Best quality
- Fuel pump:
- Best quality
- Engine speed:
- 3600
- Shaft types:
- Spline shaft
- Fuel tank capacity:
- 5.5
- Engine model:
- HR186FA
- Starting system:
- Recoil or electric start
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 123X79X110 cm
- Single gross weight:
- 200.0 kg
- Package Type:
- Wooden with plastic film or carton with plastic film
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 15 25 To be negotiated

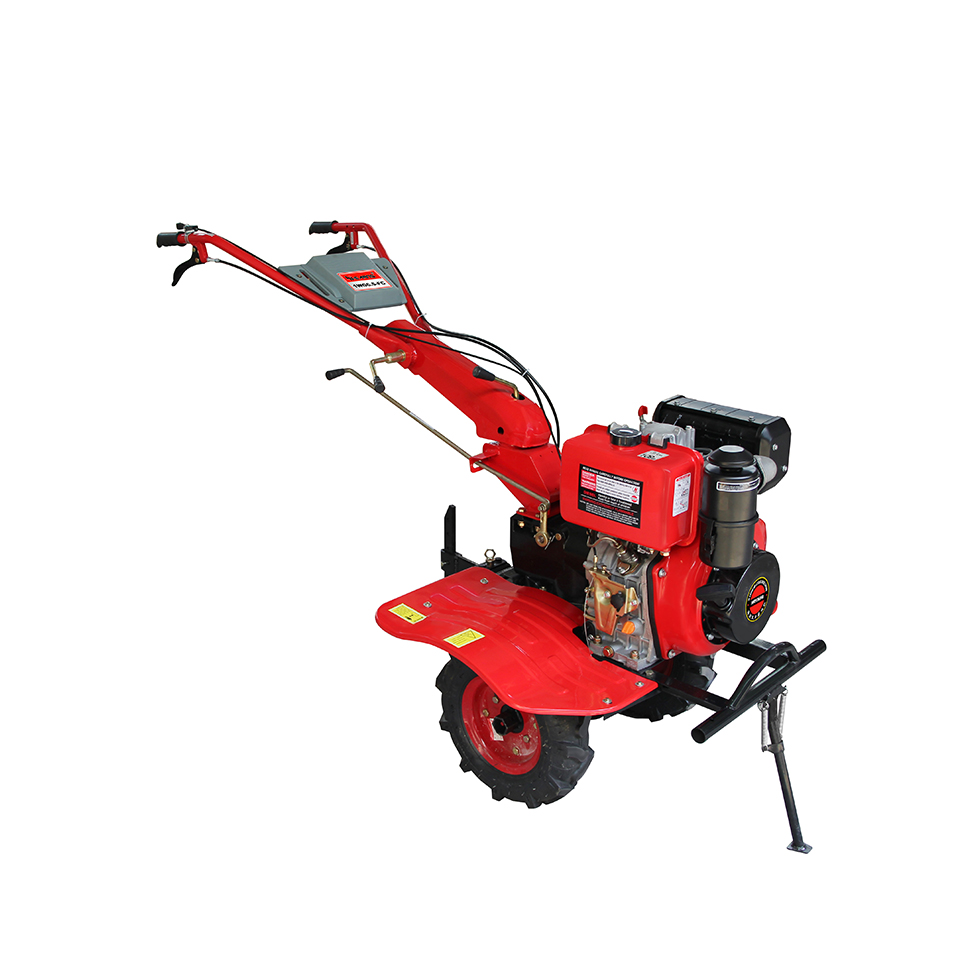

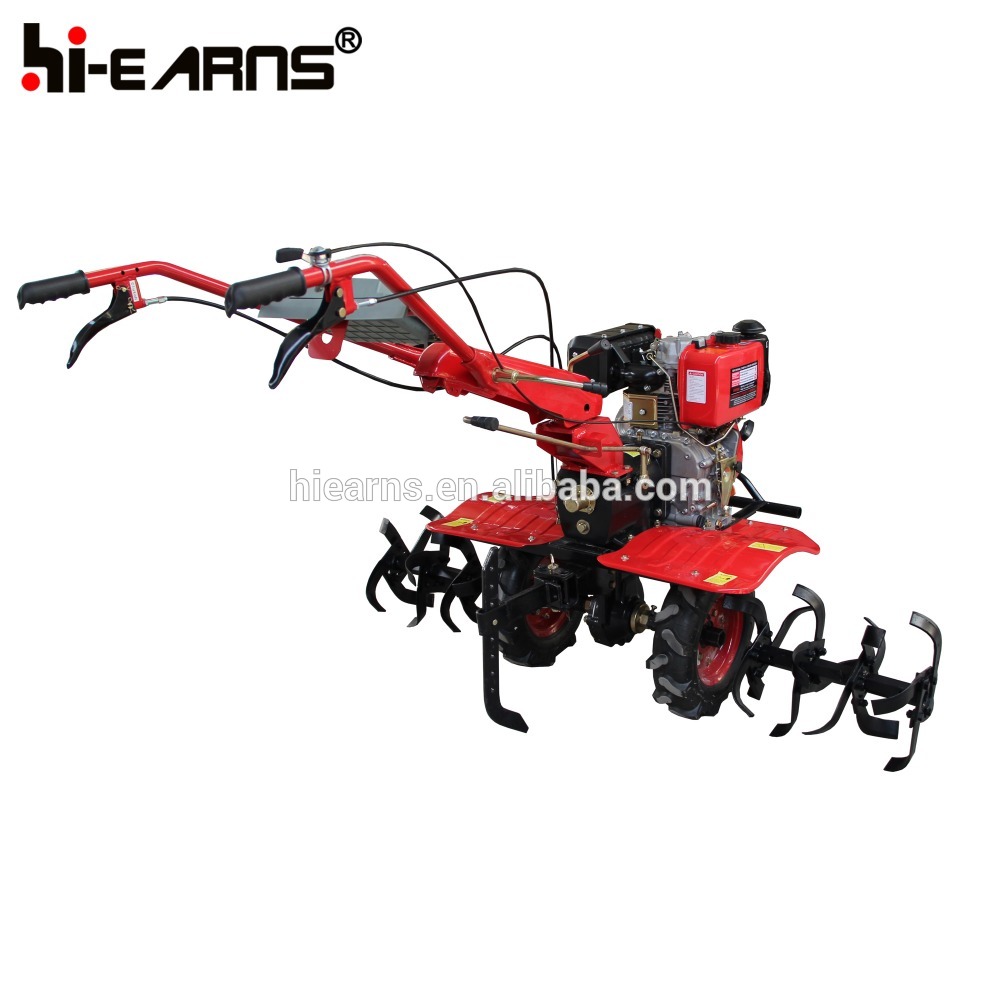

Agriculture machine tiller specification
Model | Unit | 1WG3.5FC | 1WG4.0-FC | 1WG6.5-FC | |
Engine | Model | / | HR170F | HR178F | HR186FA |
Rated power | KW | 3.5 | 4 | 6.5 | |
Engine speed | r/min | 3600 | 3600 | 3600 | |
Power tiller | M.T | mm | 840*600*900 | 1210*690*1030 | 1210*690*1030 |
Weight | kg | 90 | 125 | 130 | |
Displacement | ml | 211 | 296 | 418 | |
Working width | cm | 90-100 | 105-120 | 105-120 | |
Working depth | cm | ≥10 | 12-30 | 12-30 | |
Working speed | m/s | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | |
Hour production | hm²/h·m | ≥400 | ≥400 | ≥400 | |
Fuel consumption | kg/hm² | ≤1.9 | ≤1.6 | ≤2.5 | |
Drive way | / | Gear | Gear | Gear | |
Connection method | / | Direct coupled gearbox | Direct coupled gearbox | Direct coupled gearbox | |
Roll turning | Designed speed | r/min | First Gear:115;Second Gear:137 | First Gear:115;Second Gear:137 | First Gear:115;Second Gear:137 |
Blade diameter | mm | 180 | 190 | 190 | |
Total number | Piece | 50 | 26 | 26 | |
