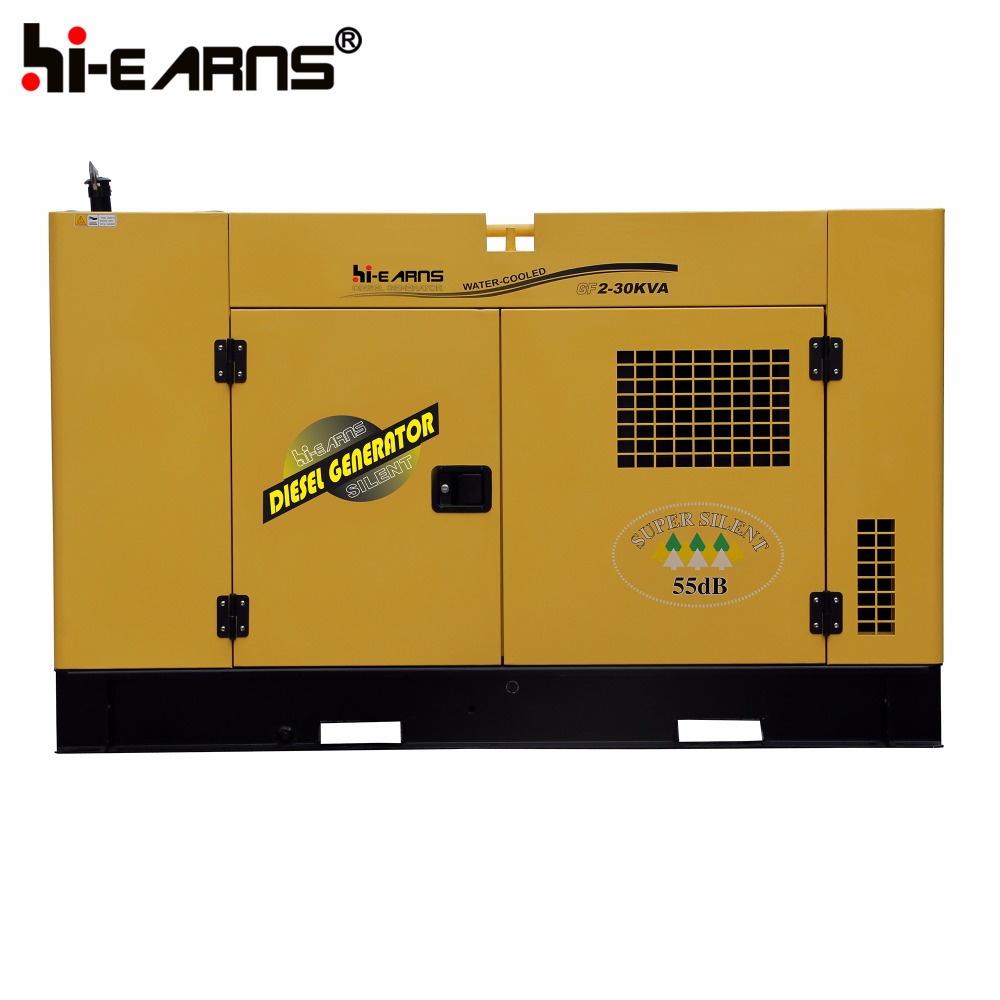

30KVA super silent for house 30kw diesel generator
♦ Use good brand chinese engine, brushless alternator
♦ Canopy designed by ourselves, unique type, super silent
♦ We are factory, have low price spare parts and timely technical support.
Model | GF2-30KVA |
Standby power (50HZ) | 25KW / 31KVA |
Prime power (50HZ) | 24KW / 30KVA |
Voltage (V) | 220/380V |
Phase | 3 |
Power factor (cosφ) | 0.8 |
Standby amps (A) | 47 |
Engine type | Quanchai Engine 4102D, 4-stroke, water-cooled, direct line |
Rated RPM (r/min) | 1500rpm |
Cooling system | Forced water-cooled |
Fuel consumption (g/kw.h) | ≤ 238 |
Rated speed regulation | ≤ 5 |
Bore x stroke (mm) | 102 x 118 |
Displacement (L) | 3.857 |
Start Method | Electric start |
Add oil capacity (L) | 8L |
Alternator Data | |
Power factor | 0.8 Lag |
Insulation class | H |
Lubricating system | Pressure, split, complex |
Exciter type | Brushless, self-exciting |
Altitude | ≤ 1000m |
Environment temperature (°C) | 40 |
Connecting type | 3 phase and 4 wires, "Y" type connecting |
Protection grade | IP23 |
Intake type | Natually-Aspirated |
Rated speed regulation % | ≤±1% |
Phase | 3 |
Overall size (m) | 2.12 x 0.97 x 1.23(m) |
Weight (kg) | 812kg |
♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-1000KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor,
concrete cutter, power trowel, farm machinery and so on ♦ Use famous brand spare parts
♦ ISO, CE, GS approved supplier
♦ One year warranty, complete spare parts for after-sales services
♦ Low price with good quality, reliable performance
♦ Easy to start and operate, convenient to move
♦ Low fuel consumption, easy maintenance
♦ Our logo or OEM
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
♦ Line 1: TAXI
Shanghai International Airport(Pudong)
Cost(USD): 85
Time: 2.5 hours
Shanghai HongQiao railway station---Changzhou railway station
Cost(USD): 20
Time: 1 hours
♦ With all the technical advantages, we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
