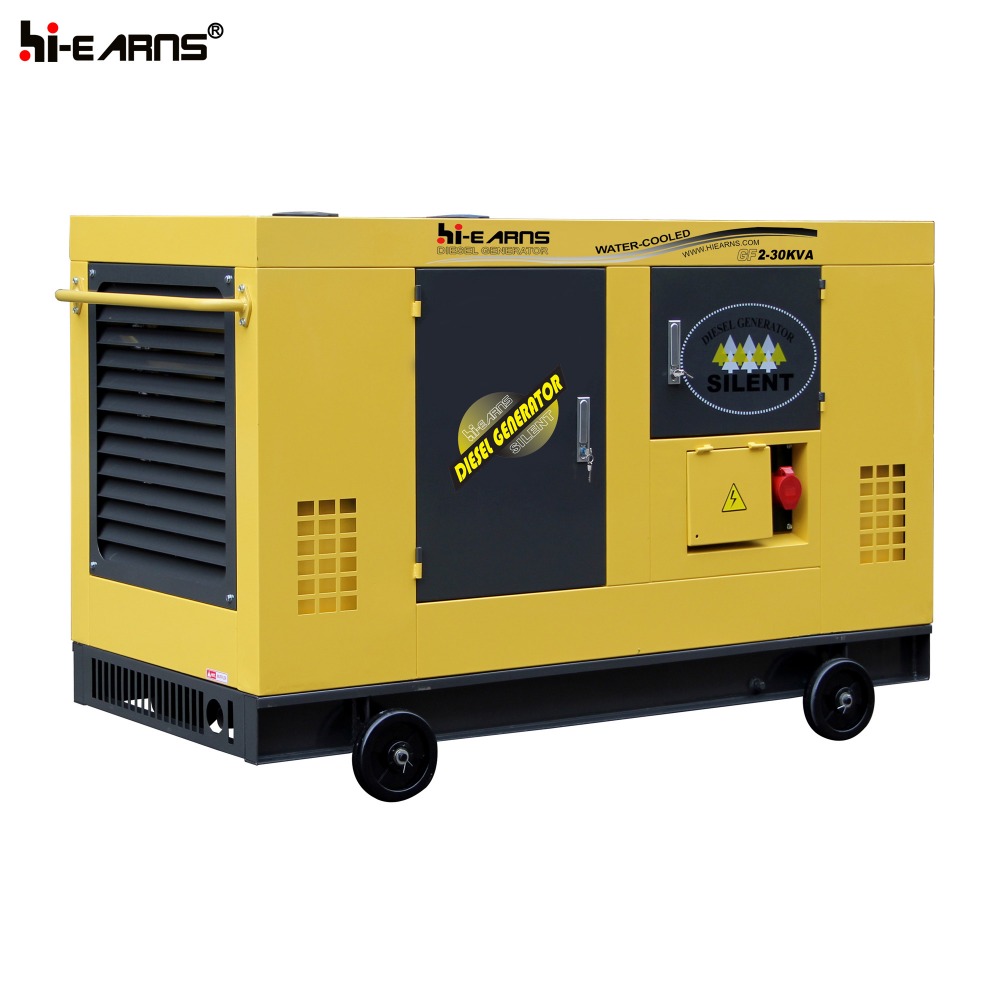

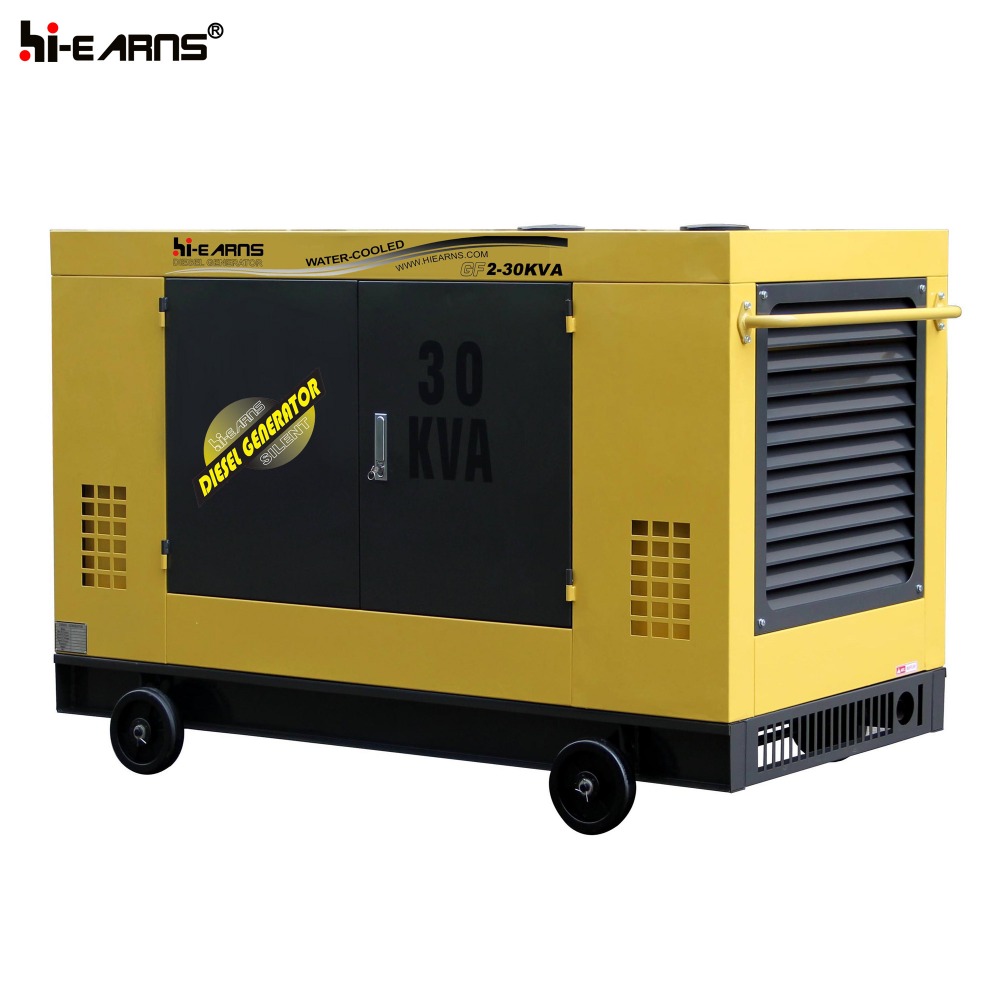

GF2-30KVA water-cooled silent type diesel generator with wheels and handle

Click on the image to view the original image

Product：	views：11GF2-30KVA water-cooled silent type diesel generator with wheels and handle
Branch：	hiearns:Water-cooled silent diesel generator(GF2-30KVA)
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:37

Product Details

Overview

Quick Details

Supply Ability

Packaging & Delivery

Standby Power	25 KW / 31.25KVA
Prime Power	24KW / 30KVA
Model	4102D
Cylinder Number	4
Bore×Stroke(mm)	102×118
Displacement(L)	3.857
Rated RPM(r/min)	1500
Rated Speed Regulation %	≤5
Rated Fuel Consumption(g/kW·h)	≤238
Cylinder Head Type	Dry type
Diesel Generator Type	Direct line,Water-cooled,Four stroke
Intake Type	Natually-Aspirated
Combustion Chamber Type	Direct Injection
Lubricating System	Pressure,Split,Complex
Flywheel Cover Specification	SAE4#
Flywheel Specification	SAE7.5″
Exhaust Fan Diameter(mm)	φ410
Flywheel Teeth Number	109
Add Oil Capacity	6.5L
Voltage (V)	380/220
Frequency (HZ)	50
Insulation Class	H
Rated Current (A)	43.3
Phase	3
Altitude	≤1000m
Power Factor	0.8
Voltage Regulation,Stead State	≤±1%
Connecting Type	3 Phase and 4 Wires,"Y" type connecting
AVR	SX460
Environment Temperature (°c)	40
Exciter Type	Brushless,self-exciting
Protection Grade	IP23
Silent Type"s Dimension Length × Width × Height (mm)	2120×965×1200
Silent Type"s Net Weight(Kg)	802
Silent Type"s 20FT Loading Quantity	6PCS
