Home > Products > Portable Solar Water Heater 100 Liter Mini

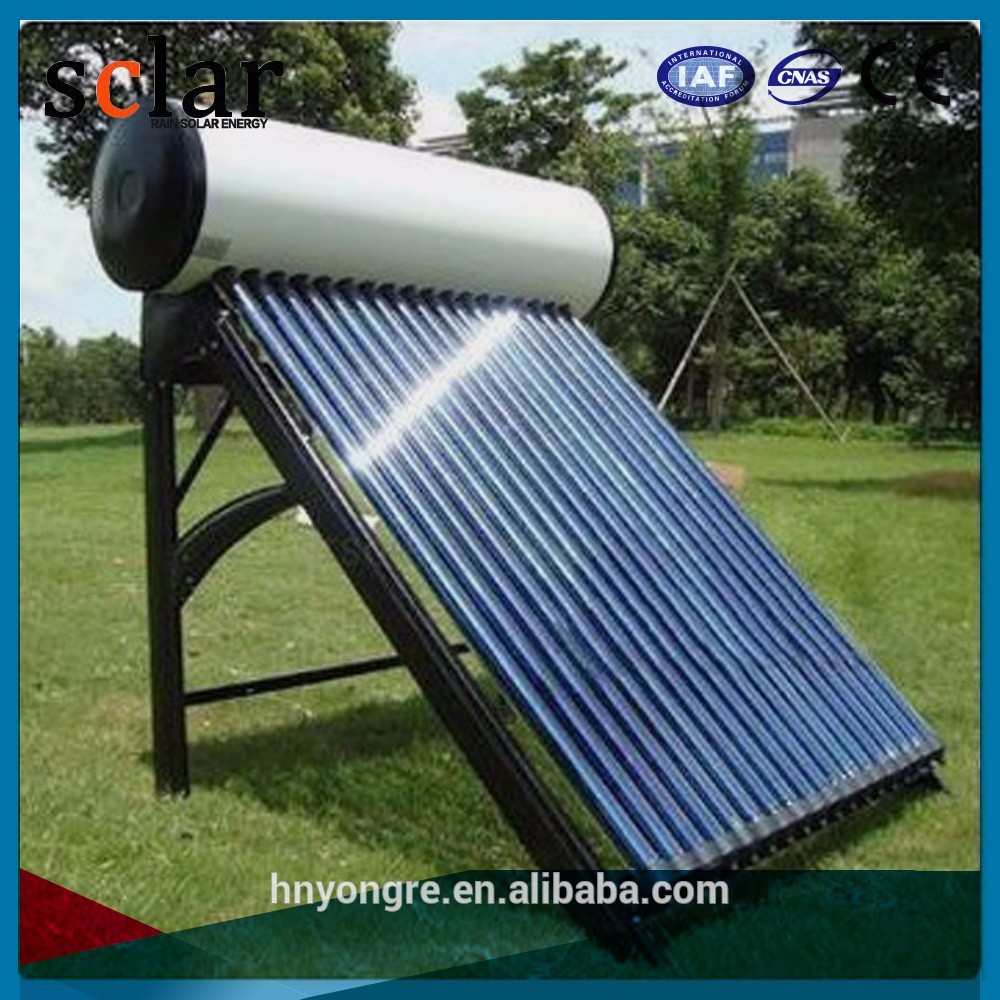

Portable Solar Water Heater 100 Liter Mini
Click on the image to view the original image
Product： views：4Portable Solar Water Heater 100 Liter Mini
Branch： Sclar, YongRe
Type： Evacuated Tube, Solar Water Heater
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:44
  Negotiated
Product Details
Overview
Quick Details
Type:
Evacuated Tube, Solar Water Heater
Pressure:
Pressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
color steel
Certification:
CE, CCC,ISO9001
Capacity:
200
Place of Origin:
Zhejiang, China, Zhejiang, China (Mainland)
Brand Name:
Sclar, YongRe
Model Number:
YR-IP-SHW
Application:
hot water, bath, shower, washing
Color:
Any
Outer tank:
Painted steel
Inner tank:
SUS304-2B stainless steel
Frame:
Painted steel
Warranty:
5 Years
Solar collector:
58*1800mm heat pipe vacuum tubes
Supply Ability
Supply Ability:
3000 Set/Sets per Month urgent orders can provide overtime production
Packaging & Delivery
Packaging Details
1.Standard package for full container solar water heaters
2.Special package for sample order
Port
Ningbo/Shanghai
Lead Time:
Shipped in 7 days after payment

SALE
ModelPressurized heat pipe 200Liters solar water heater
Vacuum tubeΦ58*1800/Φ58*2100/Φ70*2000 three-targets vacuum tube
Inner TankSUS2B-304 Stainless steel (Food grade, 0.5mm)
Outer TankStainless steel/zinc plate/color steel(0.5mm)
Thermal insulation layerPolyurethane foam(50mm)
Circulation typeDirect/Open loop
Connection typeDirect-Plug
Heating systemThermosyphon(Passive, absorb efficiency over97%)
BracketAngle of 30°,45° stainless steel/color steel
InstallationFree standing
Volume100L/160L/200L/250L/300L
Vacuum degree10^-4
Idle sunning property parametersY≥210M^2·℃/KW
Working conditionDaily solar energy≥13Mj/m²
Annual solar energy≥4200Mj/m²
6Bar
Certification and warrantyCE ISO9001  5 years
