Home > Products > High density heat insulation solar energy water heater hot water tank

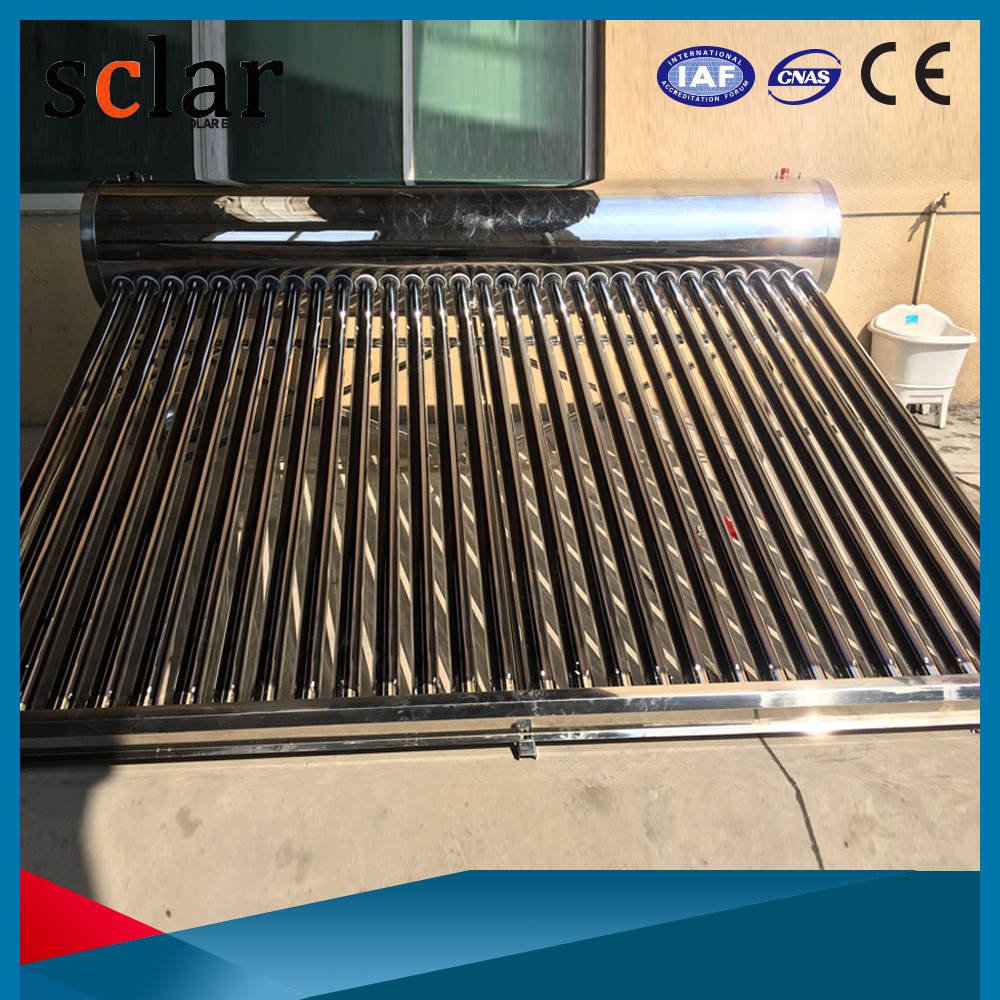

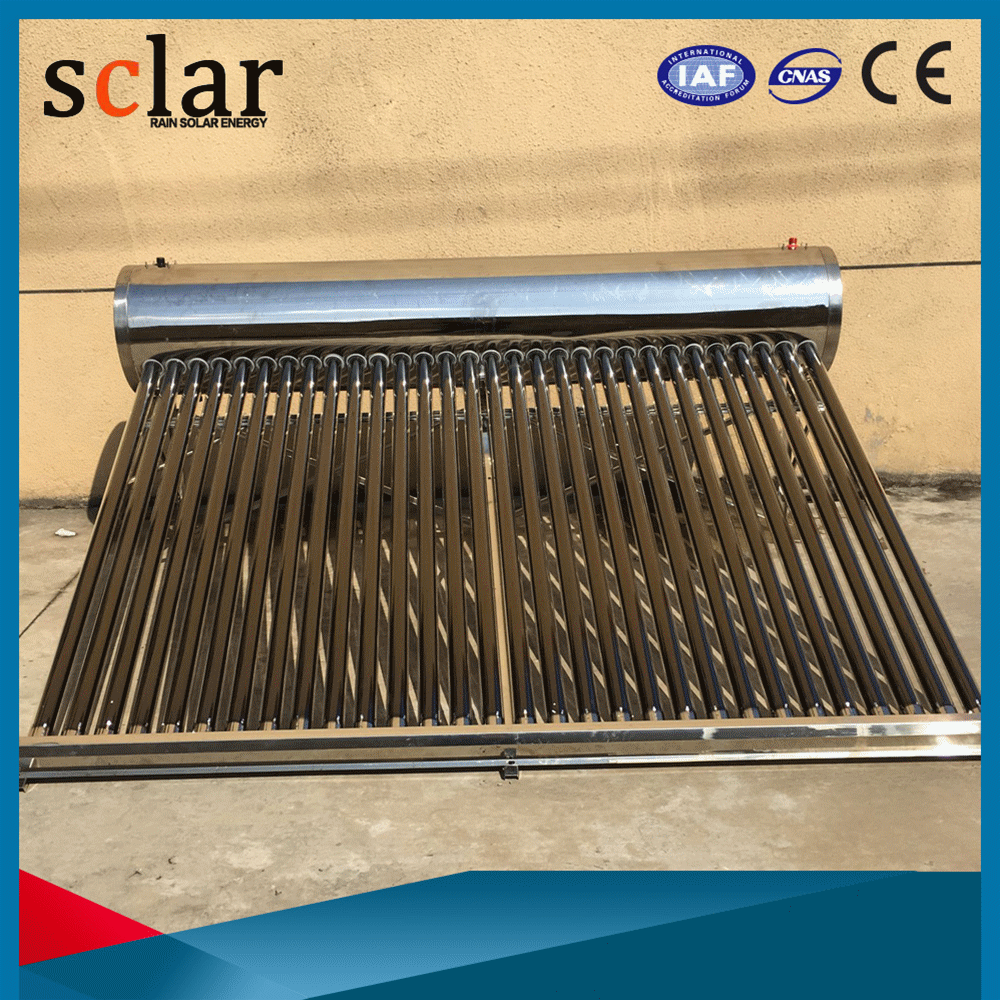

High density heat insulation solar energy water heater hot water tank
Click on the image to view the original image
Product: views:3High density heat insulation solar energy water heater hot water tank
Branch: OEM
Type: Evacuated Tube
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-12-03 17:44
  Negotiated
Product Details
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
ISO9001
Capacity:
200
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
NPSS18
Inner tank:
SUS 304-2B/0.41mm Diameter 360mm
Outer tank:
Stainless steel
Tube:
CU/SS-AL/N heat pipe
Name:
hot water tank
Application:
Washing
Warranty:
5 Years
Vacuum tube:
Three Target Tube 58*1800mm
Frame:
1.2mm 202 Stainless Steel
Item:
water heater solar
Product name:
High density heat insulation solar energy water heater hot water tank
Supply Ability
Supply Ability:
3000 Set/Sets per Month water heater solar
Packaging & Delivery
Packaging Details
1.Standard package for full container solar water heaters
2.Special package for sample order
High density heat insulation solar energy water heater hot water tank
Port
Ningbo/Shanghai
Lead Time:
Shipped in 5 days after payment
SALE

Model

High density heat insulation solar energy water heater hot water tank

Vacuum tubeΦ58*1800/Φ58*2100/Φ70*2000 three-targets vacuum tube
Inner TankSUS-304 Stainless steel (Food grade, 0.41mm)
Outer TankSUS-304 Stainless steel (0.31mm)/ color steel(0.5mm)
Tank diameter460mm
Thermal insulation layerPolyurethane foam
PressureUnpressurized stainless steel solar water heater
Circulation typeDirect/Open loop
Connection typeDirect-Plug
Heating systemThermosyphon(Passive, absorb efficiency over97%)
InstallationFree standing
Volume65L/80L/95L/120L/145L/160L/190L/240L
Vacuum degree10^-4
Idle sunning property parametersY≥210M^2·℃/KW
Working conditionDaily solar energy≥13Mj/m²
Annual solar energy≥4200Mj/m²
Certification and warrantyCE, ISO9001     5 years
