Home > Products > Spilt pressurized Solar Water Heater/100L-300L/Housing using

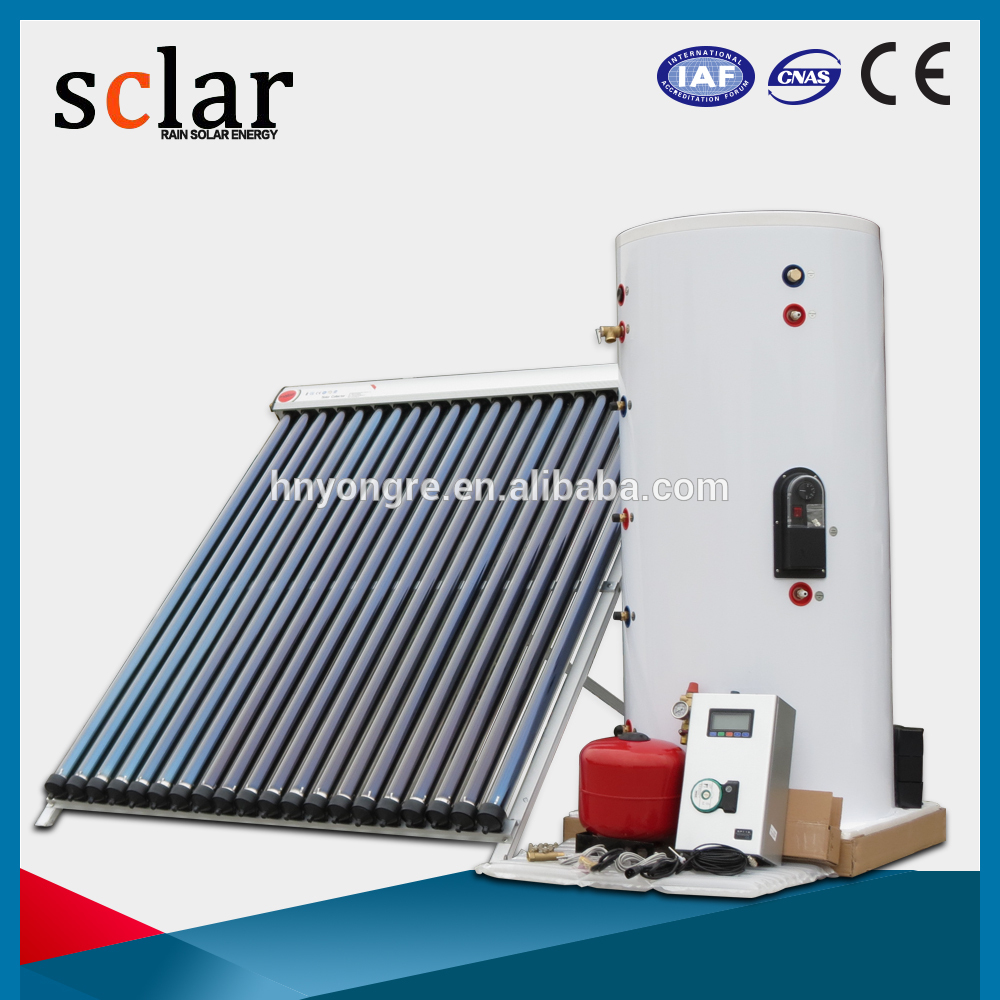

Spilt pressurized Solar Water Heater/100L-300L/Housing using
Click on the image to view the original image
Product： views：3Spilt pressurized Solar Water Heater/100L-300L/Housing using
Branch： Sclar
Type： Evacuated Tube
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:45
  Negotiated
Product Details
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
CE, RoHS, ISO9001
Capacity:
300
Place of Origin:
Zhejiang, China
Brand Name:
Sclar
Model Number:
SP01
Housing material:
color steel
Frame:
Alumimum Alloy
Inner tank:
SUS304-2B Stainless Steel
Outer tank:
Galvanized Steel
Warranty:
5 Years
Accessories:
work station
Solar collector:
Vacuum Tube 58*1800
Supply Ability
Supply Ability:
2000 Set/Sets per Month solar water heater
Packaging & Delivery
Packaging Details
tank500*500*1060mm
frame 1780*100*300mm
tubes 1870*280*250mm 2
Spilt pressurized Solar Water Heater/100L-300L/Housing using
Port
Ningbo/Shanghai
Lead Time:
Shipped in 7 days after payment
TypeSpilt pressurized Solar Water Heater/100L-300L/Housing using
Vacuum tubeΦ58*1800/Φ58*2100/Φ70*2000 three-targets vacuum tube
Inner TankSUS2B-304 Stainless steel (Food grade, 1.5mm)
Outer Tankstainless steel
Thermal insulation layerPolyurethane foam
Circulation typeDirect/Open loop
Connection typeDirect-Plug
Heating systemThermosyphon(Passive, absorb efficiency over97%)
BracketAngle of 30°,40° Galvanized steel
InstallationFree standing
Volume100L/150L/200L/250L/300L
Vacuum degree10^-4
Idle sunning property parametersY≥210M^2·℃/KW
Working conditionDaily solar energy≥13Mj/m²
Annual solar energy≥4200Mj/m²
0Mpa-1.0Mpa
AccessoriesElectric support, work station
Certification and warrantyCE ISO9001  5 years
