Home > Products > Stainless steel solar water heater tank with 200 liter capacity

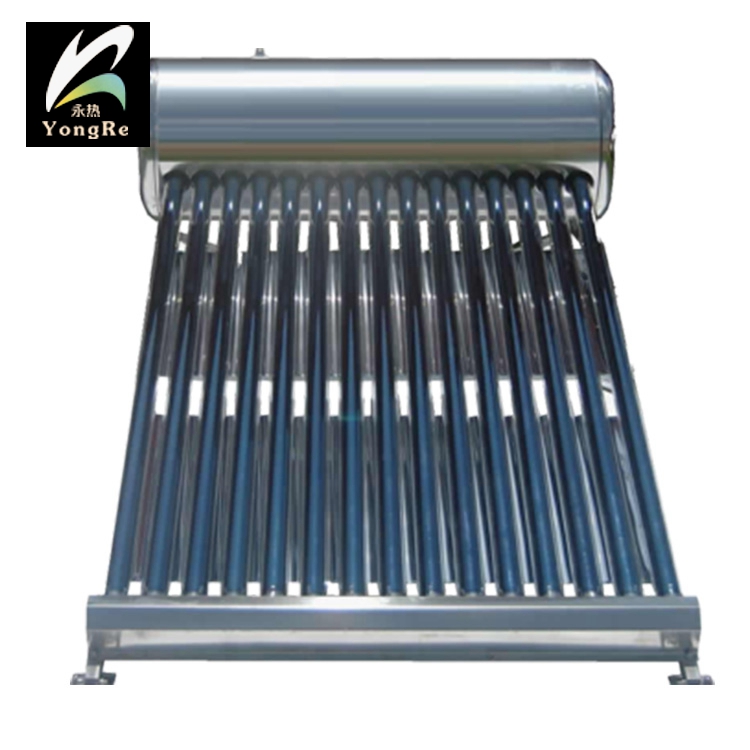

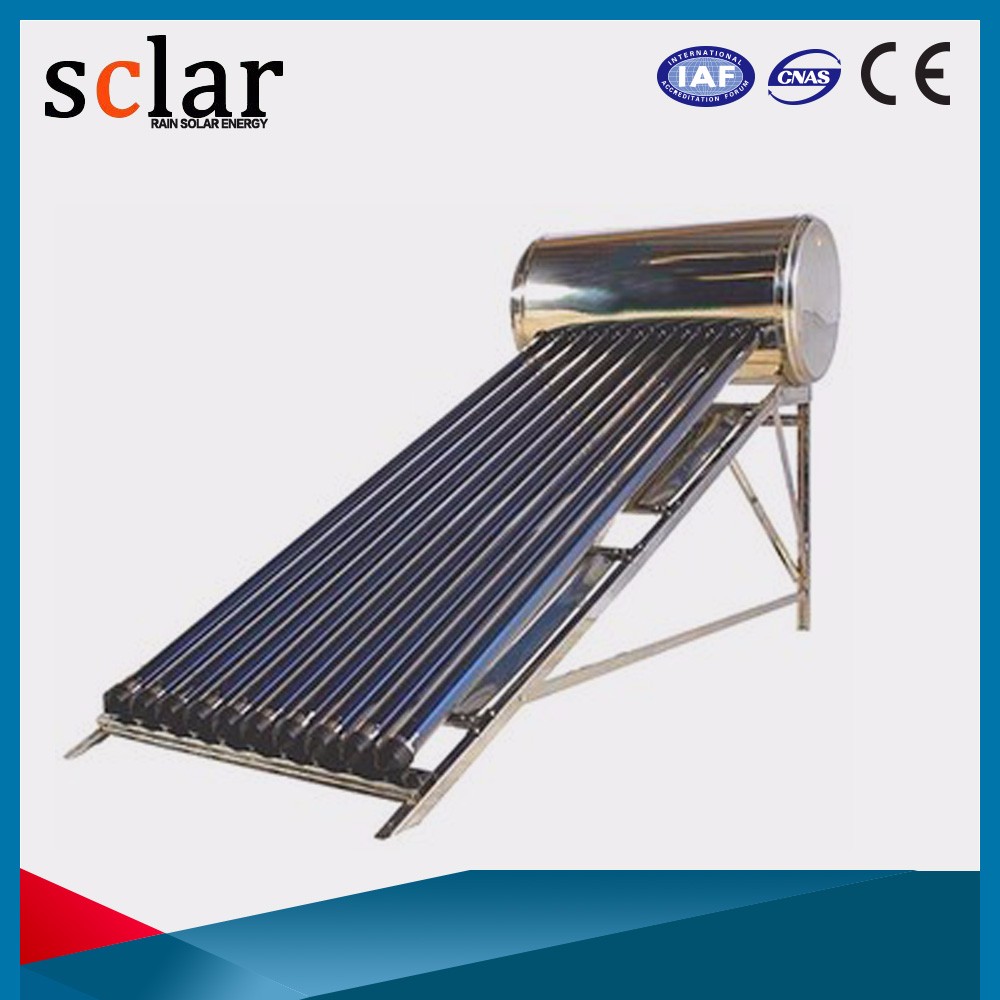

Stainless steel solar water heater tank with 200 liter capacity
Click on the image to view the original image
Product: views:3Stainless steel solar water heater tank with 200 liter capacity
Branch: Sclar
Type: Evacuated Tube, stainless steel water tank
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-12-03 17:45
  Negotiated
Product Details
Overview
Quick Details
Type:
Evacuated Tube, stainless steel water tank
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
CE, CCC, ISO9001
Capacity:
200
Place of Origin:
Zhejiang, China
Brand Name:
Sclar
Model Number:
PSS15
Electrical support:
available
Bracket Angle:
20/38/45/60
Inner tank:
SUS304-2B Stainless Steel
Item:
solar water heater 200 liter
Frame:
1.2MM SUS201 stainless steel
Warranty:
5 Years
Application:
Bath
Use:
Home Applications
Name:
Stainless steel solar water heater tank with 200 liter capacity
Supply Ability
Supply Ability:
3000 Set/Sets per Month stainless steel solar water heater
Packaging & Delivery
Packaging Details
1.Standard package for full container solar water heaters
2.Special package for sample order
Stainless steel solar water heater tank with 200 liter capacity
Port
Ningbo/Shanghai
Lead Time:
Shipped in 7 days after payment

Stainless steel solar water heater tank with 200 liter capacity



SALE
ModelStainless steel solar water heater tank with 200 liter capacity
Vacuum tubeΦ58*1800/Φ58*2100/Φ70*2000 three-targets vacuum tube
Inner TankSUS2B-304 Stainless steel (Food grade, 0.5mm)
Outer TankStainless steel/zinc plate/color steel(0.5mm)
Thermal insulation layerPolyurethane foam(50mm)
Circulation typeDirect/Open loop
Connection typeDirect-Plug
Heating systemThermosyphon(Passive, absorb efficiency over97%)
BracketAngle of 30°,45° stainless steel/color steel
InstallationFree standing
Volume100L/160L/200L/250L/300L
Vacuum degree10^-4
Idle sunning property parametersY≥210M^2·℃/KW
Working conditionDaily solar energy≥13Mj/m²
Annual solar energy≥4200Mj/m²
6Bar
Certification and warrantyCE ISO9001  5 years
