Overview
Quick Details
- Light Source:
- LED
- Input Voltage(V):
- 85-265
- Lamp Luminous Flux(lm):
- 300
- CRI (Ra>):
- 90
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP44
- Certification:
- CE, EMC, LVD, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- Hofoled
- Product name:
- gimbal trim recessed downlight
- Color:
- White+Black
- Power:
- 3W 5W 7W 9W 12W 15W 20W 30W 40W
- Diameter:
- 90mm
- Cutout:
- 75-80mm
- Dimmable:
- 0-10v,triac,dali,2.4G
- Installation:
- Recesssed LED Downlight
- Beam angle:
- 120degree
- PF:
- >0.95
- Application:
- Commercial Lighting,shopping mall
- Item Type:
- Downlights
- Color Temperature(CCT):
- Warm White
- LED Light Source:
- COB
- Warranty(Years):
- 3
- Lamp Luminous Efficiency(lm/w):
- 100
- Working Temperature(℃):
- -30 - 50
Supply Ability
- Supply Ability:
- 50000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 3W gimbal led downlight 50pcs a carton
- Port
- Shenzhen
- Lead Time:
Quantity(Pieces) 1 - 500 >500 Est. Time(days) 7 To be negotiated
3W 5W 7W 9W 12W 15W 20W 30W 40W adjustable gimbal trim recessed downlight

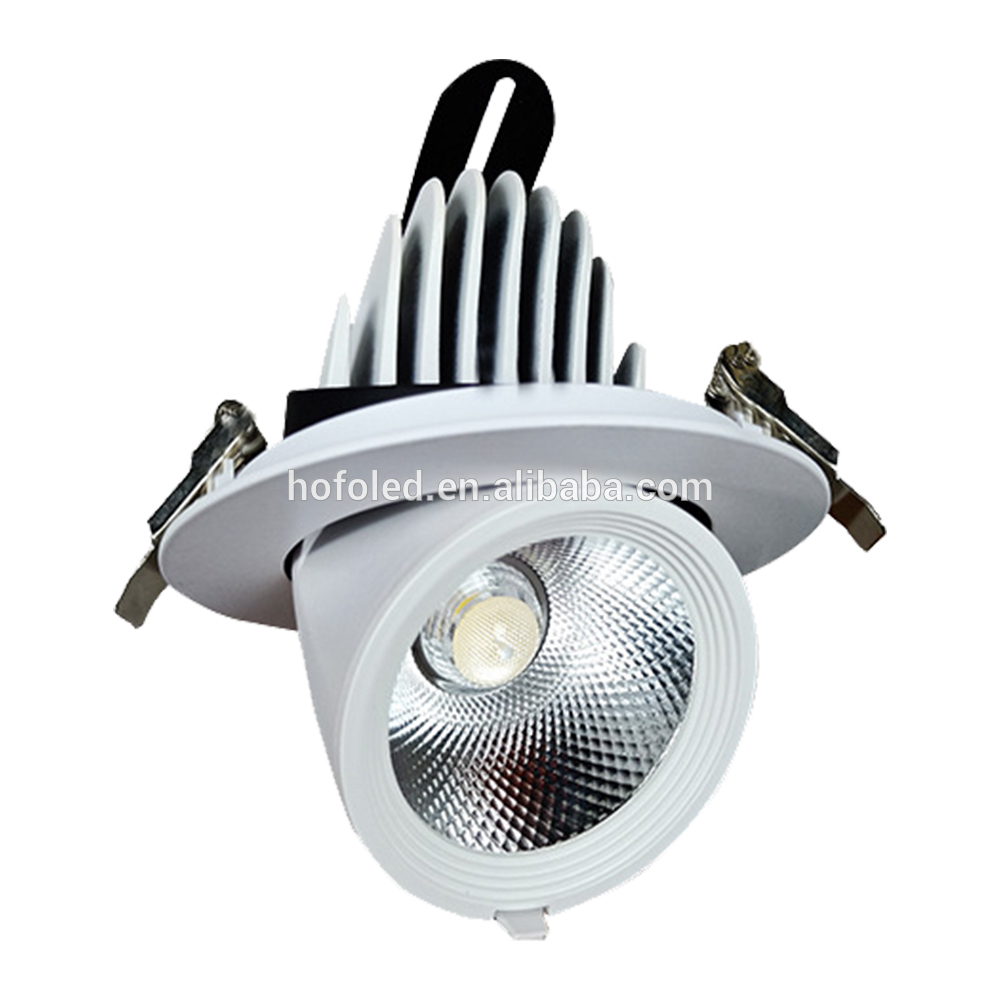

Product Photos
Product details
Model | Diameter MM | Cut Hole MM | Power | Voltage | CCT | PF | CRI | LM/W | LED Chip |
HF-DL3W90 | 90mm | 75-80mm | 3W | 85-265V | 3000K/4000K/6500K | 0.9 | 80 | 100LM/W | Epistar |
HF-DL5W90 | 90mm | 75-80mm | 5W | 85-265V | 3000K/4000K/6500K | 0.9 | 80 | 100LM/W | Epistar |
HF-DL7W90 | 90mm | 75-80mm | 7w | 85-265V | 3000K/4000K/6500K | 0.9 | 80 | 100LM/W | Epistar |
HF-DL12W110 | 110mm | 95-100mm | 12w | 85-265V | 3000K/4000K/6500K | 0.9 | 80 | 100LM/W | Epistar |
HF-DL15W110 | 110mm | 95-100mm | 15w | 85-265V | 3000K/4000K/6500K | 0.9 | 80 | 100LM/W | Epistar |
HF-DL20W130 | 130mm | 115-120mm | 20w | 85-265V | 3000K/4000K/6500K | 0.9 | 80 | 100LM/W | Epistar |
HF-DL30W165 | 165mm | 145-155mm | 30w | 85-265V | 3000K/4000K/6500K | 0.9 | 80 | 100LM/W | Epistar |
HF-DL40W190 | 190mm | 175-180mm | 40w | 85-265V | 3000K/4000K/6500K | 0.9 | 80 | 100LM/W | Epistar |
