 Wall mounted aluminum 20W IP65 led wall lamp

Input voltage: 85-265VAC/50-60Hz
LED resource: SMD2835
Luminous: 1600 Lm
Beam angle: 120 degree
CRI(Ra) > 80, PF>0.90
Color temperature: Warm white:3000K, Nature white:4000K, Cool white:6000K
Environment temperature: -40/+60℃
Dimensions: Ø275 x 85 mm
IP rating: IP65 (waterproof)
IK rating: IK10
Certification: CE RoHS SAA
Install style: Surface mounted ,Wall mounted

Outdoor LED Wall Light Features:

  1.  Die-casting aluminum lamp body, excellent heat dissipation.
  2.  IP65 waterproof, dustproof for indoor and outdoor lighting
  3.  Milky white PC cover, high impact resistance
  4.  304 Stainless steel hexagon socket head cap screws
  5.  Can be installed with a motion sensor
  6.  Black / white / grey  aluminum housing color available
  7.  Glow wire test at 850 ℃ pass NF EN 60695-2-1

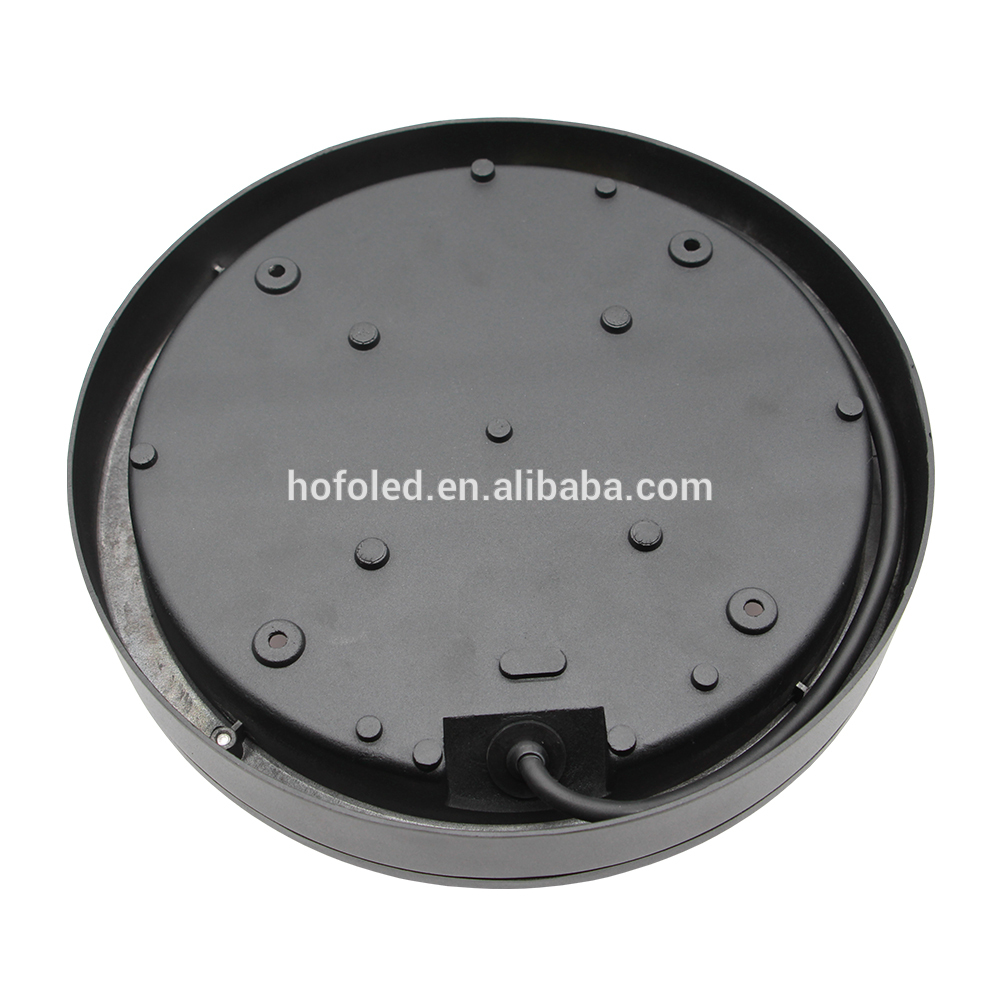

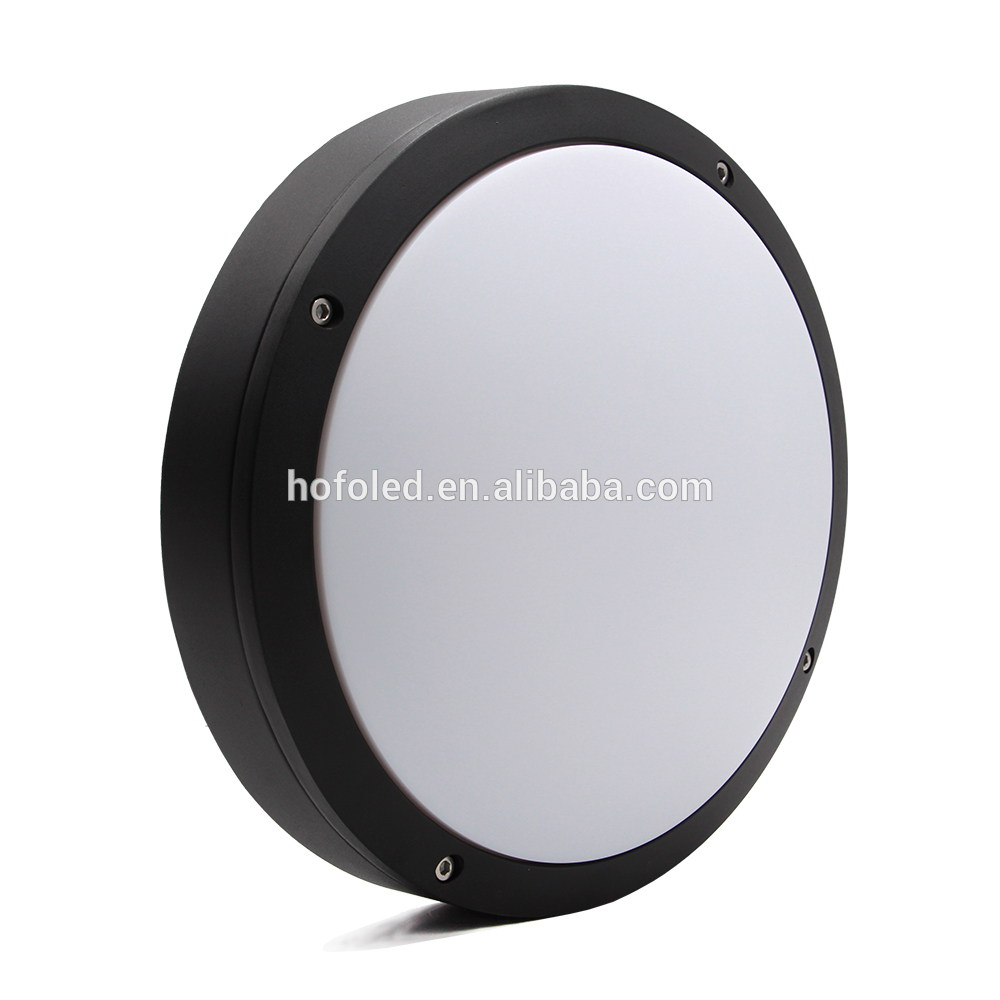

Wall Mounted LED Wall Lihgt Photos:

Model: HF-CL20R275, 20Watt  (Black / White / Gray housing color)

Other Watts 12W 15W 18W 22W available

 Function

1. Can be installed with motion sensor

Microwave Motion Sensor are available to add inside the led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light on detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.

Detection area:  from 2m to 10m

Hold time:  5s, 30s, 90s,  3min, 20min, 30min

Daylight sensor:  2LUX, 10LUX, 25LUX, 50LUX, Disable

Certification: CE ROHS SAA IK10 (we call led ceiling light in the certification)

Factory production flow & Aging area:

Warm white:     2800-3000K

Natural white:  4000-4500K

Cold white:      5500-6500K, other Color temperature is available

Round LED Wall Light Applications:

Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom,Living room,Spa, Hotel

Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
