- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- 85-265VAC
- Lamp Luminous Flux(lm):
- 1800
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- hofoled
- Model Number:
- HF-CL20R300
- Application:
- Garden
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- LED Light Source:
- SMD
- Lamp Luminous Efficiency(lm/w):
- 80
- power:
- 15w 20w 30w 40w available
- Product Size:
- 300*300*85mm
- IK Rating:
- IK10
- Material:
- Die-casting aluminum, milky PC cover
- Function:
- can add motion sensor/Detector/Dimmable
- Style:
- round,square led ceiling light
- Product name:
- led ceiling light, led bulkhead light,led bathroom light
- Warranty:
- 3 years
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- normally inner box, color box is customized by customer
5 pcs/ Carton, 12 KG by dimension, G.W:10KG
- Port
- Shenzhen

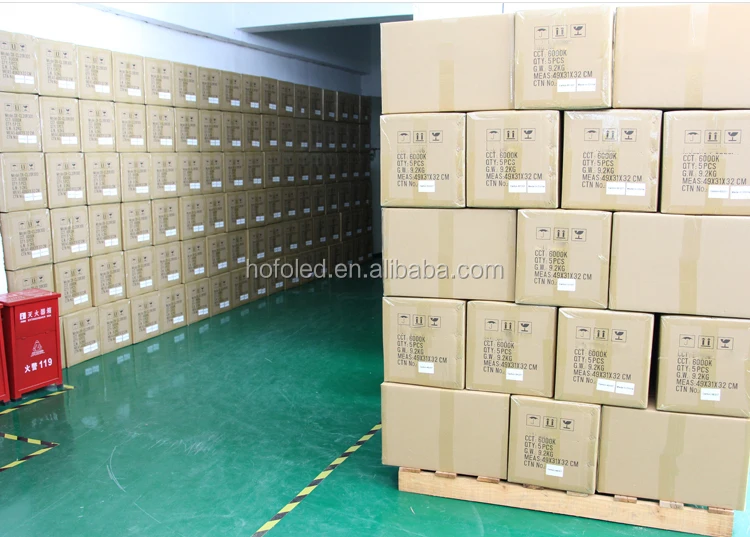

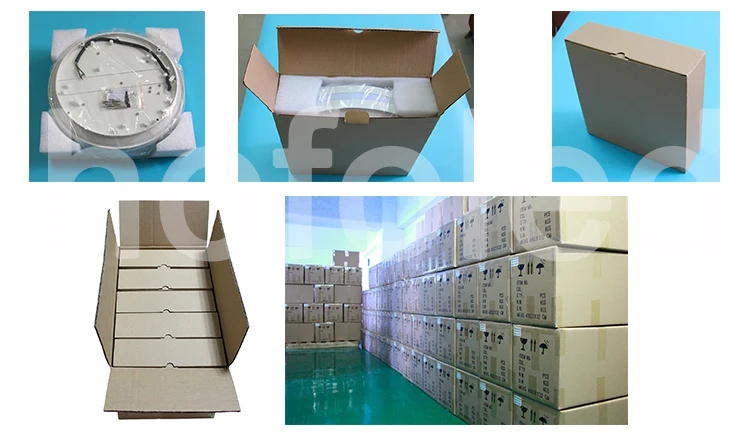

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 300 >300 Est. Time(days) 9 To be negotiated
| Model: | HF-CL20R300 | Luminous flux: | 1800lm |
| Wattage | 20Watt | CRI: | >80 |
| Voltage: | AC100-277V | Light efficiency: | 90 lm/W |
| Line frequency: | 50/60Hz | Finished Color | Black/White |
| Average lifetime: | 50,000 hours | Power Factor | >0.9 |
| Color Temperature: | Diameter | 300mm | |
| Warm white: | 3000K | Height | 80mm |
| Natural white: | 4000K | Motion sensor | Built in sensor 0%-100% |
| Cool white: | 6000K | Warranty: | 3 years |
| Operating Temp: | -10°C to 50°C | Certification: | CE ROHS SAA IK10 IP65 |
| |
| |
Material
Die-casting Aluminum lamp body,excellent heat dissipation
Plastic cover, high impact resistance, IK10 approval
304 Stainless steel hexagon socket head cap screws
IP65, Silicone waterproof gasket to prevent water into the lamp
LED Chip and Driver
We use Taiwan high lumens Epistar Chip, 80LM/W CRI> 83
High quality driver, CE RoHS approval
Power factor> 0.93, no flicker, IP66
Mean-Well or Non-mean well driver is available for customer choose base on order request
UGR , SDCM value,Temperature test
UGR < 19
SDCM value of the led that we use (Mac Adam Ellips - binning) <3 or 5
Temperature test is 47-49 degree
Cable (GLOW WIRE): VDE, IEC approval
With Microwave/Motion sensor 0%-100% ,easy adjustable and install
Microwave Motion Sensor are available to add inside the square led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light when detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.
Detection area: from 2m to 6m
Hold time: 5s, 30s, 90s, 3min, 20min, 30min
Daylight sensor: 2LUX, 10LUX, 25LUX, 50LUX, Disable
Every product aging 24 hours before shipping, IES test, Integral ball test,Anti impact test etc
Widly use in Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa room, Hotel,
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store.
Certifications(CE/ROHS/SAA/IK10/IP65)
Package:
5 pcsa carton, G.W 9.5KG, Dimension:51*33*34cm
Payment Terms:
1. Payment: T/T , 30% deposits before production, 70% balance to be paid before shipment.
2. Small amount by Paypal
3. 3~5 working days for sample,7-15working days for mass production.
4. MOQ: 5 pcs , Discounts are offered based on order quantity.
Shipping:
By express DHL UPS FEDEX TNT EMS etc
By airline
By sea
Q1. Can I get the sample to check quality?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How long can I get the products?
A:Generally speaking, for sample order, it is 3~4 working days.
For mass production, it is about 5~15 working days.
And it is depended on customer"s quantity
Q3. Is surface mounted led ceiling light have round and square option?
A: Yes, we have round and square LED ceiling light for customer"s choose.
Q4. Do you have other similar led ceiling light for me to choose?
A: Yes, contact us, we will send more information.
Q5. How do you ship the goods and how long does it take to arrive?
A: Usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: Do you accept Paypal?
A: Yes, we accept it!
