- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- AC85-265V
- Lamp Luminous Flux(lm):
- 2400
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- hofoled
- Model Number:
- HF-CL20S300
- Application:
- office
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- LED Light Source:
- SMD2835
- Warranty:
- 3 years
- housing color:
- black,white color
- power:
- 20w 30w 40w available
- Product Size:
- 300*300*90mm
- IK Rating:
- IK10
- Material:
- Die-casting aluminum, milky PC cover
- Function:
- can add motion sensor/Detector/Dimmable
- Package:
- 5 pcs/carton
- Product name:
- led bulkhead light,surface mounted led sensor light
- Supply Ability:
- 100000 Piece/Pieces per Month
- Packaging Details
- normally inner white box, color box is customized by customer
5 pcs/ Carton, 12 KG by dimension, G.W:11 KG
- Port
- Shenzhen(Yantian port)

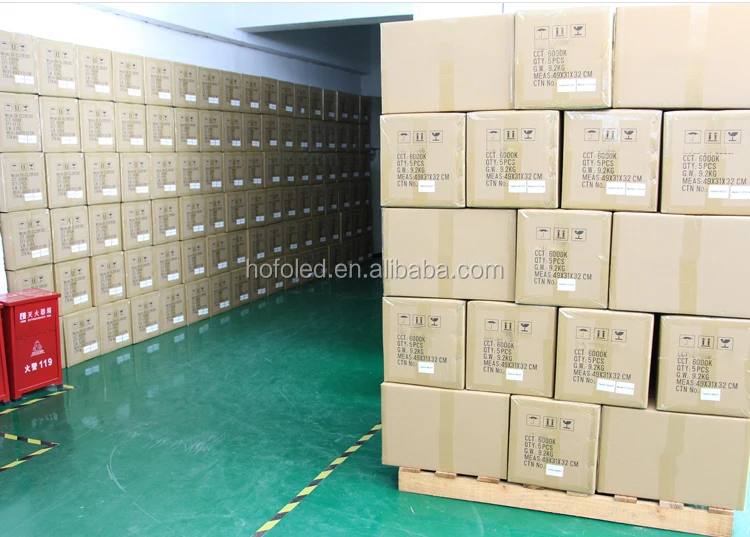

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 200 >200 Est. Time(days) 7 To be negotiated
High quality sensor led residential lighting
Same diameter 300mm for 20W 30W 40W, Black,White, Grey colors for choose
| Power Consumption | 20W | 30W | 40W |
| Luminous Flux | 1600Lm | 2400Lm | 3200Lm |
| Light Source | High Power SMD LED | ||
| CRI | 85 | ||
| Chip Type | SMD2835 | ||
| Driver Input Voltage | 85~265v AC 50 / 60Hz | ||
| Colour Temperature (CCT) | 2800K~3100K | 3800K~4250K | 6000K~6500K |
| Power Factor | 0.95 | ||
| Rated Life (L70) | 50,000Hrs | ||
| Working Temperature | -10C ~ 40C | ||
| Storage Temperature | -20C ~ 80C | ||
| Working Humidity | 5% ~ 95%RH | ||
| Lamp Housing | Aluminium Alloy | ||
| Lens | Poly Carbonate (PC) | ||
| Finish | Powder Coat Black | ||
| Dimensions | 300*300*90mm | ||
| Installation | Wall Mounted, Surface mounted | ||
| Installation | IP65 Waterproof | ||
| Additional | CE ROHS SAA IK10 Approved | ||
Square LED Ceiling Light Features:
1. Die-casting aluminum lamp body, excellent heat dissipation.
3. IP65 waterproof, dustproof for indoor and outdoor lighting
4. 304 Stainless steel hexagon socket head cap screws
5. Can be installed with a microwave motion sensor, dimming sensor
6. Available for emergency function, 1-3 hours
7. Black / white / grey aluminum housing color available
8. Glow wire test at 850 ℃ pass NF EN 60695-2-1,VDE approval.
Aluminum Ceiling LED Light plastic ip65 Photos:
Model: HF-CL30S300 (30W,300mm diameter), HF-CL20S300(20W)
With Microwave/Motion sensor 0%-100% ,easy adjustable and install
Microwave Motion Sensor are available to add inside the square led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light when detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.
Detection area: from 2m to 6m
Hold time: 5s, 30s, 90s, 3min, 20min, 30min
Daylight sensor: 2LUX, 10LUX, 25LUX, 50LUX, Disable
;
certification and Factory production flow:
Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa room, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
1. payment T/T , L/C , Paypal , Western Union small order is 100%, for large amount,30% down payment, 70% balance before shipping
2. MOQ: 5 pcs , Discounts are offered based on order quantity.
3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days
4. Supply Ability: 10,000 Piece/Pieces per Month
5. Any inquire about our product will be reply in 8 hours
