Click on the image to view the original image
- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- 100-277VAC
- Lamp Luminous Flux(lm):
- 1800
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- hofoled
- Model Number:
- HF-CL20R300
- Application:
- WAREHOUSE
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- LED Light Source:
- SMD2835
- Warranty:
- 3 years
- Aluminum housing color:
- black,white,grey color
- power:
- 15w 20w 30w 40w available
- Product Size:
- 300*300*85mm
- IK Rating:
- IK10
- Material:
- Die-casting aluminum, milky PC cover
- Function:
- can add motion sensor/Detector/Dimmable
- Style:
- round,square led ceiling light
- Product name:
- led ceiling light, led bulkhead light,led bathroom light
- Supply Ability:
- 100000 Piece/Pieces per Month
- Packaging Details
- normally inner white box, color box is customized by customer
5 pcs/ Carton, 12 KG by dimension, G.W:10KG
- Port
- Shenzhen

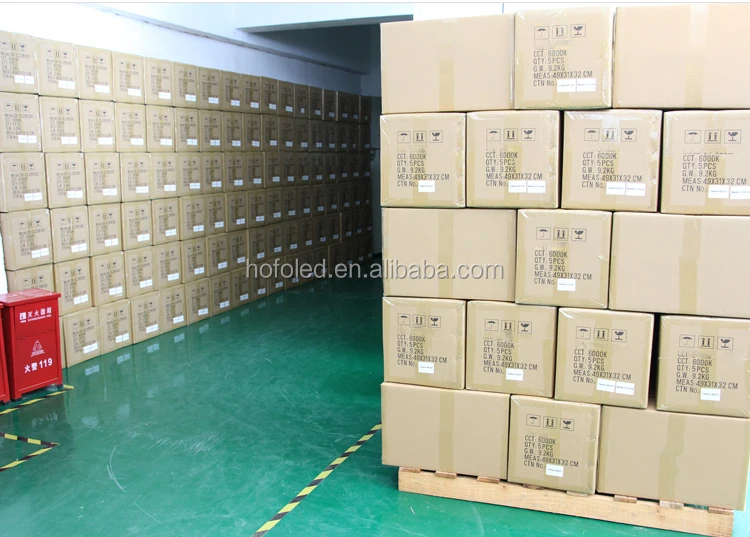

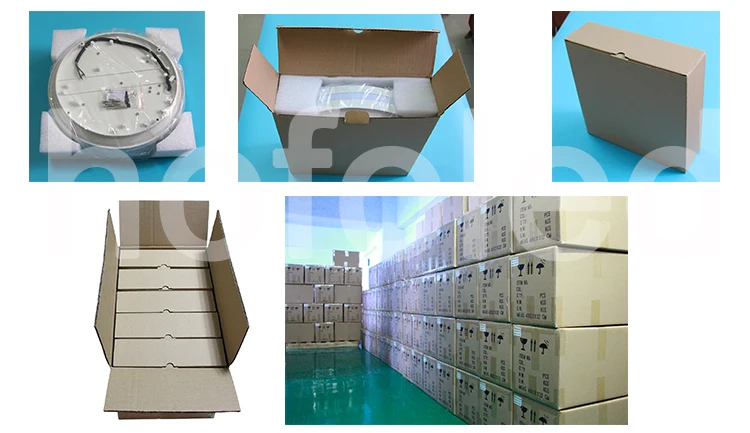

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 200 >200 Est. Time(days) 7 To be negotiated
surface mounted led ceiling panel light 12w warm white
Same diameter 300mm for 20W 30W 40W, Black,White, Grey colors for choose
| Power Consumption | 20W | 30W | 40W |
| Luminous Flux | 1800Lm | 2700Lm | 3600Lm |
| Light Source | High Power SMD LED | ||
| CRI | 85 | ||
| Chip Type | SMD2835 | ||
| Driver Input Voltage | 85~265v AC 50 / 60Hz | ||
| Colour Temperature (CCT) | 2800K~3100K | 3800K~4250K | 6000K~6500K |
| Power Factor | 0.95 | ||
| Rated Life (L70) | 50,000Hrs | ||
| Working Temperature | -10C ~ 40C | ||
| Storage Temperature | -20C ~ 80C | ||
| Working Humidity | 5% ~ 95%RH | ||
| Lamp Housing | Aluminium Alloy | ||
| Lens | Poly Carbonate (PC) | ||
| Finish | Powder Coat Black | ||
| Dimensions | 300*300*85mm | ||
| Installation | Wall Mounted, Surface mounted | ||
| Installation | IP65 Waterproof | ||
| Additional | CE ROHS SAA IK10 Approved | ||
LED Ceiling Light Features:
1. Die-casting aluminum lamp body, excellent heat dissipation.
2. IP65 waterproof, dustproof for indoor and outdoor lighting
3. Milky white PC cover, high impact resistance
4. Stainless steel hexagon socket head cap screws
5. Can be installed with a motion sensor, PIR sensor
6. Available for emergency function
7. Black / white / grey aluminum housing color available
8. Energy saving, not emitting UV and IR, no RF interference
LED Ceiling Lihgt Photos:
Model:HF-CL20R300, HF-CL30R300,HF-CL40R300
20W, 30W, 40W (BLACK/WHITE/GREY)
Motion sensor / microwave sensor / Detector are available to add inside the led ceiling light:
1. Emergency Power: 8~10W
2. Emergency response time:1~4 hours
HOFOLED led ceiling light CE ROHS SAA IK10 IP65 certification and Factory production flow & Aging area:
Hofoled Surface mounted led ceiling light Advantages:
60-70% energysaving, longer lifetime up to 50 000 hours than incandescent and fluorescent, instant
start: starts right away no matter the temperature or conditions, visual attractive with quality appearance,
material: Aluminum, no mercury contained, reduce carbon emissions, UV and IR free, producing minimum
heat,no additional fixtures needed, CE/RoHS approval
Ceiling LED Light Applications:
Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa room, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
Payment Terms:
1. payment T/T , L/C , Paypal , Western Union small order is 100%, for large amount,30% down payment, 70% balance before shipping
2. MOQ: 5 pcs , Discounts are offered based on order quantity.
3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days
4. Supply Ability: 10,000 Piece/Pieces per Month
5. Any inquire about our product will be reply in 8 hours
Company Information:
Shenzhen Hofo Technology Co.,Limited is a leader and one of the professional manufacturers which specializes in the development, production and marketing of various kinds of LED lighting. With our semiconductor lighting technology, we aim to provide our customers with high efficiency, energy-saving and stable encapsulated LED lights. Hofo various products range fromled high bay lights, led street lights,led flood lights, led tunnel lights, led panel light, as well as led ceiling lights, led tube, led strip etc.
Our excellent sales and after-sales team are always at your service and will take good care of you, our valued customer.
