- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- 85-265VAC
- Lamp Luminous Flux(lm):
- 1600
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- hofoled
- Model Number:
- HF-CL20R300
- Application:
- HOTEL
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- LED Light Source:
- Epistar
- Warranty:
- 3 years
- Aluminum housing color:
- black,white,grey color
- power:
- 15w 20w 30w 40w available
- Product Size:
- 300*300*85mm
- IK Rating:
- IK10
- Material:
- Die-casting aluminum, milky PC cover
- Function:
- can add motion sensor/Detector/Dimmable
- Style:
- round,square led ceiling light
- Product name:
- led ceiling light, led bulkhead light,led bathroom light
- Supply Ability:
- 100000 Piece/Pieces per Month

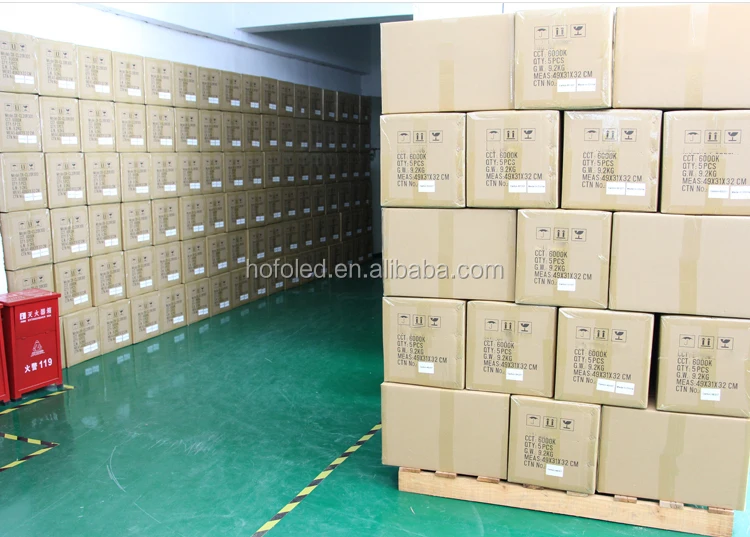

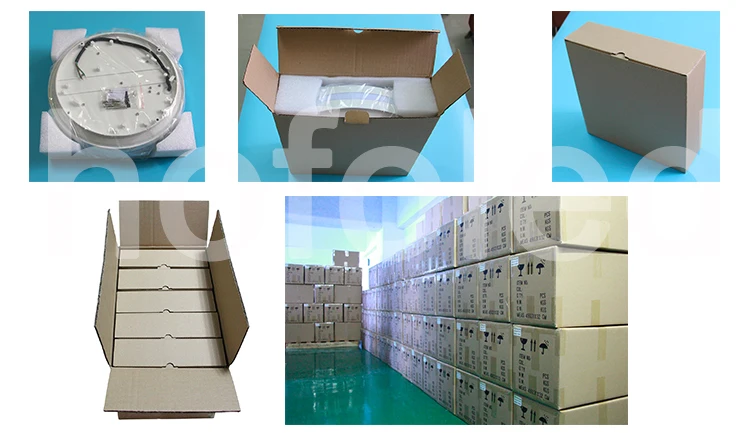

- Packaging Details
- normally inner white box, color box is customized by customer
5 pcs/ Carton, 12 KG by dimension, G.W:10KG
- Port
- Shenzhen
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 300 >300 Est. Time(days) 7 To be negotiated
Waterproof IP65 20W 30W surface mounted circular led light
Same diameter 300mm for 20W 30W 40W, Black,White, Grey colors for choose
| Power Consumption | 20W | 30W | 40W |
| Luminous Flux | 1600Lm | 2400Lm | 3200Lm |
| Light Source | High Power SMD LED | ||
| CRI | 85 | ||
| Chip Type | SMD2835 | ||
| Driver Input Voltage | 85~265v AC 50 / 60Hz | ||
| Colour Temperature (CCT) | 2800K~3100K | 3800K~4250K | 6000K~6500K |
| Power Factor | 0.95 | ||
| Rated Life (L70) | 50,000Hrs | ||
| Working Temperature | -10C ~ 40C | ||
| Storage Temperature | -20C ~ 80C | ||
| Working Humidity | 5% ~ 95%RH | ||
| Lamp Housing | Aluminium Alloy | ||
| Lens | Poly Carbonate (PC) | ||
| Finish | Powder Coat Black | ||
| Dimensions | 300*300*85mm | ||
| Installation | Wall Mounted, Surface mounted | ||
| Installation | IP65 Waterproof | ||
| Additional | CE ROHS SAA IK10 Approved | ||
LED Ceiling Light Features:
1. Die-casting aluminum lamp body, excellent heat dissipation.
2. IP65 waterproof, dustproof for indoor and outdoor lighting
3. Milky white PC cover, high impact resistance
4. Stainless steel hexagon socket head cap screws
5. Can be installed with a motion sensor, PIR sensor
6. Available for emergency function
7. Black / white / grey aluminum housing color available
8. Energy saving, not emitting UV and IR, no RF interference
LED Ceiling Lihgt Photos:
Model:HF-CL20R300
Motion sensor / microwave sensor / Detector are available to add inside the led ceiling light:
HOFOLED Factory production flow & Aging area:
Hofoled Surface mounted led ceiling light Advantages:
60-70% energysaving, longer lifetime up to 50 000 hours than incandescent and fluorescent, instant
start: starts right away no matter the temperature or conditions, visual attractive with quality appearance,
material: Aluminum, no mercury contained, reduce carbon emissions, UV and IR free, producing minimum
heat,no additional fixtures needed, CE/RoHS approval
Ceiling LED Light Applications:
Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa room, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
