Click on the image to view the original image
- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- 85-265VAC
- Lamp Luminous Flux(lm):
- 2400
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- hofoled
- Model Number:
- HF-CL30S300
- Application:
- Theme Park
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- LED Light Source:
- Epistar
- Lamp Luminous Efficiency(lm/w):
- 80
- Sensor adjustable:
- yes,0%-50% brightness
- power:
- 15w 20w 30w 40w available
- Product Size:
- 300*300*90mm
- IK Rating:
- IK10
- Function:
- can add motion sensor/Detector/Dimmable
- Package:
- 5 pcs/carton
- Style:
- Square,round,circular shape
- Product name:
- ceiling led light,led wall lamp,led bulkhead light,led sensor light
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- normally inner box, color box is customized by customer
5 pcs/ Carton, 12 KG by dimension, G.W:11 KG
- Port
- Shenzhen(Yantian port)

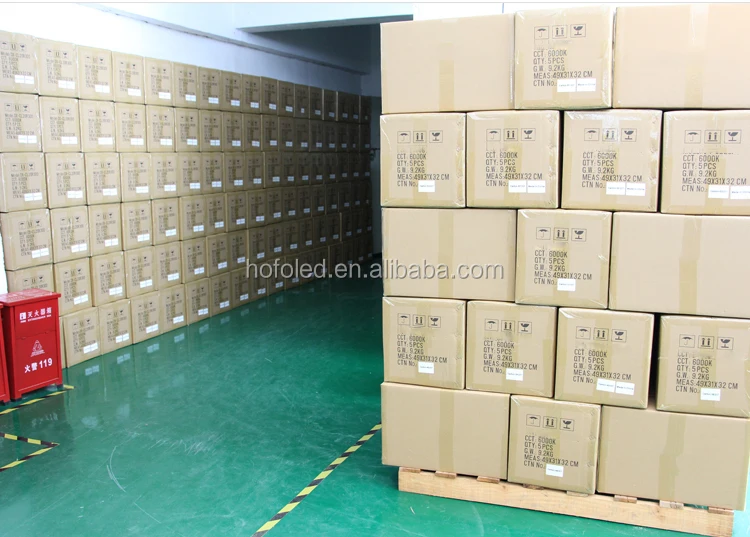

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 300 >300 Est. Time(days) 7 To be negotiated
wall mounted surface mounted square 30w led ceiling light
Model: HF-CL30S300
Input voltage: 85-265VAC/50-60Hz
LED resource: Epistar
Luminous: 2400 Lm
Beam angle: 120 degree
Color rendering index: Ra > 80
Power factor>0.90
Color temperature: Warm white:3000K, Nature white:4000K, Cool white:6000K
Environment temperature: -40/+60℃
Dimensions: Ø300 x 90 mm (square)
Packing: 5pcs/ Carton,10.5 KG
IP code: IP65 Waterproof
IK Code: IK10
Certification: CE RoHS SAA IK10
Install style: Surface mounted,Wall mounted,Ceiling Mounted
LED Ceiling Light Features:
1. Die-casting aluminum lamp body, excellent heat dissipation
2. IP65 waterproof, dustproof for indoor and outdoor lighting
3. Milky white PC cover, high impact resistance IK10 approval
4. 304 Stainless steel hexagon socket head cap screws
5. Can built-in motion sensor, Emergency time 1-3 hours
6. Black / white / grey aluminum housing color available
7. Glow wire test at 850 ℃ pass NF EN 60695-2-1, VDE approval.
Square LED Ceiling Light Photos:
Model:HF-CL20S300(20W), HF-CL30S300(30W), HF-CL40S300(40W)
(Housing color:BLACK/WHITE/GREY)
Microwave Motion Sensor are available to add inside the led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light on detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.
Detection area: from 2m to 10m
Hold time: 5s, 30s, 90s, 3min, 20min, 30min
Daylight sensor: 2LUX, 10LUX, 25LUX, 50LUX, Disable
2. Emergency function: (Emergency only or Emergency+Sensor)
Emergency power: 8 W
Emergency Time: 1Hour - 3 Hours
Lithium Battery Capacity
With main power AC85-265V, we offer 15W and 20W.
When power cut off, with emergency power 8W , running time: 1hours to 3 hours
Charge time: 10-16 Hours, when indicator of charger on red is charging,off means full charged.
Certification and Factory QC Process:
Ceiling LED Light Applications:
Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa room, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
1.Payment T/T , L/C , Paypal , Western Union. small order is 100%, for large amount,30% down payment, 70% balance before shipping
2. MOQ: 5 pcs/carton(item) , Discounts are offered based on order quantity.
3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days
4. Supply Ability: 100,000 Piece/Pieces per Month
5. Any inquire about our product will be reply in 8 hours
Shenzhen Hofo Technology Co.,Limited various products range from led ceiling light, led wall light, led high bay lights, led street lights,led flood lights, led tunnel lights, led panel light, as well as led tube, led strip etc. Having high skills of R&D team, We got the license of ISO9001:2008, all products has pass CE, RoHS SAA IK10 approval etc.
If interested in our products, please do not hesitate to send us inquire mail.
