Click on the image to view the original image
- Light Source:
- LED
- Item Type:
- Outdoor Wall Lights
- LED Light Source:
- Epistar
- Input Voltage(V):
- 85-265Vac
- Lamp Luminous Flux(lm):
- 1600
- CRI (Ra>):
- 80
- Beam Angle(°):
- 120
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- Hofoled
- Model Number:
- HF-CL20R275
- Application:
- Garden, Villas,building, hotel, corridor, garden
- Lamp Luminous Efficiency(lm/w):
- 80
- Product name:
- modern wall led light
- Product Size:
- 275*275*85mm
- warranty:
- 3 years
- Function:
- can add motion sensor/Detector/Dimmable
- material:
- Die-casting aluminum, milky PC cover
- IK rating:
- IK10
- Installed style:
- Wall mounted,surface mounted
- Power:
- 15-20W
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- 5 pcs/ Carton, 10 KG by dimension, G.W: 8.5 KG
- Port
- Shenzhen

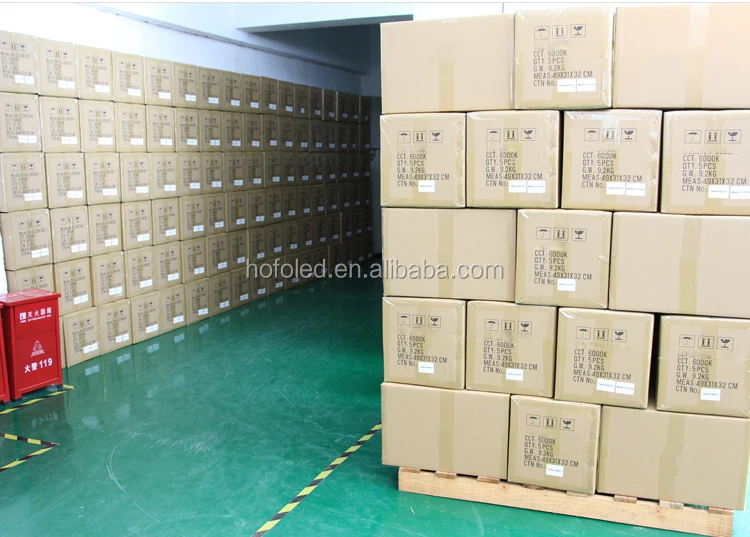

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 300 >300 Est. Time(days) 7 To be negotiated
Waterproof Modern design outdoor modern wall led light
Input voltage: 85-265VAC/50-60Hz
LED resource: SMD2835
Luminous: 1600 Lm
Beam angle: 120 degree
CRI(Ra) > 80, PF>0.90
Color temperature: Warm white:3000K, Nature white:4000K, Cool white:6000K
Environment temperature: -40/+60℃
Dimensions: Ø275 x 85 mm
IP rating: IP65 (waterproof)
IK rating: IK10
Certification: CE RoHS SAA
Install style: Surface mounted ,Wall mounted
Outdoor LED Wall Light Features:
1. Die-casting aluminum lamp body, excellent heat dissipation.
2. IP65 waterproof, dustproof for indoor and outdoor lighting
3. Milky white PC cover, high impact resistance
4. 304 Stainless steel hexagon socket head cap screws
5. Can be installed with a motion sensor
6. Black / white / grey aluminum housing color available
7. Glow wire test at 850 ℃ pass NF EN 60695-2-1
Wall Mounted LED Wall Lihgt Photos:
Model: HF-CL20R275, 20Watt (Black / White / Gray housing color)
Other Watts 12W 15W 18W 22W available
Other LED Wall Lights from our factory
Round in size:300*300*85mm, Model: HF-CL20R300 (20W), HF-CL30R300(30W),HF-CL40R300(40W)
Square in size:300*300*90mm, Model: HF-CL20S300 (20W), HF-CL30S300(30W),HF-CL40S300(40W)
Function
1. Can be installed with motion sensor
Microwave Motion Sensor are available to add inside the led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light on detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.
Detection area: from 2m to 10m
Hold time: 5s, 30s, 90s, 3min, 20min, 30min
Daylight sensor: 2LUX, 10LUX, 25LUX, 50LUX, Disable
Certification: CE ROHS SAA IK10 (we call led ceiling light in the certification)
Factory production flow & Aging area:
Warm white: 2800-3000K
Natural white: 4000-4500K
Cold white: 5500-6500K, other Color temperature is available
Round LED Wall Light Applications:
Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom,Living room,Spa, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
2. MOQ: 10 pcs , Discounts are offered based on order quantity.
3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days
4. Supply Ability: 10,000 Piece/Pieces per Month
5. Any inquire about our product will be reply in 8 hours
Our excellent sales and after-sales team are always at your service.Please do not hesitate to send us inquire to get the latest price.
