Click on the image to view the original image
- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- AC85-265V
- Lamp Luminous Flux(lm):
- 1600
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- hofoled
- Model Number:
- HF-CL20R300
- Application:
- Theme Park
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- LED Light Source:
- Epistar
- Lamp Luminous Efficiency(lm/w):
- 80
- Warranty:
- 3 years
- power:
- 15w 20w 30w 40w available
- Product Size:
- 300*300*85mm
- IK Rating:
- IK10
- Function:
- can add motion sensor/Detector/Dimmable
- Style:
- round,square led ceiling light
- Product name:
- led ceiling light, led bulkhead light,led bathroom light
- pf:
- >0.9
- Supply Ability:
- 10000 Piece/Pieces per Month

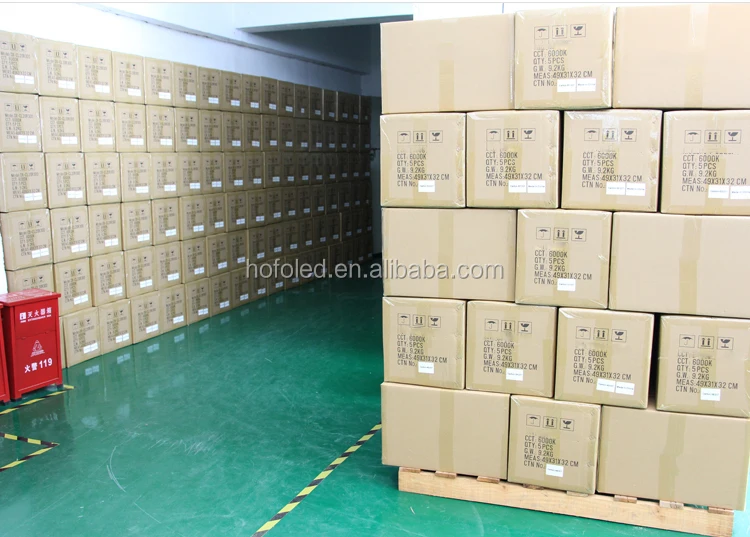

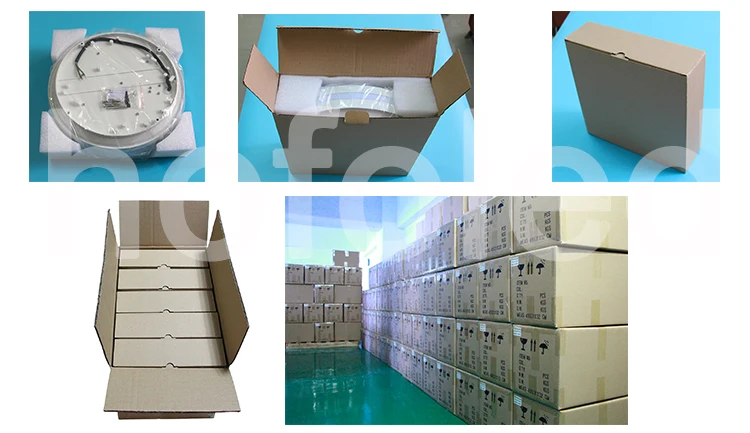

- Packaging Details
- 5 pcs/ Carton, 12 KG by dimension, G.W:10KG
- Port
- Shenzhen
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 300 >300 Est. Time(days) 7 To be negotiated
surface mounted ip65 waterproof shower light fixture
Same diameter 300mm for 20W 30W 40W, Black,White, Grey colors for choose
| Model | Dimension | CRI | PF | N.G(KG) |
| HF-CL20R300 20W | 300*300*85mm | >80 | >0.9 | 1.5 |
| HF-CL30R300 30W | 300*300*85mm | >80 | >0.9 | 1.6 |
| HF-CL40R300 40W | 300*300*85mm | >80 | >0.9 | 1.8 |
| |
Technical Specification
Voltage:AC100-277V Lifespan:50000hours
Power 15W 20W 24W 30W 40W Lumens efficiency>85
Power Factor:>0.9 Function:available with sensor, emergency
Bean Angle:120degree IP Rate:IP65
CCT:3000K 4000K 6500K Surface Color:White,Black,Gray
3. IP65 waterproof, dustproof for indoor and outdoor lighting
4. 304 Stainless steel hexagon socket head cap screws
5. Can be installed with a on-off microwave motion sensor, dimming sensor
6. Available for emergency function, 3 hours
7. Black / white / grey aluminum housing color available
8. Glow wire test at 850 ℃ pass NF EN 60695-2-1,VDE approval.
1. Can add Microwave Motion Sensor Function
Microwave Motion Sensor are available to add inside the led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light on detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.
Detection area: from 2m to 10m
Hold time: 5s, 30s, 90s, 3min, 20min, 30min
Daylight sensor: 2LUX, 10LUX, 25LUX, 50LUX, Disable
2. Can add emergency function:
Input Voltage: AC 100-277V 50/60Hz Standard Power: 20W
Emergency Power: 8W(SMD 2835) Continuous Illumination: 180 minutes
Battery: LIR 7.4V 4400MAH Recharging time >24 hours
Over-discharge protection: Yes Battery warranty: 2 years
3. Motion Sensor + Emergency function for complete use
Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa room, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
1.Payment T/T , L/C , Paypal , Western Union. small order is 100%, for large amount,30% down payment, 70% balance before shipping
2. MOQ: 10 pcs, Discounts are offered based on order quantity.
3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days
4. Shipping: can by express DHL,FEDEX,UPS, TNT etc, By air flight, By sea
Our excellent sales and after-sales team are always at your service and will take good care of you, for more detail please send us inquire.
Square led ceiling light, size 300*300*90mm
hofoled Model: HF-CL20S300 (20W), HF-CL30S300(30W),HF-CL40S300(40W)
hofoled Model:HF-CL20R275,20W &15W , size 275*275*80mm
