Overview
Quick Details
- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- AC85-265V
- Lamp Luminous Flux(lm):
- 1600
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- hofoled
- Model Number:
- HF-CL20R300
- Application:
- WAREHOUSE, Hotel,bathrom,corridor,bacony,stairs,spa,toilet
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- LED Light Source:
- Epistar
- Lamp Luminous Efficiency(lm/w):
- 80
- Product name:
- bulkhead ip65 led lamp
- Warranty:
- 3 years
- Product Size:
- 300*300*85mm
- Install type:
- wall mounted,ceiling mounted,surface mounted
- Material:
- Die-casting aluminum, milky PC cover
- Power factor:
- 0.90
- UGR:
- <19
Supply Ability
- Supply Ability:
- 50000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- normally innerbox then carton box,
If request color box is customized by customer
5 pcs/ Carton, 12 KG by dimension, G.W:10KG
- Port
- Shenzhen

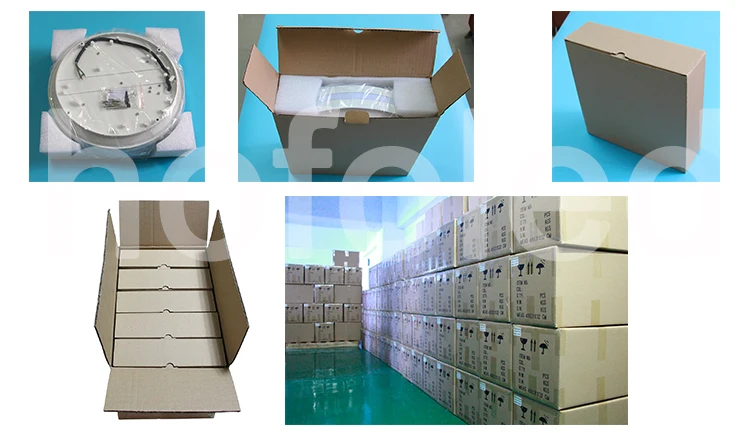

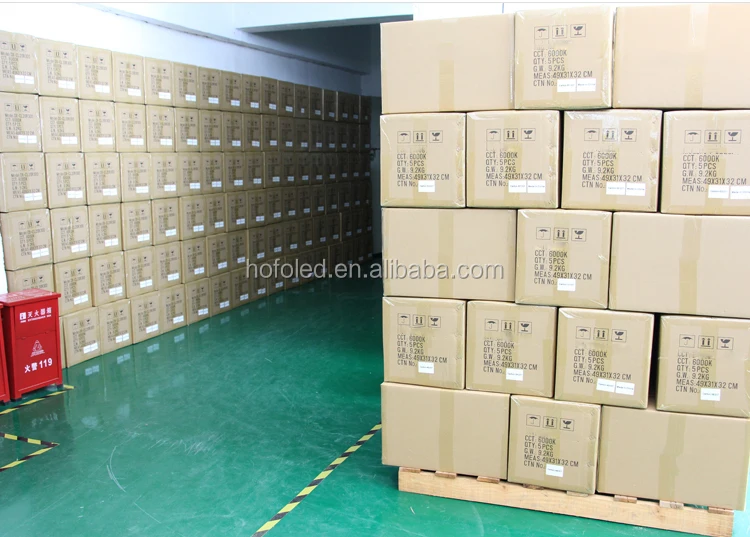

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 300 >300 Est. Time(days) 7 To be negotiated
die cast aluminium bulkhead ip65 led lamp
Product Description
Power: 20 WattModel: HF-CL20R300
Input voltage: 85-265VAC/50-60Hz
LED Resource: Epistar
Luminous: 1600 Lm
IP Rating: IP65 waterproof
IK Code: IK10
Beam angle: 120 degree
Color rendering index: Ra > 80
Power Factor > 0.90
Color temperature: Warm white:3000K, Nature white:4000K, Cool white:6000K
Environment temperature: -40/+60℃
Dimensions: 300 x 300 x 85 mm
Install type:Surface mounted,wall mounted
Certification:CE RoHS SAA
LED Ceiling Light IP65 Features:
1. Die-casting aluminum lamp body, excellent heat dissipation
2. IP65 waterproof, dustproof for indoor and outdoor lighting
3. Milky white PC cover, high impact resistance, IK10 approval
4. Stainless steel hexagon socket head cap screws
5. Can be installed with a motion sensor, RF,PIR sensor
6. Available for emergency function, from 1 to 4 hours
7. Black / white / grey aluminum housing color available
8. Energy saving, not emitting UV and IR, no RF interference
Product Photos
Model:HF-CL20R300(20W), HF-CL30R300(30W),HF-CL40R300(40W)
