- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- 85-265Vac
- Lamp Luminous Flux(lm):
- 1350
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- hofoled
- Model Number:
- HF-CL15R300
- Application:
- WAREHOUSE, Hotel,bathrom,corridor,bacony,stairs,spa,toilet
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- LED Light Source:
- Epistar
- Lamp Luminous Efficiency(lm/w):
- 80
- Warranty:
- 3 years
- Aluminum housing color:
- black,white,grey color
- power:
- 12w 15w 20w 30w 40w available
- Product Size:
- 300*300*85mm
- Install type:
- wall mounted,ceiling mounted,surface mounted
- Material:
- Die-casting aluminum, milky PC cover
- Power factor:
- 0.92
- Supply Ability:
- 10000 Piece/Pieces per Month

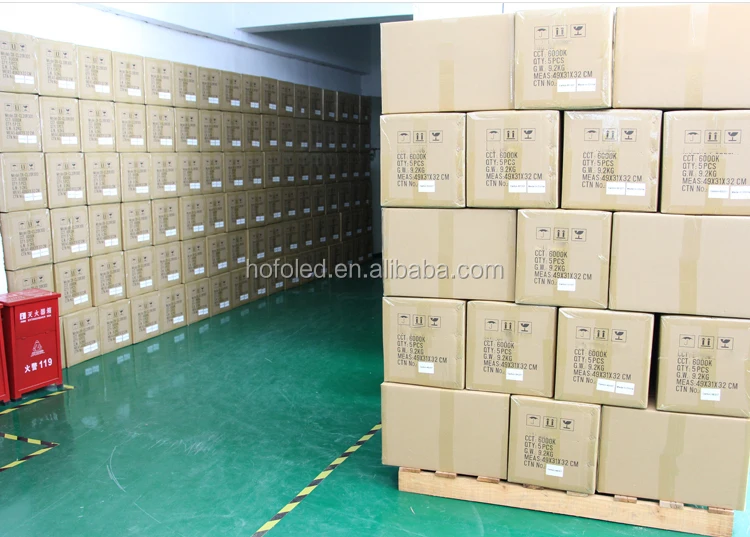

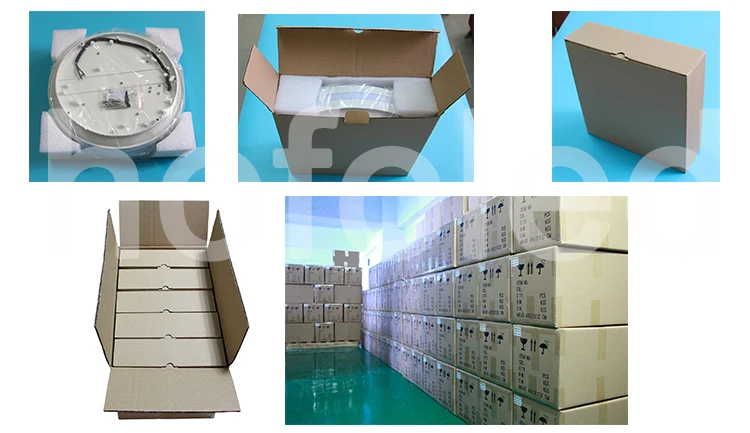

- Packaging Details
- normally innerbox then carton box,
If request color box is customized by customer
5 pcs/ Carton, 12 KG by dimension, G.W:10KG
- Port
- Shenzhen
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 300 >300 Est. Time(days) 7 To be negotiated
white round 15W ip65 led bulkhead light fitting
Model: HF-CL15W
Input voltage: 85-265VAC/50-60Hz
LED Resource: Epistar
Luminous: 1350 Lm
IP Rating: IP65 waterproof
IK Code: IK10
Beam angle: 120 degree
Color rendering index: Ra > 80
Power Factor > 0.90
Color temperature: Warm white:3000K, Nature white:4000K, Cool white:6000K
Environment temperature: -40/+60℃
Dimensions: 300 x 300 x 85 mm
Install type:Surface mounted,wall mounted
Certification:CE RoHS SAA
LED Ceiling Light Features:
1. Die-casting aluminum lamp body, excellent heat dissipation
2. IP65 waterproof, dustproof for indoor and outdoor lighting
3. Milky white PC cover, high impact resistance, IK10 approval
4. Stainless steel hexagon socket head cap screws
5. Can be installed with a motion sensor
6. Available for emergency function, 90minutes or 3 hours
7. Black / white / grey aluminum housing color available
8. Energy saving, not emitting UV and IR, no RF interference
Round LED Ceiling Light Photos:
can be offer 12W 15W 18W 20W
Instructions of emergency led ceiling light
1) Disconnect AC power before servicing.
2) Remove the cover, install well 4 holes of the base to the wall or ceiling.
3) Connect correctly L1 (Brown) , L2 (Black) Maintained lighting control switch and Neutral (blue), Earth(Green-Yellow),as shown:
4) After finished connection, AC power-on to test, S1 on, S2 off, both emergency 8W and normal 15W led ceiling light don’t work,
press the "TEST" switch(label),The 8W emergency LED lamps will work.
When S1 on, S2 on, the normal 15W led bulkhead light work.
S1 off, S2 no matter on or off, the 8W emergency work.
5) Charge time: 12-16 Hours, when indicator of charger on red is charging,"off" means full charged.
Emergency working time: 3-4 hours.
Certification: CE RoHS SAA IK10 IP65
Factory production flow & Aging area:
Warm white: 2800-3000K
Natural white: 4000-4500K
Cold white: 5500-6500K, other Color temperature is available
Ceiling LED Light Applications:
Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa room, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
1.Payment T/T , L/C , Paypal , Western Union. small order is 100%, for large amount,30% down payment, 70% balance before shipping
2. MOQ: 10 pcs, Discounts are offered based on order quantity.
3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days
4. Supply Ability: 50,000 Piece/Pieces per Month
5. Any inquire about our product will be reply in 8 hours
Q1. Can I get a sample of led Strip light for testing quality?
A: Yes, we welcome sample order to test and check quality. 0.5-1meter led strip is free to offer.
Q2. What about the lead time?
A:Samples needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our different products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, customers need to offer pictures or video to confirm the problems first
Thirdly,during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Our excellent sales and after-sales team are always at your service and will take good care of you, our valued customer,for more detail please send us inquire.
