Click on the image to view the original image
- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- AC100-277V
- Lamp Luminous Flux(lm):
- 1600
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- Hofoled
- Model Number:
- HF-CL20S300
- Application:
- HOTEL
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- LED Light Source:
- SMD2835
- Warranty:
- 3 years
- Power:
- 15w 20w 30w 40w available
- Product Size:
- 300*300*90mm
- IK Rating:
- IK10
- Material:
- Die-casting aluminum, milky PC cover
- Function:
- can add motion sensor/Detector/Dimmable
- Power factor:
- 0.95, no flicker
- Style:
- Square,round,circular,oval
- Product name:
- LED bulkhead light,led wall lamp,ip65 LED bunker light
- Supply Ability:
- 100000 Piece/Pieces per Month

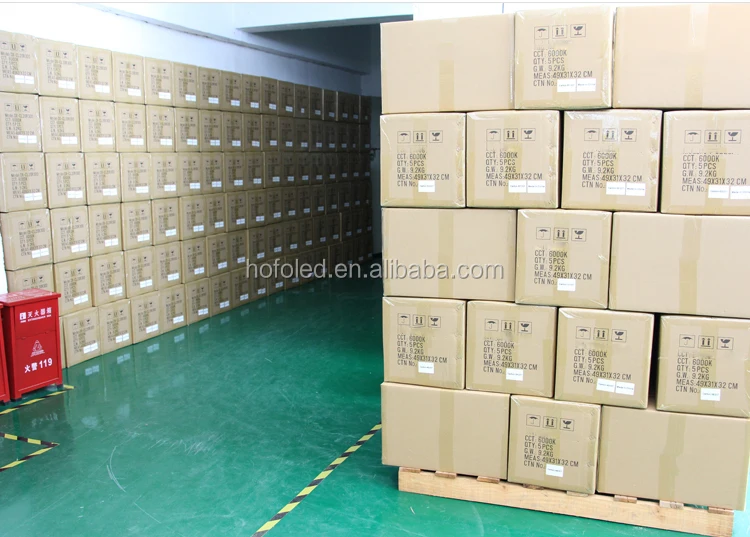

- Packaging Details
- led bunker light normally inner box, color box is customized by customer
5 pcs/ Carton, 12 KG by dimension, G.W:10 KG
- Port
- Shenzhen(Yantian port)
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 200 >200 Est. Time(days) 7 To be negotiated
LED waterproof modern wall lights outdoor
Same diameter 300mm for 20W 30W 40W, Black,White, Grey colors for choose
| Power Consumption | 20W | 30W | 40W |
| Luminous Flux | 1600Lm | 2400Lm | 3200Lm |
| Light Source | High Power SMD LED | ||
| CRI | 85 | ||
| Chip Type | SMD2835 | ||
| Driver Input Voltage | 85~265v AC 50 / 60Hz | ||
| Colour Temperature (CCT) | 2800K~3100K | 3800K~4250K | 6000K~6500K |
| Power Factor | 0.95 | ||
| Rated Life (L70) | 50,000Hrs | ||
| Working Temperature | -10C ~ 40C | ||
| Storage Temperature | -20C ~ 80C | ||
| Working Humidity | 5% ~ 95%RH | ||
| Lamp Housing | Aluminium Alloy | ||
| Lens | Poly Carbonate (PC) | ||
| Finish | Powder Coat Black | ||
| Dimensions | 300*300*90mm | ||
| Installation | Wall Mounted, Surface mounted | ||
| Installation | IP65 Waterproof | ||
| Additional | CE ROHS SAA IK10 Approved | ||
Wall mounted LED Ceiling Fitting Features:
1. Die-casting aluminum lamp body, excellent heat dissipation.
2. IP65 waterproof, dustproof for indoor and outdoor lighting
3. Milky white PC cover, high impact resistance, IK10 approval
4. Stainless steel hexagon socket head cap screws
5. Can be installed with a motion sensor, Detector,PIR sensor inside
6. Available for emergency function 1-4 hours, dimmable function
7. Black / white / grey aluminum housing color available
8. Energy saving, not emitting UV and IR, no RF interference
Die casting aluminum Ceiling LED Light Photos:
Model:HF-CL20S300(20W), HF-CL30S300(30W), HF-CL40S300(40W)
(Housing color:BLACK/WHITE/GREY)
Round LED ceiling bulkhead light,Model:HF-CL20R300(20W), HF-CL30R300(30W),HF-CL40R300(40W)
(Housing color: BLACK/WHITE/GREY)
Model:HF-CL20R275,20W (Housing color:BLACK/WHITE/GREY)
1. All models can add Microwave motion sensor
2.Available for emergency function
A. Emergency Power: 8~10W
B. Emergency response time:1~4 hours
3.Microwave motion sensor + emergency function
Hofoled led wall lamp led ceiling light Advantages:
60-70% energysaving, longer lifetime up to 50 000 hours than incandescent and fluorescent, instant
start: starts right away no matter the temperature or conditions, visual attractive with quality appearance,
material: Aluminum, no mercury contained, reduce carbon emissions, UV and IR free, producing minimum
heat,no additional fixtures needed, CE/RoHS/SAA approval
No flicker, lighten without black spot, high PF>0.95
Warm white: 2800-3200K
Natural white: 4000-4500K
Cold white: 6000-6500K
Ceiling LED Light Applications:
Bathroom, Kitchen, Toilet, Corridor, School, Living room, Bedroom, Spa room, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
Payment Terms:
1.Payment T/T , L/C , Paypal , Western Union. small order is 100%, for large amount,30% down payment, 70% balance before shipping
2. MOQ: 10 pcs, Discounts are offered based on order quantity.
3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days
4. Supply Ability: 100,000 Piece/Pieces per Month
5. Any inquire about our product will be reply in 8 hours
Company Information:
Shenzhen Hofo Technology Co.,Limited is a leader and one of the professional manufacturers which specializes in the development, production and marketing of various kinds of LED lighting. With our semiconductor lighting technology, we aim to provide our customers with high efficiency, energy-saving and stable encapsulated LED lights. Hofo various products range fromled high bay lights, led street lights,led flood lights, led tunnel lights, led panel light, as well as led ceiling lights, led tube, led strip etc.
Our excellent sales and after-sales team are always at your service and will take good care of you, our valued customer,for more detail please send us inquire.
