Click on the image to view the original image
- Light Source:
- LED
- Item Type:
- Outdoor Wall Lights
- LED Light Source:
- SMD2835
- Input Voltage(V):
- AC100-277V
- Lamp Luminous Flux(lm):
- 1800
- CRI (Ra>):
- 80
- Beam Angle(°):
- 120
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- Hofoled
- Model Number:
- HF-CL20R300
- Application:
- Theme Park, Corridor, Stairs, Balcony, bathroom,toilet,hotel
- Product Size:
- 300*300*85mm
- Housing color:
- black,white,grey color
- warranty:
- 3 years
- Function:
- can add motion sensor/Emergency 1-3 hours
- material:
- Die-casting aluminum, milky PC cover
- IK rating:
- IK10
- Power Factor(PF>):
- 0.90
- Power:
- 15w 20w 30w 40w
- Product name:
- outdoor wall lights, led bulkhead light
- Supply Ability:
- 100000 Piece/Pieces per Month

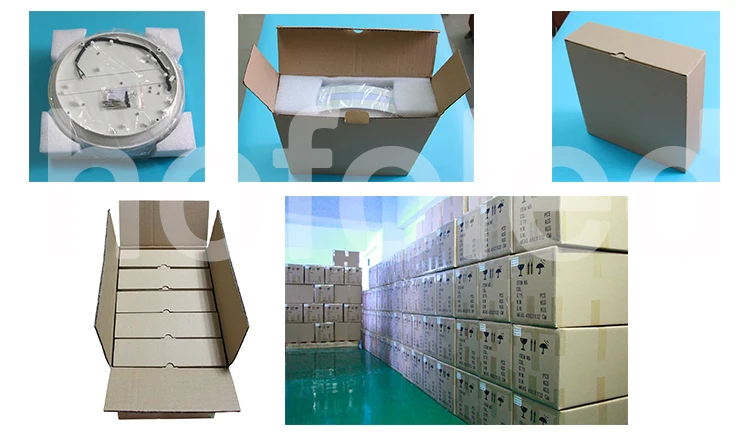

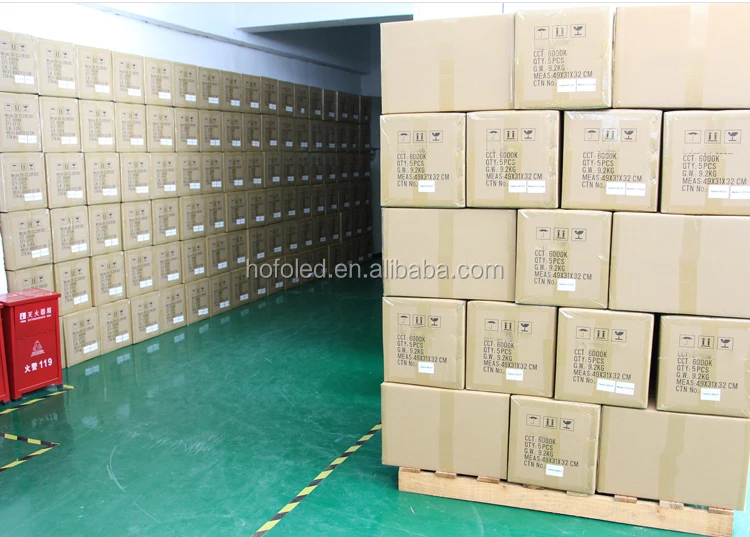

- Packaging Details
- Outdoor wall lights, normally inner box, outer carton box
5 pcs/ Carton, 12 KG by dimension, G.W: 10 KG
1pcs by dimension for shipping 3KG
- Port
- Shenzhen
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 200 >200 Est. Time(days) 7 To be negotiated
Housing color:White
Housing color:Black
Housing Color: Grey
Outdoor Wall Lights Features
1. Die-casting aluminum lamp body, excellent heat dissipation
2. IP65 waterproof, dustproof for indoor and outdoor lighting
3. Milky white PC cover, high impact resistance, IK10 approval
4. 304 Stainless steel hexagon socket head cap screws
5. White / Black / Greyaluminum housing color available
6. Can built-in motion sensor, Emergency time 1-3 hours
Material
Housing: die-cast Aluminum
Cover: PC high impact resistance.
Waterproof gasket to ensure IP65
304 Stainless steel screws
LED Chip & Driver
Epistar Chip: 26-28LM/LED
CRI > 80, LM80 test Approval.
3 years warranty, IP67 driver
Power Factor >0.92
Glow Wire
Glow wire test at 850 ℃ pass NF EN 60695-2-1, VDE approval. UGR<19
SDCM value of the led that we use (Mac Adam Ellips - binning) <3 or 5.
Other LED Wall Lights from our factory
Square in size:300*300*90mm, Model: HF-CL20S300 (20W), HF-CL30S300(30W),HF-CL40S300(40W)
Round in size:275*275*80mm, Model: HF-CL15R275 (15W), HF-CL20R275(20W)
1. Motion(microwave) Sensor Function: (only sensor)
Microwave Motion Sensor are available to add inside the led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light on detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.
Detection area: from 2m to 10m
Hold time: 5s, 30s, 90s, 3min, 20min, 30min
Daylight sensor: 2LUX, 10LUX, 25LUX, 50LUX, Disable
2. Emergency function:(Emergency or Emergency+Sensor)
Emergency power: 8 W
Emergency Time: 1Hour - 3 Hours
Lithium Battery Capacity
With main power AC85-265V, we offer 15W and 20W.
When power cut off, with emergency power 8W , running time: 1hours to 3 hours
Charge time: 8-16 Hours, when indicator of charger on red is charging,off means full charged.
LED Wall Lights widely applicate in below places
Bathroom,Corridor, Stairs, Kitchen, Toilet, School, Living room, Bedroom, Spa room, Hotel
Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store
Shenzhen Hofo Technology Co.,Limited various products range from led wall light, led high bay lights, led street lights,led flood lights, led tunnel lights, led panel light, as well as led ceiling lights, led tube, led strip etc. Having high skills of R&D team, We got the license of ISO9001:2008, all products has pass CE, RoHS SAA approval etc.
If interested in our products, please do not hesitate to send us inquire.
Our excellent sales are always at your service.
Payment Terms
Payment T/T , L/C , Paypal , Western Union
Small order is 100%, for large amount,30% down payment, 70% balance before shipping
Delivery
Delivery time: Sample in 3- 5 working days, large order 7-15 working days
By express DHL,UPS,FedEx,TNE, by Airfreight,by Sea
Q1. Can I have a sample order for led wall light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production lead time: 7-15 days
Q3. Do you have any MOQ limit for led light order?
A: MOQ: 5pc for sample checking is available, 5pcs/carton
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, customers need to offer pictures or video to confirm the problems first
Thirdly,during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
