Click on the image to view the original image
- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Surface Mounted
- Input Voltage(V):
- 85-265
- Lamp Luminous Flux(lm):
- 2700
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, RoHS, SAA
- Place of Origin:
- Guangdong, China
- Brand Name:
- Hofoled
- Model Number:
- HF-CL30R300
- Application:
- HOTEL, Hotel Etc
- Base Material:
- Aluminum
- Cover Material:
- Plastic
- Warranty(Year):
- 3-YEAR
- CCT:
- 3000K/ 4000K/ 6000K
- PF:
- >0.9
- Size:
- 300*300*85mm
- Color:
- Black,White
- Material:
- Die-casting Aluminum
- Installation:
- Wall Surface Mounted
- LED Chip:
- Epistar
- Type:
- Modern Surface Ceiling Light
- Shape:
- Round Shape
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 33X33X12 cm
- Single gross weight:
- 1.7 kg
- Package Type:
- Box size:330*330*120mm N.W/G.W: 1.5KG /1.7KG Carton:510*330*340mm G.W :9.5KG 5pcs/Carton

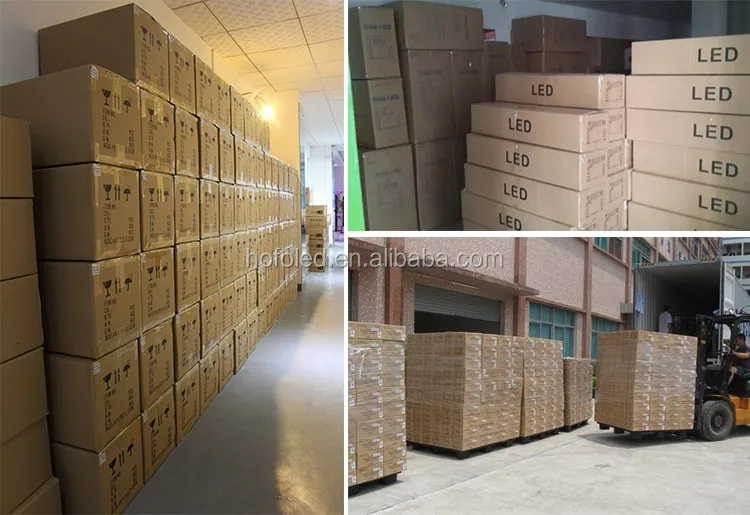

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 7 12 15 To be negotiated
- 1. Die-casting aluminum lamp body, excellent heat dissipation
- 2. Milky white PC cover, high impact resistance, IK10 approval
- 3. IP65 waterproof, dustproof for indoor and outdoor lighting
- 4. 304 stainless steel hexagon socket head cap screws
- 5. Can add with 0-100% microwave sensor, dimming sensor sensor
- 6. emergency function 3 hours
- 7. Black/white/grey aluminum housing color available
- 8. Glow wire test at 850 degrees pass NF EN 60698-2-1, VDE approval
- 9. Install style: Wall mounted; Surface mounted
- 10. Certification: CE/RoHS/SAA/IP65/IK10
Model | HF-CL30R300 |
Power | 30 Watt |
Luminous Flux | 2700Lm |
Luminous efficiency | 90LM/W |
LED Chip | SMD 2835 |
Input Voltage | AC100-277V/50-60 Hz |
Output Voltage | 30V |
Output Current | 0.6A |
Lighting Angle | 180° |
Material | Aluminum housing,milky PC cover |
Color Rendering Index | Ra>80 |
Power Factor | > 0.90 |
Environment Temperature | -40/+60℃ |
IP Rating | IP65 |
Environment Humidity | < 95% |
Color Temperature | Warm Whit:2800-3200K |
Nature White:4000-4500K | |
Cool White:6000-6500K | |
Product size | 300*300*85mm |
Inner box size | 310*310*100mm |
Carton size(5pcs) | 510*340*340mm |
N.W/G.W | 1.6KG/1.8KG |
G.W/Carton | 9.5 KG(5pcs a carton) |
Certification | CE RoHS SAA IK10 |
1. Can add Microwave Motion Sensor Function
Microwave Motion Sensor are available to add inside the led ceiling light, The Microwave Motion Sensor is an innovative motion sensor, switch on the light on detection of movement, and switch off after a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient natural light.
Detection area: from 2m to 10m
Hold time: 5s, 30s, 90s, 3min, 20min, 30min
Daylight sensor: 2LUX, 10LUX, 25LUX, 50LUX, Disable
2. Can add emergency function:
Input Voltage: AC 100-277V 50/60Hz Standard Power: 20W
Emergency Power: 8W(SMD 2835) Continuous Illumination: 180 minutes
Battery: LIR 7.4V 4400MAH Recharging time >24 hours
Over-discharge protection: Yes Battery warranty: 2 years
3. Motion Sensor + Emergency function for complete use
4. Dimmable Function
Flick free and soft dimming in any power or brightness.Built-in dual independent constant
current output,through a total anode connection to achieve stepless,dimming and color
temperature adjustment function.
1).1-10V PWM dimmable
2).Triac dimmable
3).DALI dimmable
4).CCT adjustment dimmable
1.Restaurant / Hotel /Supermarket
2.Showroom / Meeting rooms
3.Factories & Offices
4.Commercial complexes / exhibition hall
5.School, Colleges & Universities
6.Hospital / Classrooms / Underground Park
7.Bathroom, Kitchen, Toilet, Corridor, Living room, Bedroom, Spa room, Hotel, Hospital, Showcase, Warehouse, Supermarket, Department store.
8.Places where need energy saving and high color rendering index lighting
Q1. Can I have a sample order for led light?
A: Yes, you are welcome to take a trial for testing. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample 3-5 days, mass production 7-15 days.
Q3. How do you ship the goods and how long does it take to arrive?
A: By DHL, UPS, FedEx or TNT for small order. It usually takes 3-5 days. By Air and sea shipping optional.
Q4. Is it OK to print my logo on led light product?
A: Yes, custom service available.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-YEAR warranty service to make u rest assured.
