- Light Source:
- LED
- Item Type:
- Outdoor Wall Lights
- LED Light Source:
- Epistar
- Input Voltage(V):
- AC100-277V
- Lamp Luminous Flux(lm):
- 1350LM
- CRI (Ra>):
- 80
- Beam Angle(°):
- 120
- Working Temperature(℃):
- -30 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD, RoHS, SAA, CE RoHS SAA IP65 IK10
- Place of Origin:
- Guangdong, China
- Brand Name:
- Hofo
- Model Number:
- HF-CL15W
- Application:
- Garden
- Luminous efficiency:
- 90LM/W
- Material:
- Die cast aluminum body,PC cover
- Color Temperature:
- Warm Whit:2800-3000K/Nature White:4000-4500K/Cool White:6000-6500K
- Product size:
- 285*285*100mm
- Carton size(5pcs):
- 470*320*320mm
- N.W/G.W:
- 1.6KG/9.0KG
- Color Temperature(CCT):
- 3000K 4000K 6000K
- Shape:
- Semicircle
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 31X31X12 cm
- Single gross weight:
- 1.7 kg
- Package Type:
- Box Size:310*310*120mm N.W/G.W:1.6KG/1.7KG Carton:470*320*320mm G.W:9.0KG 5pcs/Carton

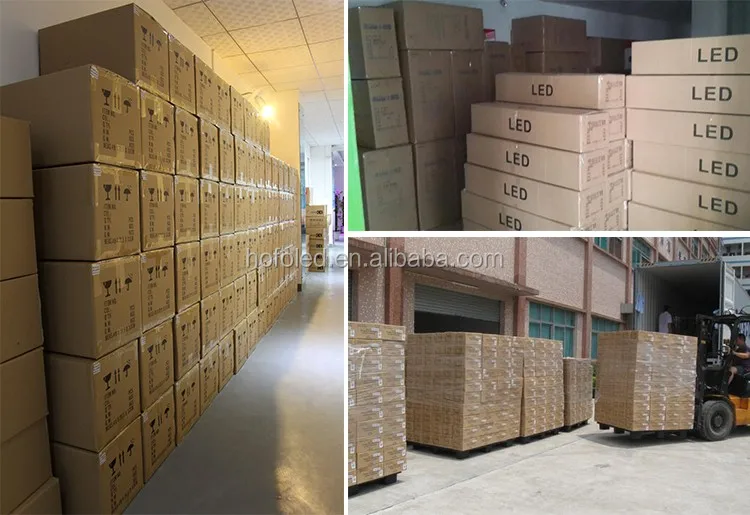

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 7 12 1500 To be negotiated
1. Die-casting aluminum lamp body,excellent heat dissipation
2. Miky white PC cover,high impact resistance,IK10 approval
3. IP65 waterproof,dustproof for indoor and outdoor lighting
4. 304 stainless steel hexagon socket head cap screws
5. Can add with 0-100% microwave sensor, dimming sensor,RF sensor
6. Available for emergency function 3 hours
7. Black/white/grey aluminum housing color available
8. Glow wire test at 850 degrees pass NF EN 60698-2-1,VDE approval
9. Install style:Wall mounted, Surface mounted
10.Certification:CE/RoHS/SAA/IP65/IK10
Model | HF-CL15W |
Power | 15 Watt |
Luminous Flux | 1350Lm |
Luminous efficiency | 90LM/W |
LED Chip | Epistar SMD |
Input Voltage | AC100-277V/50-60 Hz |
Input Current | 0.2A(230V) |
Output Voltage | 30-36V |
Output Current | 0.45A |
Lighting Angle | 120° |
Material | Aluminum housing,PC cover |
Color Rendering Index | Ra>80 |
Power Factor | > 0.90 |
Environment Temperature | -40/+60℃ |
IP Rating | IP65 |
Color Temperature | Warm Whit:2800-3200K |
Nature White:4000-4500K | |
Cool White:6000-6500K | |
Product size | 275*275*80mm |
Inner box size | 285*285*100mm |
Carton size(5pcs) | 470*320*320mm |
N.W/G.W | 1.6KG/9.0KG |
Certification | CE RoHS SAA IP65 IK10 |
1.Restaurant / Hotel /Supermarket
2.Showroom / Meeting rooms
3.Factories & Offices
4.Commercial complexes / exhibition hall
5.School, Colleges & Universities
6.Hospital / Classrooms / Underground Park
7.Bathroom,Kitchen,Toilet, Corridor,Living room,Bedroom,Spa room,Hotel,Hospital,Showcase,Warehouse,Supermarket, Department store.
8.Places where need energy saving and high color rendering index lighting
Q1. Can I have a sample order for led light?
A: Yes, you are welcome to take a trial for testing. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample 3-5 days, mass production 7-15 days.
Q3. How do you ship the goods and how long does it take to arrive?
A: By DHL, UPS, FedEx or TNT for small order. It usually takes 3-5 days. By Air and sea shipping optional.
Q4. Is it OK to print my logo on led light product?
A: Yes, custom service available.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-YEAR warranty service to make u rest assured.
