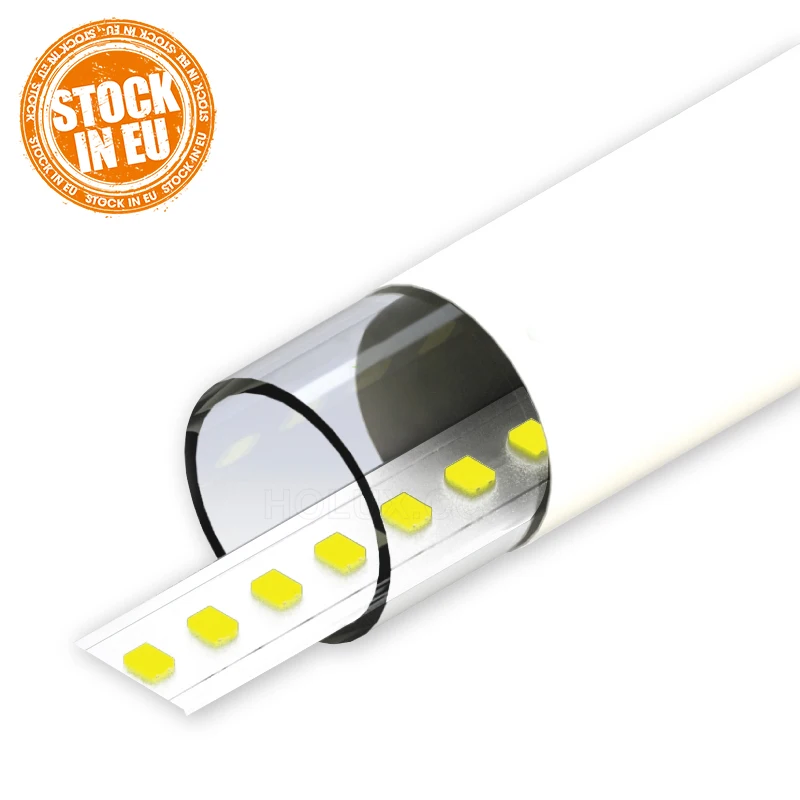

OEM 50000 lifespan t8 led tube 4000 lumens
SPECIFICATION:
| Standard T8 Series(For KVG with starter+AC220-240V) | ||||||||||||
| Model Number | Dimension | Wattage | Input Voltage | Light Efficiency | Luminous Flux(lm) | LED Type | Beam Angle | Socket | CCT | PF | CRI | Energy Efficiency Classes |
| T8-L06-09A1 | Φ26x602mm | 9w | 220 - 240v | 100lm/w | typ.900lm | SMD 2835 | 320 | G13 | 2700K - 6500K | >0.9 | >80 | A+ |
| T8-L12-18A1 | Φ26×1212mm | 18w | typ.1800lm | |||||||||
| T8-L15-24A1 | Φ26×1512mm | 24w | typ.2400lm | |||||||||
| T8-L06-09A2 | Φ26x602mm | 9w | 120lm/w | typ.1080lm | A++ | |||||||
| T8-L12-18A2 | Φ26×1212mm | 18w | typ.2160lm | |||||||||
| T8-L15-24A2 | Φ26×1512mm | 24w | typ.2880lm | |||||||||
| T8-L06-09B1 | Φ26x602mm | 9w | 140lm/w | typ.1260lm | A++ | |||||||
| T8-L12-18B1 | Φ26×1212mm | 18w | typ.2520lm | |||||||||
| T8-L15-24B1 | Φ26×1512mm | 24w | typ.3360lm | |||||||||
| T8-L06-09C1 | Φ26x602mm | 9w | 150lm/w | typ.1350lm | A++ | |||||||
| T8-L12-18C1 | Φ26×1212mm | 18w | typ.2610lm | |||||||||
| T8-L15-24C1 | Φ26×1512mm | 24w | typ.3600lm | |||||||||
For Choice: Frosted Glass or PET Film + Transparent glass
Q1:Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
We also can ship samples from our warehouse in Germany!
Q2:Is it possible to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.02%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4. Can you supply the special lighting design?
A:Sure, LED lighting design including the Dialux simunlation,3D products renderings etc.
