1. led 100watt optical lens 60 degree diameter 40mm for led high bay light
2.Size:100*40mm
3.Material: Glass,Transparent
4.Beam Angle:60degree
Item No. | Type | Size(mm) | Edge thickness | Rim width | Material | Color | Beam Angle | Transmittance |
SL-GL-7830A | Plano-convex | 78*30 | 3.85mm | 3.5mm | Glass | Transparent | 90deg. | >94% |
SL-GL7830B | Inside Convex | 78*30 | 3.85mm | 3.5mm | Glass | Transparent | 90deg. | >94% |
SL-GL7830 | Inside Convex | 78*30 | 3.85mm | 3.5mm | Glass | Transparent | 120deg. | >94% |
SL-GL9132 | xx | 91*32 | xx | xx | Glass | Transparent | 60-120deg. | >94% |
Above glass lens using for 30-100w high power led,high bay light,explosion proof light,automobile lamp or other lights | ||||||||
SL-GL10035 | xx | 100*35 | xx | xx | Glass | Transparent | 90deg/100deg | >94% |
SL-GL10040 | xx | 100*40 | xx | xx | Glass | Transparent | 60degee | >94% |
| SL-GL100 | xx | 100 | xx | xx | Glass | Transparent | 120degree | >94% |
Above glass lens using for 30-300w high power led,high bay light,explosion proof light,automobile lamp or other lights | ||||||||
SL-GL5022 | xx | 50*22 | 2.6-2.7mm | 1.2mm | Glass | Transparent | 60-90deg. | >94% |
Above glass lens using for below 30w automobile lamp,spotlight,street light,flood light or other lights | ||||||||
SL-GL7830 | xx | 78*30 | 3.85mm | 3.5mm | Glass | Transparent | 75*120deg. | >94% |
SL-GL9036 | xx | 90*36 | xx | xx | Glass | Transparent | 120*60deg. | >94% |
SL-GL9331 | xx | 93*31 | xx | xx | Glass | Transparent | 120*60deg. | >94% |
SL-GL10635 | xx | 106*35 | xx | xx | Glass | Transparent | 75*135deg. | >94% |
SL-GL1078132 | xx | 107*81*32 | xx | xx | Glass | Transparent | 135*65deg. | >94% |
Above glass lens using for below 30w-100w led street light | ||||||||
Features
1. Rich optical parameters (optional),with high light transmittance (3 mm when the thickness of the penetration rate of 97%),high temperature resistant.
2. Although lens uniform luminous point range is not big, but it"s good for photometric.
3.Belong to a professional lens. The spherical mirror surface polishing,uniform light, light transmittance as high as 94%, is the more commonly used in lens design.
4. led 100watt optical lens 60 degree diameter 40mm for led high bay light
Application
All LED Light lens,such as led high bay light,street light,industrial light or other lighting products.

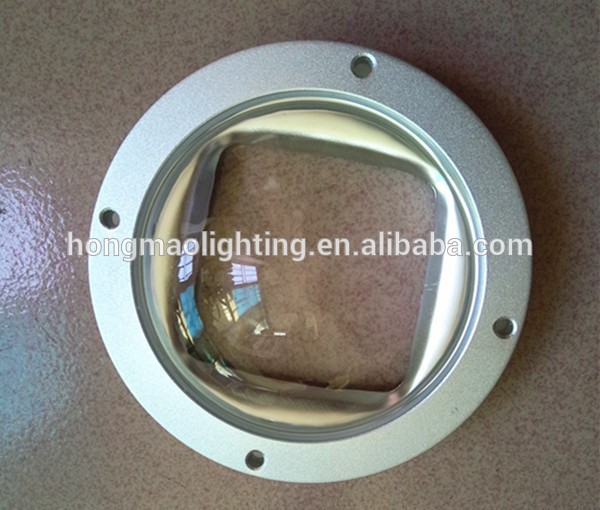

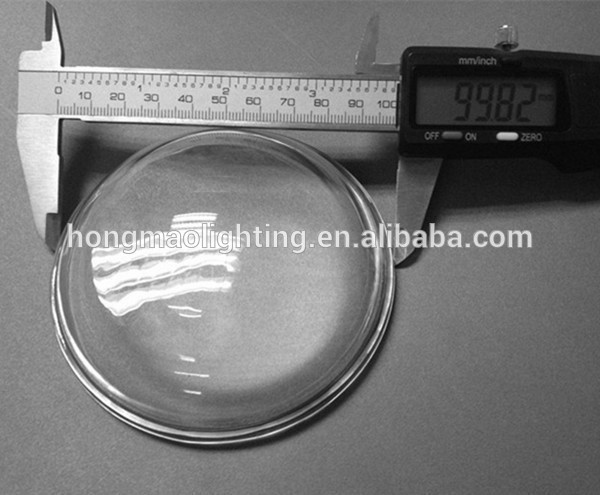

Picture Show
