Home > Products > 220V Double-side Ceiling Recessed Autotesting LED Emergency Exit Sign

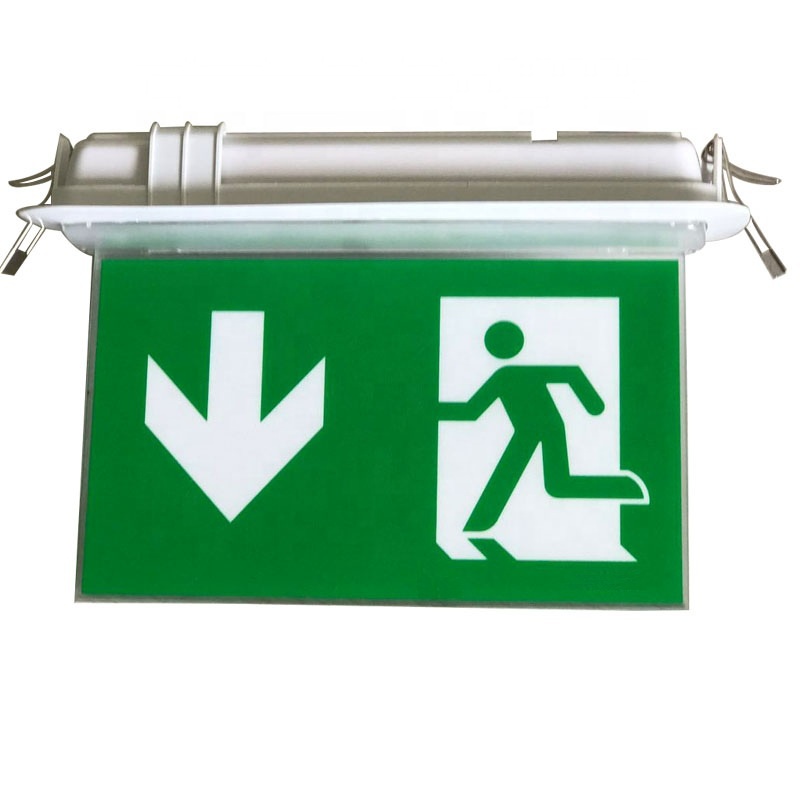

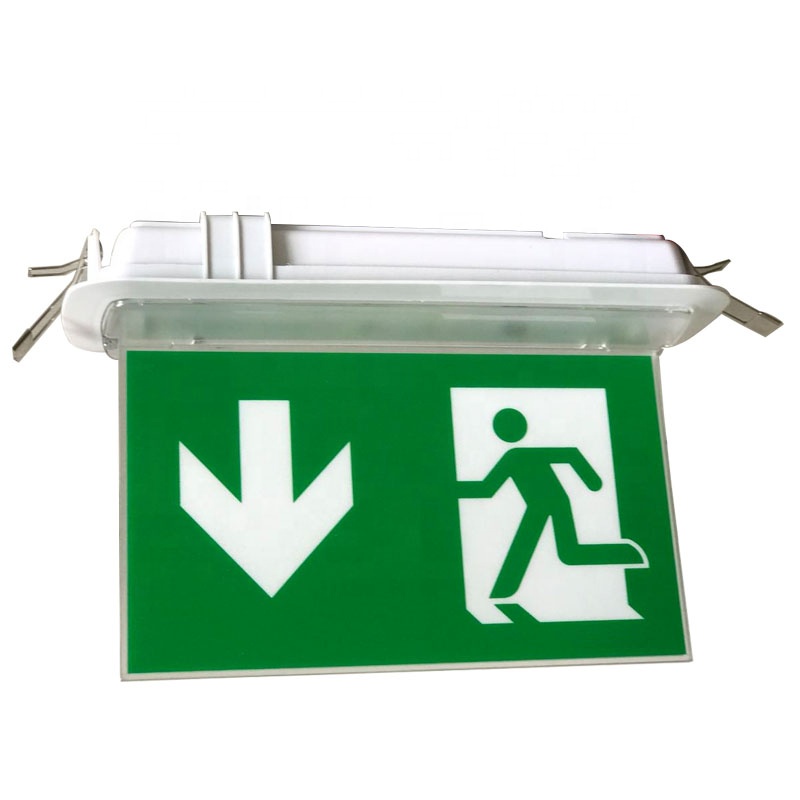

220V Double-side Ceiling Recessed Autotesting LED Emergency Exit Sign
Click on the image to view the original image
Product: views:7220V Double-side Ceiling Recessed Autotesting LED Emergency Exit Sign
Branch: Zhuiming
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 02:46
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Zhuiming
Bulb Type:
LED
Battery Type:
Ni-Cd
Material:
Plastic, ABS Body, PS Diffuser, PP outer casing
Usage:
Building Emergency Use
Certification:
CE
Specifications:
6PCS SMD LED
Operation:
Non-maintain
Lamp type:
6 pcs SMD 5730 LED
Lumen:
200 lm
Battery:
Ni-Cd battery 3.6V1.8Ah
Duration Time:
3 hours
product Size:
238mm*80mm*40mm/0.38kg
Installation way:
Ceiling recessed
Warranty:
3 Years
Charge time:
24 Hours
Supply Ability
Supply Ability:
3000 Unit/Units per Day we can supply 3000pcs led emergency light each day
Packaging & Delivery
Packaging Details
Standard Export Carton
50PCS/CTN
Carton Size: 49*27.5*56.5cm
Port
Shanghai or Ningbo

220V Double-side Ceiling Recessed Autotesting LED Emergency Exit Sign

Product Description

L116N-E













Product feature:



This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,our emergency light has high lumens,long lifetime, and low energy dissipation feature.



Specification:



Non-maintained

Input Voltage

220V-240V 50/60Hz

Lamp type

6 pcs SMD 5730 LED

Battery

Nickel-Cadmium Battery 3.6V 1.8Ah

Indicator

Green LED--AC power on, Red LED--charging

Duration Time

More than 3 hours

Construction

Fire Retardant ABS Casing and Plate; PS Diffuser

IP Rate

IP20

Installation

Ceiling Recessed Mounted

Weight

0.38KG

Size

238mm*80mm*40mm Tolerance ±0.03mm



Product Pictures:



Package:

Package

1 Set in 1 Inner Box

50 Sets in 1 Outer Carton

Inner Box Size

270*105*45mm

Outer Carton Size

49*27.5*56.5mm

Gross Weight

23KG



Installation step:

1. Open the product ( Pls. use tiny slot type screwdriver or flats tools to tilted

product’s surface gap, make the diffuser separate from the bottom case, and take out the middle plate.

2. Use setscrew to fasten the bottom case on the wall.

3. Put AC wire through the bottom case hole, connect the main circuit board on L,N

    connect terminal

4. Install the middle plate.(Make the indicator lamp through middle plate hold.)

5. Close the diffuser(Fasten with the bottom case)

6. Connect with the AC power



Application:

This product is used in all kind of building, when power off, emergency light can

lighting automatically. Mainly used in Mall, hotel, office.



Company Information

1. Established in 2008, Hangzhou, China

2. Four Production Lines, workshop occupies 1700m2, warehours occupies 1100m2

3. Main Products

  1. Emergency Lights
  2. Exit Sign Lights
  3. Emergency Power Supply




Certifications



Our Services

1.Any Inquiries will be replied within 24 hours.

2. Professional manufacturer.

3. OEM/ODM available:

1)Silk print logo on the product
2)Customized products
3)Customized package

4. High quality, fashion designs, reasonable & competitive price, fast lead time.

5. After-sale service

1)All products will be strictly quality checked before packing.
2)All products will be well packed before shipping.
3)All products and most of accessories have 3 year warranty.

6. Payment

You can pay for the order via: TT, Western Union,L/C







Exhibition



FAQ
:
1. Is it acceptable for OEM and ODM?
Yes, both ODM and OEM are acceptable.
2. How about the life span of LED Lamp?
Under normal condition, it is about 50000h.
3.What can be customized?
1.) Battery
2.) Package
3.) Emergency Time: Normally, it is 3 hours. it can be customzied to be 1.5h, 2h.
