- Place of Origin:
- Zhejiang, China
- Brand Name:
- ZHUI MING
- Bulb Type:
- LED
- Battery Type:
- Ni-Cd 3.6V0.6AH
- Material:
- Aluminum End Cap, A crylic Plate
- Usage:
- OFFICE BUILDING, SHOPPING MALL
- Certification:
- CE
- Specifications:
- 15pcs SMD LED
- Duration time:
- 3 hours
- Operation:
- Maintained
- Battery:
- Nickel-Cadmium Battery 3.6V/0.6AH
- Input Voltage:
- 220V-240V 50/60Hz
- Indicator:
- Green LED Indicates Charging
- Construction:
- Aluminum End Cap, Acrylic Plate
- weight:
- 0.78kg
- Size:
- 320mm*245mm*34mm Tolerance ±0.03mm
- Warranty:
- 3 Years
- Charge time:
- 24h
- Supply Ability:
- 3000 Set/Sets per Day
- Packaging Details
- 1 Set in 1 Inner Box, 10 Sets in 1 Outer Carton
Inner box size: 325x250x39mm
Carton size: 42x34x26.5cm
- Port
- NINGBO OR SHANGHAI

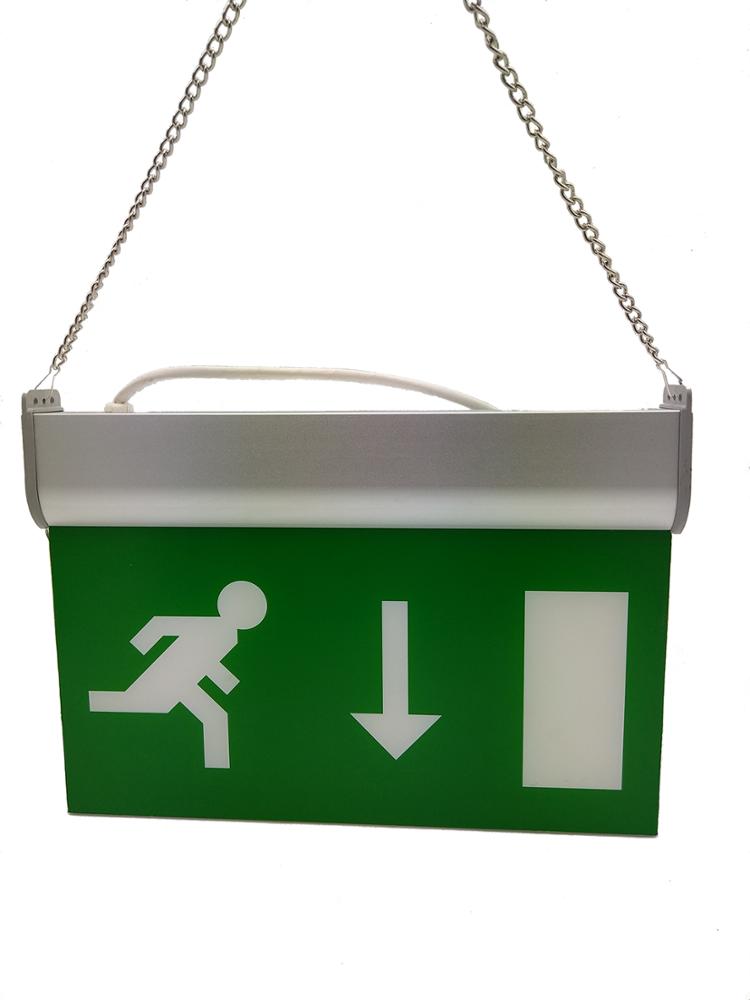

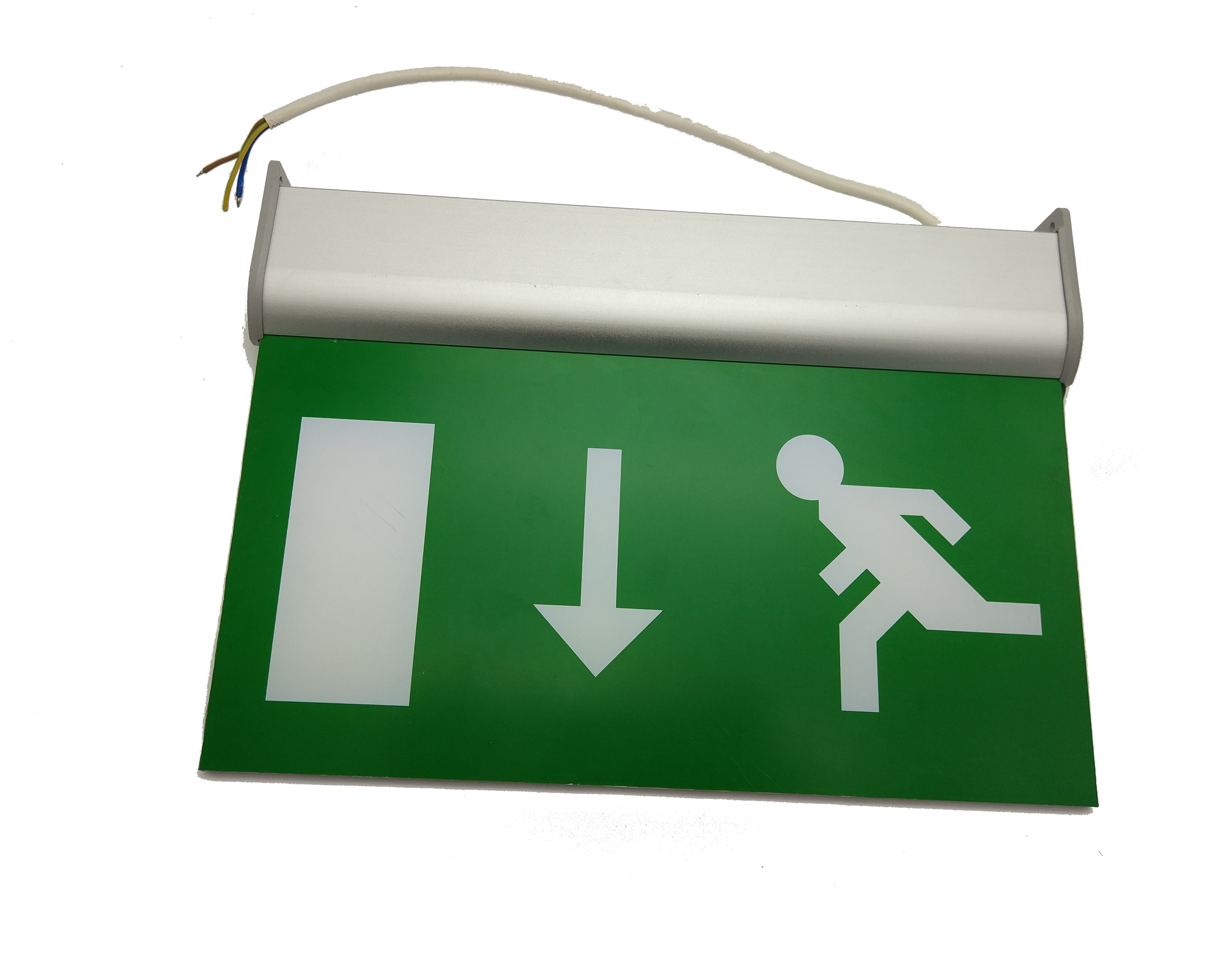

Double-side LED Emergency Exit Sign With 3 Years Warranty
Function
Automatically lights when a building experiences a sudden AC power failure.
Application
High residential buildings & Commercial buildings
- Dormitories/Teaching Buildings
- Office Buildings
- Government Buildings
- Apartment Buildings/Hotels
- Shopping Malls/Super Markets
- Banks
- Hospitals
Advantages & Features
-Easy installation
-Lightweight and small size
-Exquisite Body
-High Water-proof Level
-High Luminous Flux & Efficacy
-Test button for easy regular check
-International standard size
-Over 3 hours emergency time
-Easy wall-hanging installation/Flexible installation
-Energy Saving
-CE & RoHs Standards
-Customization available
-Wide range application
-Rotary Twin Lighting Heads
-Long Emergency Time
Detailed pictures
Parameters
Operation | Maintained |
Input Voltage | 220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 15pcs SMD 3014 |
Battery Capacity | Ni-Cad, 3.6V/0.6Ah |
Indicator | Green LED Indicates Charging |
Emergency Time | 3h |
Material | Aluminum End Cap & Acrylic Plate |
Size/ Weight | 320mm×245mm×34mm/0.8kg |
Working Temperature | -10°C to 55°C |
Installation | Ceiling Suspended & Wall Surface Mounted |
Customization | Battery, Duration Time, Package |
1. Standard Export Packing
Package | 1 set in Inner Box, 10 sets in 1 Outer Carton |
Outer Carton Size | 42*34*26.5CM |
Gross Weight | 10kg |
Net Weight | 8kg |
2. Customized Packing
MOQ: 3000PCS
1. Established in 2008, Hangzhou, China
2. Four Production Lines, workshop occupies 1700m2, warehours occupies 1100m2
3. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
1.Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 50000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes. Both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6. What can be customized?
1)Battery
2)Package
3)Emergency time. Usually, it is 3 hours. Can be customized to 1.5h, 2h, 4.5h and so on.
4)Other requirements from customers.
