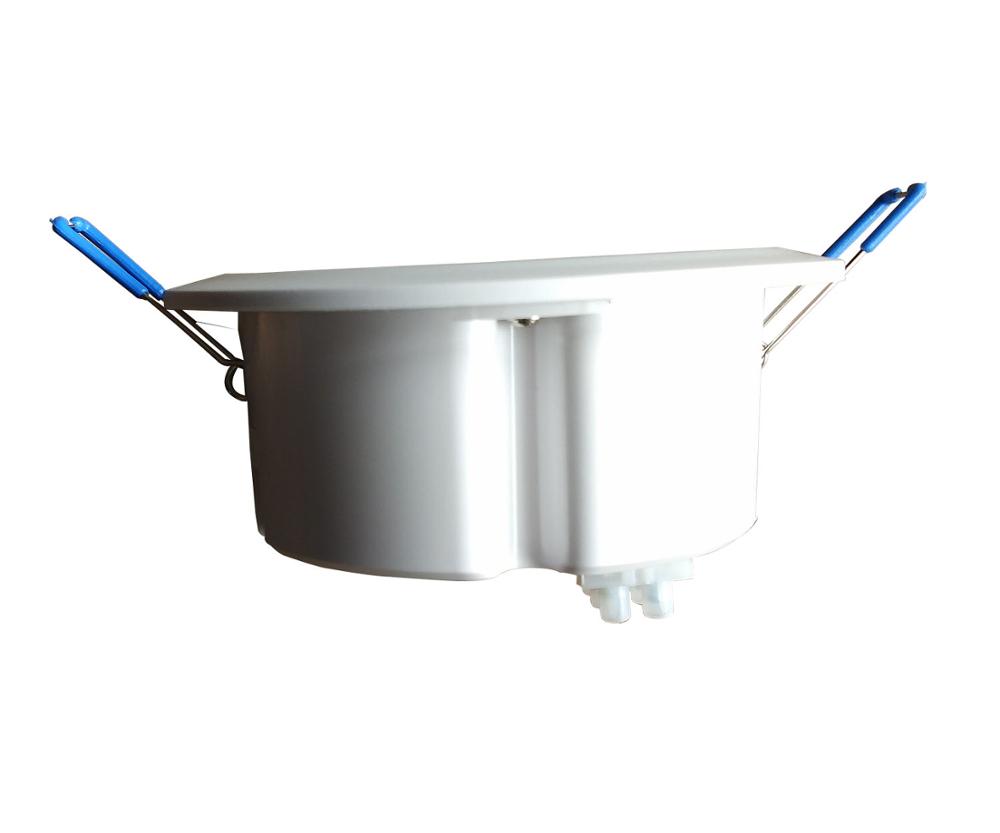

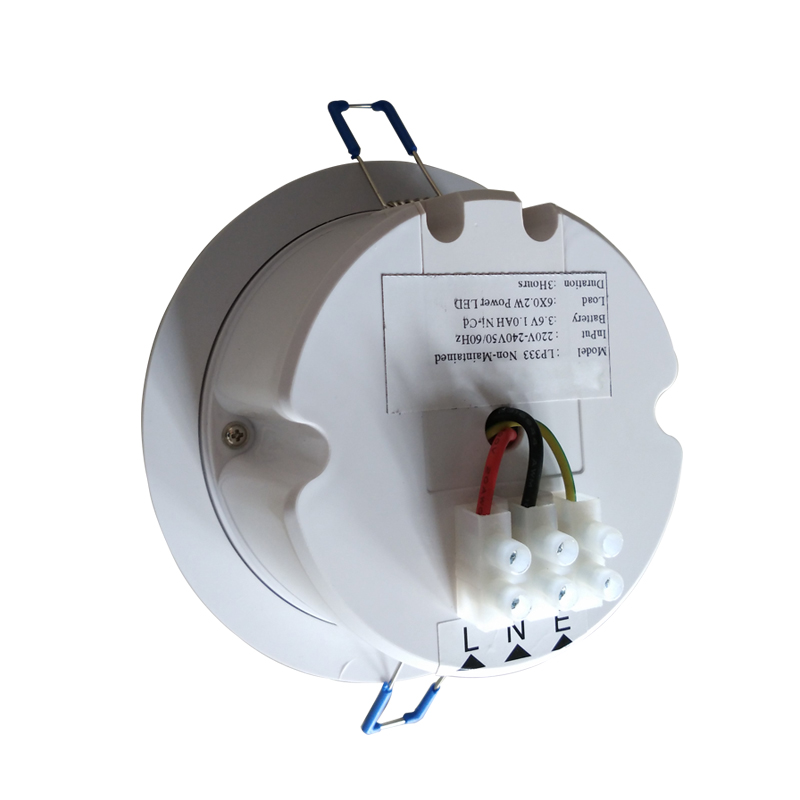

IP20 Wall Surface LED Emergency Light
Defination
An emergency light is a battery-backed lighting device that comes on automatically when a building experiences a power outage.
Function
Over 3hrs emergency lighting after sudden blackout
Application
For shoping malls, office buildings,goverment buildings, teaching buildings, Domintaries and so on.
Parameters
Operation | Non-maintained |
Input Voltage | 220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 6pcs SMD LED |
Battery | Nickel-Cadmium Battery 3.6V 1.0Ah |
Indicator | Green led --Charging |
Duration Time | More than 3 hours |
Construction | ABS Casing |
IP Rate | IP20 |
Installation | Wall Surface Mounted |
Charging Time | 24 Hours |
Working Temperature | -10ºC to 55ºC |
Size | 118mm*65mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
1.Any Inquiries will be replied within 24 hours.
2. Professional manufacturer.
3. OEM/ODM available:
4. High quality, fashion designs, reasonable & competitive price, fast lead time.
5. After-sale service
Accessories Lead-acid battery is 6 month and Fluorescent T5 tube is 3 month.
6. Payment
You can pay for the order via: TT, Western Union, MoneyGram, L/C
1. Established in 2008
2. Located in Hangzhou, China
3. Office:
4. Main Products
- Emergency Lights
- Exit Sign Lights
- Emergency Power Supply
5. Certificates
- SGS Factory
- CE & Rohs
- IP65
6. Equipments
- Intergrating Spheres: to measure brightness(luminous flux)
- Wave Soldering Machine: to solder PCBs
- Aging Test Board: to test products performance and select good products
- Constant Temperature Humidity Chamber: to simulate different environment condition and test products
1. What is the main differences of Fluorescent lamp and LED?
Main difference is power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.
The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 5000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes, both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
6.What can be customized?
Battery
Package
Emergency time.
Other requirements from cutomers. Of course, the engineers will evaluate first.
